Air Charging of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Air Charging

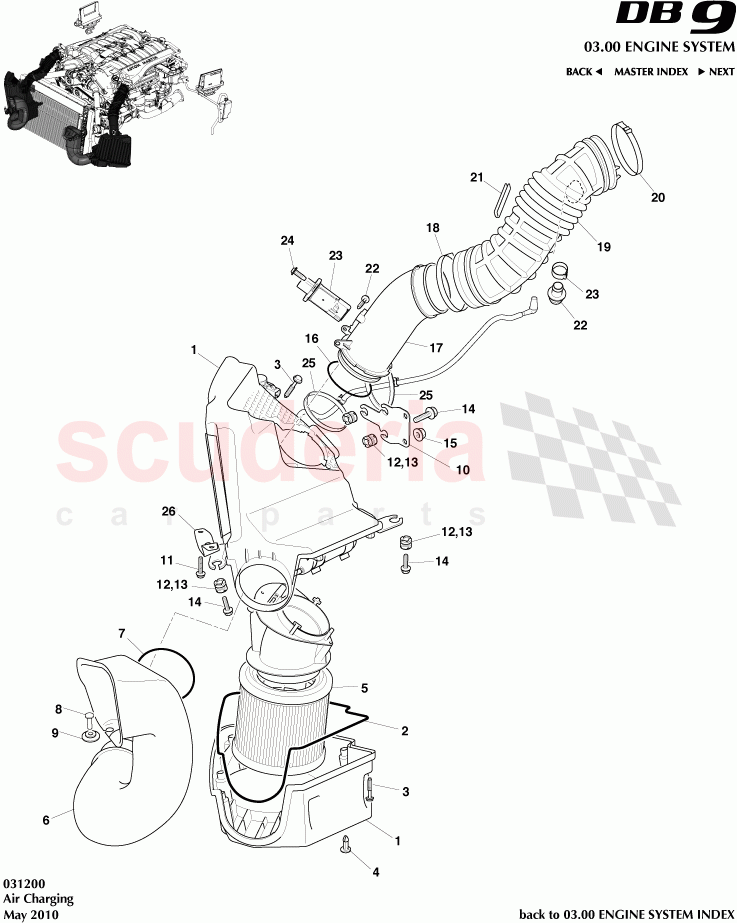

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G439600BD	Airbox RH	$393.66	To Order
	4G439600CD	Air Filter Box LH	$393.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C664AB	Gasket - Air Cleaner Housing	$20.02	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410AA	Screw - 5.2x32 Self Tap	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439600BD	Airbox RH	$393.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439601ABPK	Air Filter (Pack of 2)	$181.52	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A675BD	Duct- Air Intake RHS	$167.50	To Order
	4G439A675CD	Duct - Air Intake LH	$167.50	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C704AA	O Ring - Engine Duct	$23.16	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432705AA	Rivet Plastic	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N967AA	Grommet - ENG A/CLNR Tub EXT	$111.48	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	$0.45	To Order
	4G439B609AC	BRACKET - AIR CLEANER OUTER	$167.54	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439697CA	Grommet, Engine Airbox	$13.87	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	$0.21	To Order
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	$0.21	To Order
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	$0.21	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	$0.21	To Order
	703161	Nut Hex M8 Flanged	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	703161	Nut Hex M8 Flanged	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C704BA	O-Ring Engine Duct Interior	$25.74	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4312B612AB	Body - Engine Electronic Mas Air Flow Sensor	$28.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N832BB	HOSE CLAMP DUCT TO AIRBOX	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C623CD	DUCT MS AIRFLOW BODY TO THROTTLE BODY, RH	$249.84	To Order
	4G439C623DD	DUCT MS AIRFLOW BODY TO THROTTLE BODY, LH	$374.00	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N832AA	Clamp - Air Cleaner Hose	$24.41	To Order

Photo	Part No	Description	Price (each)	Stock
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	$33.36	To Order
	4G4318K261AA	EDGE PROTECTION STRIP	$6.31	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430810933	Mass Air Flow Meter	$149.26	To Order
	4G430410AA	Screw - 5.2x32 Self Tap	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430810933	Mass Air Flow Meter	$149.26	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410BB	Screw, M35 x 12 Self Tap	$7.01	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33ANR1350AA	CABLE TIE HOSE CLIP ASSEMBLY	$7.76	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B609FB	BRKT - A/CLNR OTR	$28.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4G439600BD	Airbox RH	4G439600BD Airbox RH	$393.66	1
1	4G439600CD	Air Filter Box LH	4G439600CD Air Filter Box LH	$393.66	1
2	4G439C664AB	Gasket - Air Cleaner Housing	4G439C664AB Gasket - Air Cleaner Housing	$20.02	2
3	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap	$2.42	9
4	4G439600BD	Airbox RH	4G439600BD Airbox RH	$393.66	2
5	4G439601ABPK	Air Filter (Pack of 2)	4G439601ABPK Air Filter (Pack of 2)	$181.52	2
6	4G439A675BD	Duct- Air Intake RHS	4G439A675BD Duct- Air Intake RHS	$167.50	1
6	4G439A675CD	Duct - Air Intake LH	4G439A675CD Duct - Air Intake LH	$167.50	1
7	4G436C704AA	O Ring - Engine Duct	4G436C704AA O Ring - Engine Duct	$23.16	2
8	4G432705AA	Rivet Plastic	4G432705AA Rivet Plastic	$0.71	2
9	4G439N967AA	Grommet - ENG A/CLNR Tub EXT	4G439N967AA Grommet - ENG A/CLNR Tub EXT	$111.48	2
10	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free 07MY	$0.45	4
10	4G439B609AC	BRACKET - AIR CLEANER OUTER	4G439B609AC BRACKET - AIR CLEANER OUTER	$167.54	2
11	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free 08MY	$0.45	4
12	4G439697CA	Grommet, Engine Airbox	4G439697CA Grommet, Engine Airbox	$13.87	4
13	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head 07MY	$0.21	4
13	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 07MY	$0.21	4
13	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 08MY	$0.21	4
13	4G435144AA	Spacer, Engine Airbox Isolator	4G435144AA Spacer, Engine Airbox Isolator	$14.99	4
14	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head 08MY	$0.21	2
14	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged 07MY	$0.96	4
15	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged	$0.96	4
16	4G436C704BA	O-Ring Engine Duct Interior	4G436C704BA O-Ring Engine Duct Interior	$25.74	2
17	4G4312B612AB	Body - Engine Electronic Mas Air Flow Sensor	4G4312B612AB Body - Engine Electronic Mas Air Flow Sensor	$28.35	2
18	4G439N832BB	HOSE CLAMP DUCT TO AIRBOX	4G439N832BB HOSE CLAMP DUCT TO AIRBOX	$14.28	2
19	4G439C623CD	DUCT MS AIRFLOW BODY TO THROTTLE BODY, RH	4G439C623CD DUCT MS AIRFLOW BODY TO THROTTLE BODY, RH	$249.84	1
19	4G439C623DD	DUCT MS AIRFLOW BODY TO THROTTLE BODY, LH	4G439C623DD DUCT MS AIRFLOW BODY TO THROTTLE BODY, LH	$374.00	1
20	4G439N832AA	Clamp - Air Cleaner Hose	4G439N832AA Clamp - Air Cleaner Hose	$24.41	2
21	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	$33.36	-
21	4G4318K261AA	EDGE PROTECTION STRIP	4G4318K261AA EDGE PROTECTION STRIP	$6.31	2
22	4G430810933	Mass Air Flow Meter	4G430810933 Mass Air Flow Meter 07MY	$149.26	2
22	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap	$2.42	18
23	4G430810933	Mass Air Flow Meter	4G430810933 Mass Air Flow Meter	$149.26	2
24	4G430410BB	Screw, M35 x 12 Self Tap	4G430410BB Screw, M35 x 12 Self Tap	$7.01	2
25	8D33ANR1350AA	CABLE TIE HOSE CLIP ASSEMBLY	8D33ANR1350AA CABLE TIE HOSE CLIP ASSEMBLY	$7.76	2
26	4G439B609FB	BRKT - A/CLNR OTR	4G439B609FB BRKT - A/CLNR OTR	$28.69	2
