Fuel Charging and Controls of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Fuel Charging and Controls

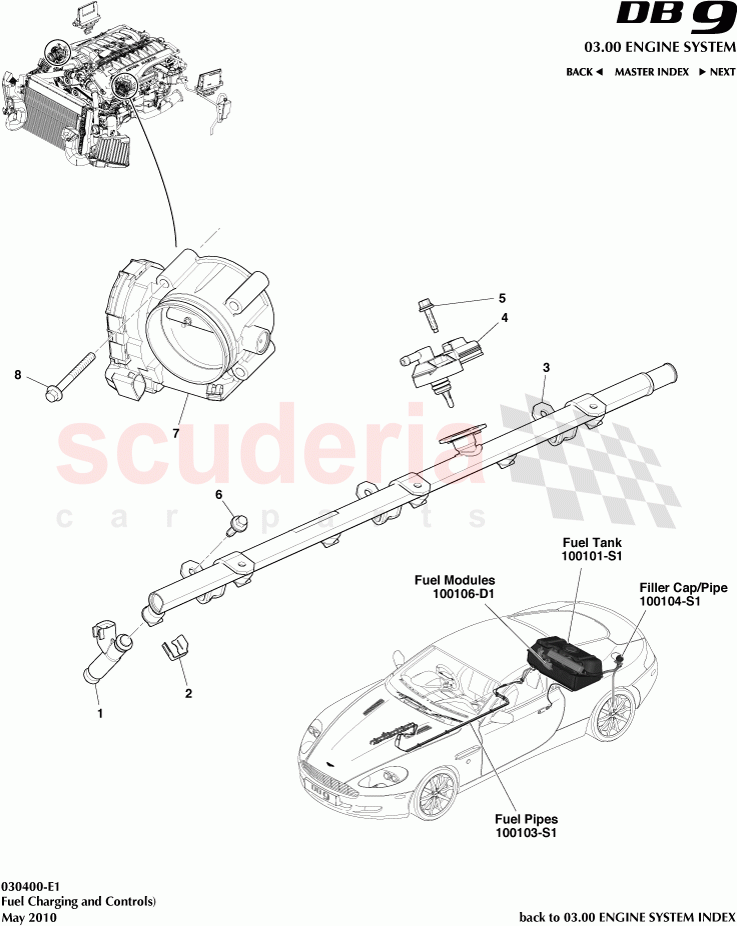

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5R139F593AB	FUEL INJECTOR 22LBS/ HR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E9S441CB	FUEL RAIL ASSY RH	Enquire	To Order
	4G4E9S441AB	Fuel rail assy, RH	Enquire	To Order
	4G430810201	FUEL RAIL ASSY-LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	91894	SENSOR-FUEL TEMP	Enquire	To Order
	1R120810541	SENSOR-FUEL PRESSURE	Enquire	To Order
	4G4E9S441DB	FUEL RAIL ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699110	SCREW &WASHER HEX HD M5x0.8x12 ZPLT OLIVE PIL 9	Enquire	To Order
	6G433410063	Sensor Temperature/Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697769	SCREW M6 x 23 W/WASR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703693	BOLT & WASHER M6x18 HF PIL CON 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120810317PK	O Ring (Pack of 10)	Enquire	To Order
	1R120810079	Throttle Body 68mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G430810474PK	Seal - Fuel Injector to Manifold - Blue - Upper (Pack of 8)	6G430810474PK Seal - Fuel Injector to Manifold - Blue - Upper (Pack of 8) Pack of 8	-	-	Enquire
-	4G4E9F593A6A	Fuel Injector 0.3CC Spec	4G4E9F593A6A Fuel Injector 0.3CC Spec 07/08MY	-	12	Enquire
1	5R139F593AB	FUEL INJECTOR 22LBS/ HR	5R139F593AB FUEL INJECTOR 22LBS/ HR 09MY	-	12	Enquire
2	4G4E9S441CB	FUEL RAIL ASSY RH	4G4E9S441CB FUEL RAIL ASSY RH 06MY on	-	1	Enquire
2	4G4E9S441AB	Fuel rail assy, RH	4G4E9S441AB Fuel rail assy, RH	-	1	Enquire
2	4G430810201	FUEL RAIL ASSY-LH	4G430810201 FUEL RAIL ASSY-LH	-	1	Enquire
2	6G433410062	Clip, Fuel Injector	6G433410062 Clip, Fuel Injector	-	12	Enquire
3	91894	SENSOR-FUEL TEMP	91894 SENSOR-FUEL TEMP Up to 06MY	-	1	Enquire
3	1R120810541	SENSOR-FUEL PRESSURE	1R120810541 SENSOR-FUEL PRESSURE Up to 06MY	-	2	Enquire
3	4G4E9S441DB	FUEL RAIL ASSY LH	4G4E9S441DB FUEL RAIL ASSY LH 06MY on	-	1	Enquire
4	699110	SCREW &WASHER HEX HD M5x0.8x12 ZPLT OLIVE PIL 9	699110 SCREW &WASHER HEX HD M5x0.8x12 ZPLT OLIVE PIL 9 Up to 06MY- 2 per sensor	-	4	Enquire
4	6G433410063	Sensor Temperature/Pressure	6G433410063 Sensor Temperature/Pressure 1 per Fuel Rail	-	2	Enquire
5	697769	SCREW M6 x 23 W/WASR	697769 SCREW M6 x 23 W/WASR 07MY	-	6	Enquire
6	703693	BOLT & WASHER M6x18 HF PIL CON 8	703693 BOLT & WASHER M6x18 HF PIL CON 8 3 per Fuel Rail	-	6	Enquire
7	1R120810317PK	O Ring (Pack of 10)	1R120810317PK O Ring (Pack of 10)	-	2	Enquire
7	1R120810079	Throttle Body 68mm	1R120810079 Throttle Body 68mm	-	2	Enquire
8	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	703196PK BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	-	8	Enquire
