Aston Martin DB9 (2004-2012) - Engine Lubrication

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D336675DA OIL PAN ASSEMBLY $3,228.38 To Order
4G430410205 Plug, Oil Pan Drain $23.57 ARRIVING SOON
8D336676DA Oil Pan Enquire To Order
Photo Part No Description Price (each) Stock
485092 Engine Sump Gasket $126.21 To Order
Photo Part No Description Price (each) Stock
702605 BOLT M8 X 45 HEX HEAD FLANGED $34.28 To Order
Photo Part No Description Price (each) Stock
701142 STUD BOLT-M6/M8 $1.85 To Order
Photo Part No Description Price (each) Stock
701142 STUD BOLT-M6/M8 $1.85 To Order
Photo Part No Description Price (each) Stock
4G4E6622BA SCREEN & COVER - SUMP OIL PICK UP $193.68 To Order
Photo Part No Description Price (each) Stock
8D336686AA Baffle, Oil pan Enquire To Order
699111 BOLT M6x1.0x18.5 HEX FLNG PIL $1.09 To Order
Photo Part No Description Price (each) Stock
8D336686AD Baffle Plate, Oil Pan $223.20 To Order
Photo Part No Description Price (each) Stock
702601 BOLT-M6-1.0 X 16 HEX FLG PT $0.29 To Order
Photo Part No Description Price (each) Stock
4G4E6B660BA WINDAGE TRAY $293.46 To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.59 To Order
Photo Part No Description Price (each) Stock
4G430410972 Sensor Engine Low Oil Level $104.67 To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm $0.21 To Order
Photo Part No Description Price (each) Stock
8G430411112 Service Assy - Oil Pump $2,626.69 To Order
Photo Part No Description Price (each) Stock
702552 BOLT M8 X 70 HF PIL 8 $1.21 To Order
Photo Part No Description Price (each) Stock
4G430410196 Seal, Oil Pump Pickup Tube to Pan $108.44 To Order
Photo Part No Description Price (each) Stock
CD336L626AA INSERT OIL COOLER $124.00 To Order
8G436A642BB COOLER ASSEMBLY - ENGINE OIL $570.97 To Order
AG436714AA Oil Filter Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AG436714AA Oil Filter Enquire To Order
Photo Part No Description Price (each) Stock
4G4E6N867BB TUB & HOS ASY-ENG OIL COOL $67.04 To Order
Photo Part No Description Price (each) Stock
4G4E8B451BA HOSE ASSY - ENGINE OIL COOLER $75.99 To Order
Photo Part No Description Price (each) Stock
702858 HOSE CLAMP 23.9-27.1 $4.62 To Order
Photo Part No Description Price (each) Stock
4G4E6754AD TUBE ASSEMBLY - OIL LEVEL ASSEMBLY $63.70 To Order
Photo Part No Description Price (each) Stock
701745 Bolt, M8 x 30, Hex Flg Hd $0.53 To Order
Photo Part No Description Price (each) Stock
8D336750AB OIL LEVEL INDICATOR ASSEMBLY $49.53 To Order
8D336750CA OIL LEVEL INDICATOR ASSEMBLY $52.49 To Order
4G4E6750AC OIL LVL IND ASY $46.21 To Order
View All

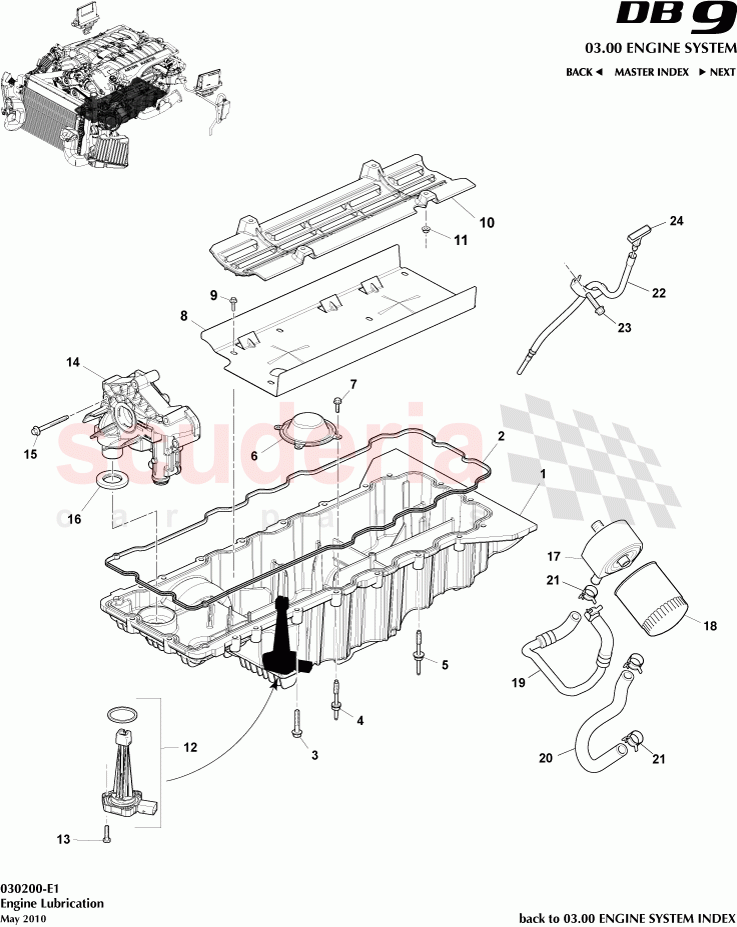

Engine Lubrication of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G4E6675CC
Oil pan assy
08MY 		$1,228.14 1
1 8D336675DA
OIL PAN ASSEMBLY 		$3,228.38 1
1 4G430410205
Plug, Oil Pan Drain
ARRIVING SOON 		$23.57 1
1 8D336676DA
Oil Pan 		- 1 Enquire
2 485092
Engine Sump Gasket 		$126.21 1
3 702605
BOLT M8 X 45 HEX HEAD FLANGED 		$34.28 15
4 701142
STUD BOLT-M6/M8 		$1.85 5
5 701142
STUD BOLT-M6/M8 		$1.85 1
6 4G4E6622BA
SCREEN & COVER - SUMP OIL PICK UP 		$193.68 1
7 8D336686AA
Baffle, Oil pan
08MY 		- 1 Enquire
7 699111
BOLT M6x1.0x18.5 HEX FLNG PIL 		$1.09 4
8 8D336686AD
Baffle Plate, Oil Pan
09MY 		$223.20 1
9 702601
BOLT-M6-1.0 X 16 HEX FLG PT 		$0.29 9
10 4G4E6B660BA
WINDAGE TRAY 		$293.46 1
11 703169
NUT - M6 HEX FLANGE CHROME FREE 		$0.59 4
12 4G430410972
Sensor Engine Low Oil Level 		$104.67 1
13 700607
Screw Hex Flange Head M6 x 16mm 		$0.21 3
14 8G430411112
Service Assy - Oil Pump 		$2,626.69 1
15 702552
BOLT M8 X 70 HF PIL 8 		$1.21 4
16 4G430410196
Seal, Oil Pump Pickup Tube to Pan 		$108.44 1
17 CD336L626AA
INSERT OIL COOLER
09MY 		$124.00 1
17 8G436A642BB
COOLER ASSEMBLY - ENGINE OIL
09MY 		$570.97 1
17 AG436714AA
Oil Filter
09MY 		- 1 Enquire
17 AG436714AA
Oil Filter
08MY 		- 1 Enquire
17 4G434410007
INSERT-OIL CLR BOLT 		$69.41 1
17 92056
ENGINE OIL COOLER 		$1,198.67 1
17 XR1E6714AC
Oil filter 		- 1 Enquire
18 AG436714AA
Oil Filter
09MY 		- 1 Enquire
19 4G4E6N867BB
TUB & HOS ASY-ENG OIL COOL 		$67.04 1
20 4G4E8B451BA
HOSE ASSY - ENGINE OIL COOLER 		$75.99 1
21 702858
HOSE CLAMP 23.9-27.1
2 per hose 		$4.62 4
22 4G4E6754AD
TUBE ASSEMBLY - OIL LEVEL ASSEMBLY 		$63.70 1
23 701745
Bolt, M8 x 30, Hex Flg Hd 		$0.53 1
24 8D336750AB
OIL LEVEL INDICATOR ASSEMBLY
08MY 		$49.53 1
24 8D336750CA
OIL LEVEL INDICATOR ASSEMBLY
09MY 		$52.49 1
24 4G4E6750AC
OIL LVL IND ASY 		$46.21 1
