Engine Cooling of Aston Martin Aston Martin DB9 (2004-2012)

View All

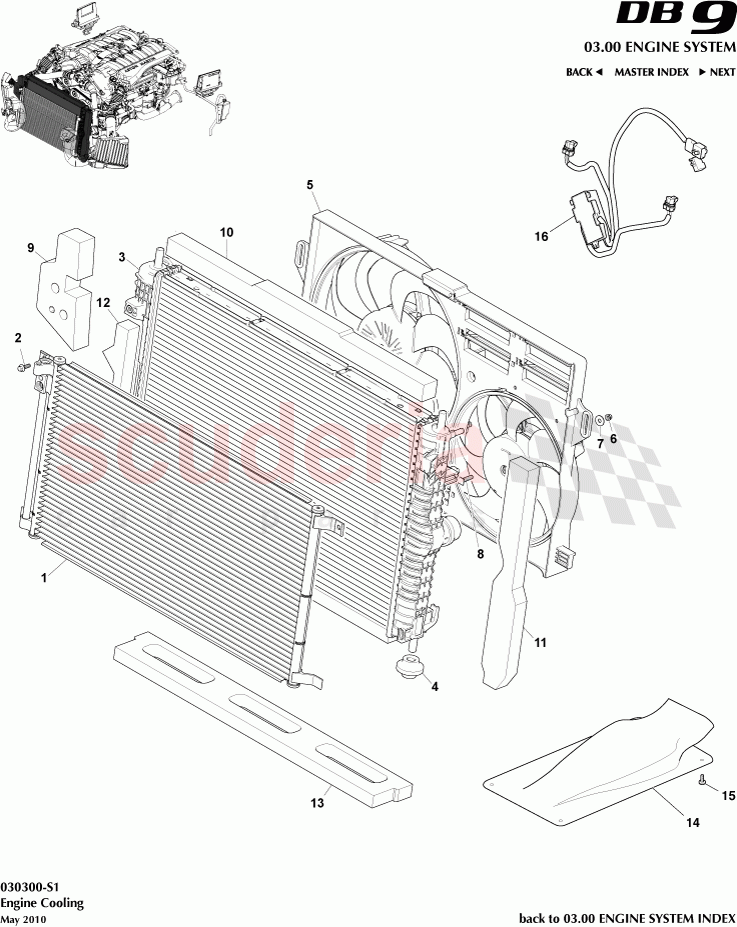

Aston Martin DB9 (2004-2012) - Engine Cooling

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4319710AA	Condenser	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703750	Bolt, M6 x 20, Hex Flg Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G434190AA	Radiator assy	Enquire	To Order
	8D338005AC	RADIATOR	Enquire	To Order
	32121574AD	Radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G438B414AA	MOUNTING BUSH	Enquire	To Order
	3285101PK	Bush Mounting Upper (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338C607AD	Fan Module	Enquire	To Order
	4G438C607AA	Assembly Cooling Fan Cowl	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order
	697122	NUT M6 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699614	WASHER 22 X 6.8 X 2 STAINLESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	E805262S437	Bolt, M6 x 19 square head	Enquire	To Order
	703728	Screw, M6 x 19, Square Head	Enquire	To Order
	697751	BOLT-M6 x 19 SQ HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C8585BA	Foam Pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G438N301AA	Seal, radiator upper	Enquire	To Order
	8D338N301AA	Foam Seal - Upper Fan Module	Enquire	To Order
	8D338N301AA	Foam Seal - Upper Fan Module	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F8B171AA	SEAL RADIATOR -LH/RH	Enquire	To Order
	8D33F8B171AA	FOAM SEAL - L/HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F8B171AA	SEAL RADIATOR -LH/RH	Enquire	To Order
	8D33F8B170AA	FOAM SEAL - R/HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G438C477AA	Seal, radiator lower	Enquire	To Order
	4G438C477AB	Foam Seal - Bottom	Enquire	To Order
	8D338C477AA	FOAM SEAL - LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4301904BA	SUMP NACA DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710479	ELECTRONIC MODULATOR - COOLING FAN & COWL ASSEMBLY	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G4313A803AA	Bracket, horn mounting	6G4313A803AA Bracket, horn mounting Extreme cooling pack	-	1	Enquire
-	6G43445396AA	Oil cooler	6G43445396AA Oil cooler Extreme cooling pack	-	1	Enquire
-	9G4319710AA	Condenser	9G4319710AA Condenser 07MY	-	1	Enquire
-	32121574AD	Radiator	32121574AD Radiator 08MY	-	1	Enquire
-	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR	-	1	Enquire
-	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	1R12322666AAPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	-	-	Enquire
1	9G4319710AA	Condenser	9G4319710AA Condenser 09MY	-	1	Enquire
2	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd	-	1	Enquire
3	6G434190AA	Radiator assy	6G434190AA Radiator assy Extreme cooling pack	-	1	Enquire
3	8D338005AC	RADIATOR	8D338005AC RADIATOR 08MY on	-	1	Enquire
3	32121574AD	Radiator	32121574AD Radiator 07MY	-	1	Enquire
4	6G438B414AA	MOUNTING BUSH	6G438B414AA MOUNTING BUSH Extreme cooling pack	-	4	Enquire
4	3285101PK	Bush Mounting Upper (Pack of 2)	3285101PK Bush Mounting Upper (Pack of 2)	-	4	Enquire
5	8D338C607AD	Fan Module	8D338C607AD Fan Module 08MY on	-	1	Enquire
5	4G438C607AA	Assembly Cooling Fan Cowl	4G438C607AA Assembly Cooling Fan Cowl 07MY	-	1	Enquire
6	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE 08MY	-	2	Enquire
6	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC 07MY	-	2	Enquire
7	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS	-	2	Enquire
8	E805262S437	Bolt, M6 x 19 square head	E805262S437 Bolt, M6 x 19 square head 08MY	-	2	Enquire
8	703728	Screw, M6 x 19, Square Head	703728 Screw, M6 x 19, Square Head 09MY	-	2	Enquire
8	697751	BOLT-M6 x 19 SQ HD	697751 BOLT-M6 x 19 SQ HD 07MY	-	2	Enquire
9	4G43C8585BA	Foam Pad	4G43C8585BA Foam Pad	-	1	Enquire
10	6G438N301AA	Seal, radiator upper	6G438N301AA Seal, radiator upper Extreme cooling pack	-	1	Enquire
10	8D338N301AA	Foam Seal - Upper Fan Module	8D338N301AA Foam Seal - Upper Fan Module 07MY	-	1	Enquire
10	8D338N301AA	Foam Seal - Upper Fan Module	8D338N301AA Foam Seal - Upper Fan Module 08MY	-	1	Enquire
11	4G43F8B171AA	SEAL RADIATOR -LH/RH	4G43F8B171AA SEAL RADIATOR -LH/RH 07MY	-	1	Enquire
11	8D33F8B171AA	FOAM SEAL - L/HAND	8D33F8B171AA FOAM SEAL - L/HAND 08MY	-	1	Enquire
12	4G43F8B171AA	SEAL RADIATOR -LH/RH	4G43F8B171AA SEAL RADIATOR -LH/RH 07MY/ Extreme Cooling Pack	-	1	Enquire
12	8D33F8B170AA	FOAM SEAL - R/HAND	8D33F8B170AA FOAM SEAL - R/HAND 08MY	-	1	Enquire
13	6G438C477AA	Seal, radiator lower	6G438C477AA Seal, radiator lower Extreme cooling pack	-	1	Enquire
13	4G438C477AB	Foam Seal - Bottom	4G438C477AB Foam Seal - Bottom 07MY	-	1	Enquire
13	8D338C477AA	FOAM SEAL - LOWER	8D338C477AA FOAM SEAL - LOWER 08MY	-	1	Enquire
14	4G4301904BA	SUMP NACA DUCT	4G4301904BA SUMP NACA DUCT pre 07MY	-	1	Enquire
15	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free pre 07MY	-	4	Enquire
16	4G433710479	ELECTRONIC MODULATOR - COOLING FAN & COWL ASSEMBLY ARRIVING SOON	4G433710479 ELECTRONIC MODULATOR - COOLING FAN & COWL ASSEMBLY pre 07MY ARRIVING SOON	-	1	Enquire
