Engine Structure of Aston Martin Aston Martin DB9 (2004-2012)

View All

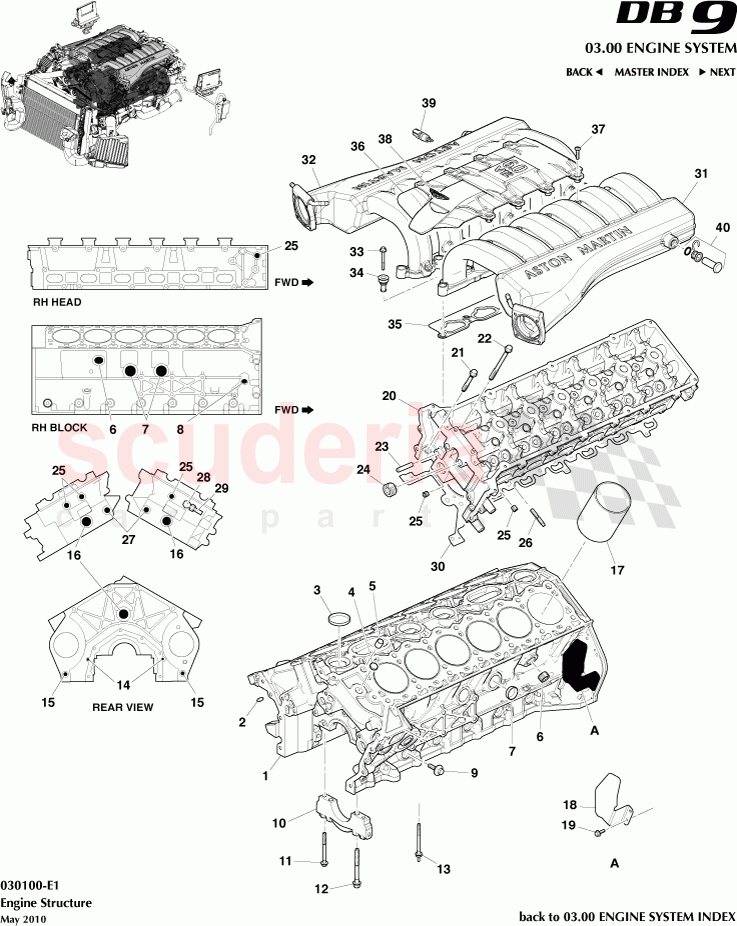

Aston Martin DB9 (2004-2012) - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD436010AA	CYLINDER BLOCK ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	Dowel, 8 x 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185000	Plug, 52.6 dia cup	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185001	Plug, Cup Expansion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	Dowel, 16 x 19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	Plug 1.26 Cup (32mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110819	Bolt Main Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110203	Bolt, M10 x 1.5 x 91	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	185133	Stud Bolt, Bearing Caps	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	699134	Dowel, Hollow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G436055AA	Cylinder Liner, V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G436K342BB	CRANK SENSOR HEATSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91863	CYL HEAD ASSY-LH	Enquire	To Order
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G436M099AA	Cylinder head assy LH (inc valves/springs/adjusters etc, minus cams etc)	Enquire	To Order
	8G436049AA	HD ASY CYL(6.0L-V12-	Enquire	To Order
	91862	CYL HEAD ASSY-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703690	Bolt M8 x 63 Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184996	DOWEL-10x49.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685032	PLUG-1 x 11.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686441	PLUG-3/8 - 18x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED230610174	ADAPTOR-O/PRESS SWTC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336083AA	Gasket, Cylinder Head, LH	Enquire	To Order
	CD336051AA	Gasket, Cylinder Head, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4E9424HB	INTAKE MANIFOLD ASSEMBLY LH	Enquire	To Order
	8G439424DA	MANF ASY INTK LH	Enquire	To Order
	8G439424DA	MANF ASY INTK LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4E9424GB	INTAKE MANIFOLD ASSEMBLY RH	Enquire	To Order
	8G439424CA	INTAKE MANIFOLD ASSY	Enquire	To Order
	7G439424AA	Intake, manifold assy, RH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430810002	Isolator, Intake, Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G439J444AA	Support, intake manifold	Enquire	To Order
	8G439J444AA	SUPPORT BRACE INTAKE MANIFOLD	Enquire	To Order
	4G4E9J444CA	SUPPORT BRACE INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703703	Bolt, Flange Head M8 x 16	Enquire	To Order
	702847	SCREW-M6x25 PAN INT LOB 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43001B46BB	MANIFOLD BADGE	Enquire	To Order
	4G43001B40BA	BADGE-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EG330810726	SENSOR-AIR TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432A411AA	CARTRIDGE ASSEMBLY	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	91949	ENGINE ASSY-DB9 07MY	91949 ENGINE ASSY-DB9 07MY From (V) A06678 (07MY and 08MY)	-	1	Enquire
-	7G436007AA	ENGINE ASSEMBLY 6.0L V12	7G436007AA ENGINE ASSEMBLY 6.0L V12 From (V) A06678 (07MY and 08MY)	-	1	Enquire
-	92004	ENGINE ASSY-DB9 06MY	92004 ENGINE ASSY-DB9 06MY Up to (V) A06677 (Upto 06MY)	-	1	Enquire
-	91693	ENG ASSY-DB9LM 07MY - REMAN	91693 ENG ASSY-DB9LM 07MY - REMAN Le Mans	-	1	Enquire
-	91949	ENGINE ASSY-DB9 07MY	91949 ENGINE ASSY-DB9 07MY Le Mans	-	1	Enquire
-	91950	ENGINE ASSY-DB9 08MY	91950 ENGINE ASSY-DB9 08MY 09MY	-	1	Enquire
-	BG436007AA	ENGINE ASSEMBLY 6.0L V12	BG436007AA ENGINE ASSEMBLY 6.0L V12 11MY	-	1	Enquire
1	AD436010AA	CYLINDER BLOCK ASSY	AD436010AA CYLINDER BLOCK ASSY	-	1	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18	-	2	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup	-	4	Enquire
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion	-	1	Enquire
5	184994	Dowel, 16 x 19	184994 Dowel, 16 x 19	-	4	Enquire
6	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	2	Enquire
7	184997	Plug 1.26 Cup (32mm)	184997 Plug 1.26 Cup (32mm)	-	4	Enquire
8	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	7	Enquire
9	4G430110819	Bolt Main Bearing Cap	4G430110819 Bolt Main Bearing Cap	-	14	Enquire
10	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR	-	7	Enquire
11	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91	-	14	Enquire
12	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ARRIVING SOON	-	10	Enquire
13	185133	Stud Bolt, Bearing Caps ARRIVING SOON	185133 Stud Bolt, Bearing Caps ARRIVING SOON	-	4	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow	-	2	Enquire
16	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	3	Enquire
17	7G436055AA	Cylinder Liner, V12	7G436055AA Cylinder Liner, V12	-	12	Enquire
18	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD	-	1	Enquire
19	91863	CYL HEAD ASSY-LH	91863 CYL HEAD ASSY-LH	-	1	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
20	8G436M099AA	Cylinder head assy LH (inc valves/springs/adjusters etc, minus cams etc)	8G436M099AA Cylinder head assy LH (inc valves/springs/adjusters etc, minus cams etc)	-	1	Enquire
20	8G436049AA	HD ASY CYL(6.0L-V12-	8G436049AA HD ASY CYL(6.0L-V12-	-	1	Enquire
20	91862	CYL HEAD ASSY-RH	91862 CYL HEAD ASSY-RH	-	1	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head	703690 Bolt M8 x 63 Hex Flange Head	-	4	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head	-	28	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25	-	2	Enquire
24	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5	-	2	Enquire
25	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	2	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	-	24	Enquire
27	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8	-	2	Enquire
28	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	-	1	Enquire
29	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure	-	1	Enquire
30	CD336083AA	Gasket, Cylinder Head, LH	CD336083AA Gasket, Cylinder Head, LH	-	1	Enquire
30	CD336051AA	Gasket, Cylinder Head, RH	CD336051AA Gasket, Cylinder Head, RH	-	1	Enquire
31	4G4E9424HB	INTAKE MANIFOLD ASSEMBLY LH	4G4E9424HB INTAKE MANIFOLD ASSEMBLY LH Up to (V) B04711	-	1	Enquire
31	8G439424DA	MANF ASY INTK LH	8G439424DA MANF ASY INTK LH From (V) B04712	-	1	Enquire
31	8G439424DA	MANF ASY INTK LH	8G439424DA MANF ASY INTK LH 08MY/ 09MY	-	1	Enquire
31	7G439424BA	Intake, manifold assy, LH	7G439424BA Intake, manifold assy, LH Le Mans	-	1	Enquire
32	4G4E9424GB	INTAKE MANIFOLD ASSEMBLY RH	4G4E9424GB INTAKE MANIFOLD ASSEMBLY RH Up to (V) B04711	-	1	Enquire
32	8G439424CA	INTAKE MANIFOLD ASSY	8G439424CA INTAKE MANIFOLD ASSY From (V) B04712	-	1	Enquire
32	7G439424AA	Intake, manifold assy, RH	7G439424AA Intake, manifold assy, RH Le Mans	-	1	Enquire
32	8G439424CA	INTAKE MANIFOLD ASSY	8G439424CA INTAKE MANIFOLD ASSY 08MY	-	1	Enquire
32	8G439424CA	INTAKE MANIFOLD ASSY	8G439424CA INTAKE MANIFOLD ASSY 09MY	-	1	Enquire
33	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8	-	14	Enquire
34	4G430810002	Isolator, Intake, Manifold	4G430810002 Isolator, Intake, Manifold	-	14	Enquire
35	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2)	1R120810077PK Inlet Manifold Head Gasket (Pack of 2)	-	2	Enquire
36	7G439J444AA	Support, intake manifold	7G439J444AA Support, intake manifold Le Mans	-	1	Enquire
36	8G439J444AA	SUPPORT BRACE INTAKE MANIFOLD	8G439J444AA SUPPORT BRACE INTAKE MANIFOLD 09MY	-	1	Enquire
36	4G4E9J444CA	SUPPORT BRACE INTAKE MANIFOLD	4G4E9J444CA SUPPORT BRACE INTAKE MANIFOLD	-	1	Enquire
37	703703	Bolt, Flange Head M8 x 16	703703 Bolt, Flange Head M8 x 16 Le Mans	-	20	Enquire
37	702847	SCREW-M6x25 PAN INT LOB 8	702847 SCREW-M6x25 PAN INT LOB 8	-	8	Enquire
38	4G43001B46BB	MANIFOLD BADGE	4G43001B46BB MANIFOLD BADGE	-	1	Enquire
38	4G43001B40BA	BADGE-DB9	4G43001B40BA BADGE-DB9	-	1	Enquire
39	EG330810726	SENSOR-AIR TEMPERATURE	EG330810726 SENSOR-AIR TEMPERATURE	-	1	Enquire
40	4G432A411AA	CARTRIDGE ASSEMBLY ARRIVING SOON	4G432A411AA CARTRIDGE ASSEMBLY ARRIVING SOON	-	1	Enquire
