Name: Tailgate locking system
Rating: 4.9 (1 reviews)

View All

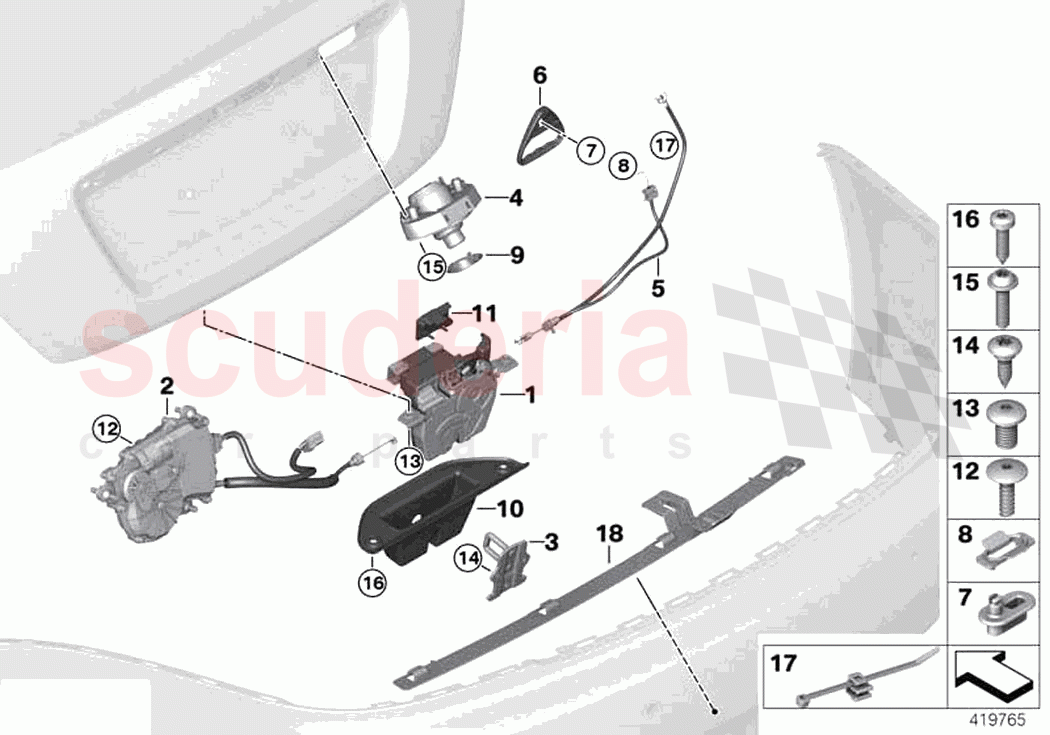

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51247269543	Trunk lid lock, top	$188.13	To Order

Photo	Part No	Description	Price (each)	Stock
	51247203950	Trunk lid power lock drive	$647.36	To Order

Photo	Part No	Description	Price (each)	Stock
	51247312284	Striker boot lid	$66.86	To Order

Photo	Part No	Description	Price (each)	Stock
	51247198888	Bowden cable, emergency unlocking	$38.68	To Order

Photo	Part No	Description	Price (each)	Stock
	51247056414	Handle f emergency unlocking	$21.74	To Order

Photo	Part No	Description	Price (each)	Stock
	51247056413	Clip	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	51247057739	Washer	$3.50	To Order

Photo	Part No	Description	Price (each)	Stock
	51247130828	Lock cover	$21.16	To Order

Photo	Part No	Description	Price (each)	Stock
	51497238580	Cover, trunk lid lock	$110.94	To Order

Photo	Part No	Description	Price (each)	Stock
	51247224054	Protection cap	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	7147121579	Fillister head screw	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	7147208454	Oval-head screw/washer assembly	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	7147202357	Torx-countersunk screw	$2.03	To Order

Photo	Part No	Description	Price (each)	Stock
	7147208453	Fillister head screw	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905875	Countersunk screw	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	61136918644	Cable strap with bracket	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	51127337638	Holder SMO	$115.33	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51247269543	Trunk lid lock, top	51247269543 Trunk lid lock, top	$188.13	1
2	51247203950	Trunk lid power lock drive	51247203950 Trunk lid power lock drive	$647.36	1
3	51247312284	Striker boot lid	51247312284 Striker boot lid	$66.86	1
4	51247226794	Catch with key	51247226794 Catch with key	$154.76	1
4	51247226803	Catch with code	51247226803 Catch with code	$182.11	1
5	51247198888	Bowden cable, emergency unlocking	51247198888 Bowden cable, emergency unlocking	$38.68	1
6	51247056414	Handle f emergency unlocking	51247056414 Handle f emergency unlocking	$21.74	1
7	51247056413	Clip	51247056413 Clip	$3.30	1
8	51247057739	Washer	51247057739 Washer	$3.50	1
9	51247130828	Lock cover	51247130828 Lock cover	$21.16	1
10	51497238580	Cover, trunk lid lock	51497238580 Cover, trunk lid lock	$110.94	1
11	51247224054	Protection cap	51247224054 Protection cap	$5.22	1
12	7147121579	Fillister head screw	7147121579 Fillister head screw	$1.85	2
13	7147208454	Oval-head screw/washer assembly	7147208454 Oval-head screw/washer assembly	$2.68	2
14	7147202357	Torx-countersunk screw	7147202357 Torx-countersunk screw ISA M6X13	$2.03	2
15	7147208453	Fillister head screw	7147208453 Fillister head screw	$3.74	2
16	7119905875	Countersunk screw	7119905875 Countersunk screw M6X25	$4.20	2
17	61136918644	Cable strap with bracket	61136918644 Cable strap with bracket L=200MM	$2.43	1
18	51127337638	Holder SMO	51127337638 Holder SMO	$115.33	1
