Rolls Royce Wraith RR5(2017-2023) - Floor panel trunk wheel housing rear

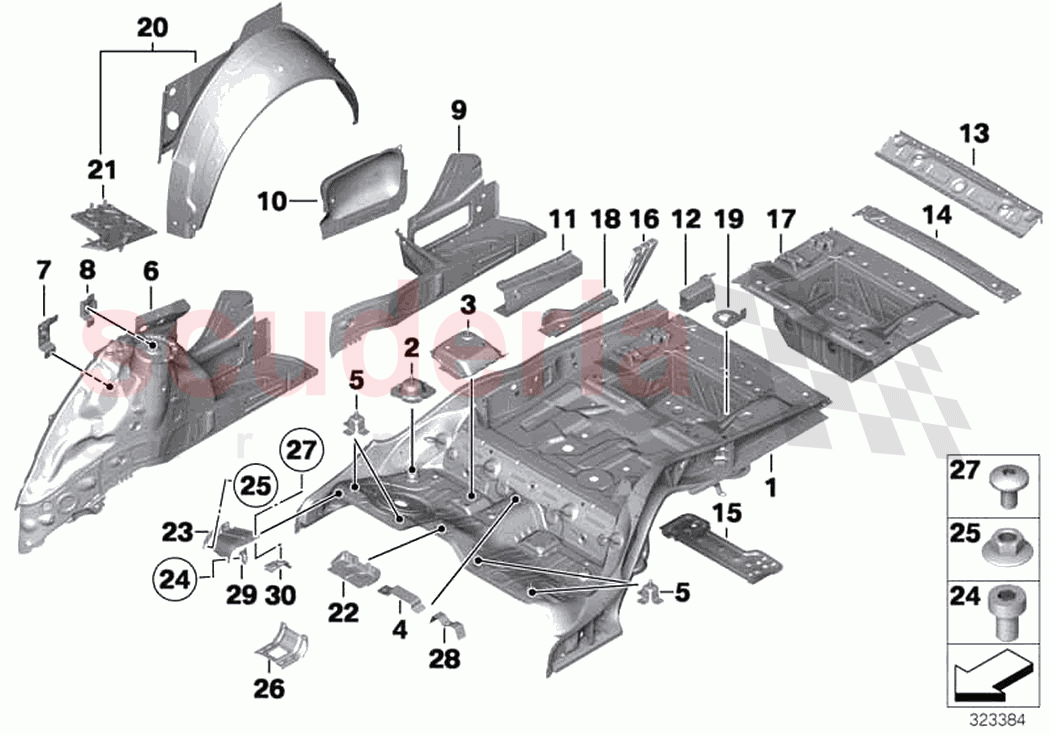

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41007242647	Trunk floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117242629	Holder, rear seat, rear inner left	Enquire	To Order
	41117242630	Holder, rear seat, rear inner right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007242631	Bracket, seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007242633	Rear left wheelhouse	Enquire	To Order
	41007242634	Rear right wheelhouse	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41147204101	Holder,activat.carbon contain.,front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41147204102	Bracket, activated charcoal filter, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41127242635	Extension for rear left wheel well	Enquire	To Order
	41127242636	Extension for rear right wheel well	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117204138	Right side member extension	Enquire	To Order
	41117344261	Left side member extension	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117204117	Support, air supply system rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117204111	Support, air supply unit, left	Enquire	To Order
	41117204112	Support, air supply unit, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41127310119	Luggage-compartment floor, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117204113	Left side member	Enquire	To Order
	41117204114	Right side member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007279333	Holder, charging socket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217336495	Wheel arch outer rear left	Enquire	To Order
	41217336496	Wheel arch outer rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117314536	Bracket ashtray	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617336653	Support for frame side member, left	Enquire	To Order
	51617336654	Support for frame side member, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119919724	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31316771889	Hex nut with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617211020	Support floor panel, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51219130334	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41127378492	Bracket, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007378499	Bracket lower left	Enquire	To Order
	41007378500	Bracket lower right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007378497	Holder, top side left	Enquire	To Order
	41007378498	Holder, top side right	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	41007242632	Mount, bumper	41007242632 Mount, bumper to 07.2012	-	2	Enquire
-	41007242648	Cross member, trunk floor rear	41007242648 Cross member, trunk floor rear to 07.2012	-	1	Enquire
-	41007242649	Cross member, trunk floor, bottom	41007242649 Cross member, trunk floor, bottom to 07.2012	-	1	Enquire
-	83425A547B9	Sealant D2	83425A547B9 Sealant D2 290ML; to 07.2012	-	1	Enquire
-	41007376613	Trunk floor left	41007376613 Trunk floor left	-	1	Enquire
-	41007376614	Trunk floor right	41007376614 Trunk floor right	-	1	Enquire
-	7147133560	Blind plug	7147133560 Blind plug D=9.0MM	-	2	Enquire
-	7149174618	Blind rivet nut, flat headed	7149174618 Blind rivet nut, flat headed M6	-	2	Enquire
-	61217622074	Battery holder	61217622074 Battery holder	-	1	Enquire
1	41007242647	Trunk floor	41007242647 Trunk floor to 07.2012	-	1	Enquire
3	41117242629	Holder, rear seat, rear inner left	41117242629 Holder, rear seat, rear inner left	-	1	Enquire
3	41117242630	Holder, rear seat, rear inner right	41117242630 Holder, rear seat, rear inner right	-	1	Enquire
4	41007242631	Bracket, seat	41007242631 Bracket, seat	-	1	Enquire
6	41007242633	Rear left wheelhouse	41007242633 Rear left wheelhouse	-	1	Enquire
6	41007242634	Rear right wheelhouse	41007242634 Rear right wheelhouse	-	1	Enquire
7	41147204101	Holder,activat.carbon contain.,front	41147204101 Holder,activat.carbon contain.,front	-	2	Enquire
8	41147204102	Bracket, activated charcoal filter, rear	41147204102 Bracket, activated charcoal filter, rear	-	1	Enquire
9	41127242635	Extension for rear left wheel well	41127242635 Extension for rear left wheel well	-	1	Enquire
9	41127242636	Extension for rear right wheel well	41127242636 Extension for rear right wheel well	-	1	Enquire
11	41117204138	Right side member extension	41117204138 Right side member extension	-	1	Enquire
11	41117344261	Left side member extension	41117344261 Left side member extension	-	1	Enquire
15	41117204117	Support, air supply system rear	41117204117 Support, air supply system rear	-	1	Enquire
16	41117204111	Support, air supply unit, left	41117204111 Support, air supply unit, left	-	1	Enquire
16	41117204112	Support, air supply unit, right	41117204112 Support, air supply unit, right	-	1	Enquire
17	41127310119	Luggage-compartment floor, rear	41127310119 Luggage-compartment floor, rear	-	1	Enquire
18	41117204113	Left side member	41117204113 Left side member	-	1	Enquire
18	41117204114	Right side member	41117204114 Right side member	-	1	Enquire
19	41007279333	Holder, charging socket	41007279333 Holder, charging socket from 08.2013	-	1	Enquire
20	41217336495	Wheel arch outer rear left	41217336495 Wheel arch outer rear left	-	1	Enquire
20	41217336496	Wheel arch outer rear right	41217336496 Wheel arch outer rear right	-	1	Enquire
22	41117314536	Bracket ashtray	41117314536 Bracket ashtray to 09.2011	-	1	Enquire
23	51617336653	Support for frame side member, left	51617336653 Support for frame side member, left	-	1	Enquire
23	51617336654	Support for frame side member, right	51617336654 Support for frame side member, right	-	1	Enquire
24	7119919724	Fillister head screw	7119919724 Fillister head screw M8X12	-	6	Enquire
25	31316771889	Hex nut with flange	31316771889 Hex nut with flange M8-10 ZNS3	-	6	Enquire
26	51617211020	Support floor panel, rear	51617211020 Support floor panel, rear	-	1	Enquire
27	51219130334	Torx-bolt with washer	51219130334 Torx-bolt with washer M6X12	-	6	Enquire
28	41127378492	Bracket, centre console	41127378492 Bracket, centre console	-	1	Enquire
29	41007378499	Bracket lower left	41007378499 Bracket lower left	-	1	Enquire
29	41007378500	Bracket lower right	41007378500 Bracket lower right	-	1	Enquire
30	41007378497	Holder, top side left	41007378497 Holder, top side left	-	1	Enquire
30	41007378498	Holder, top side right	41007378498 Holder, top side right	-	1	Enquire
