Front Side Panel Mounting Parts

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - Front side panel Mounting parts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
41007336469 Side panel, front left Enquire To Order
41007336470 Side panel, front right Enquire To Order
Photo Part No Description Price (each) Stock
41007242651 Holder, side panel, front left Enquire To Order
41007242652 Holder, side panel, front right Enquire To Order
Photo Part No Description Price (each) Stock
41007336459 Connection,holder,side panel,front left Enquire To Order
41007336460 Connection,holder,side panel,front right Enquire To Order
Photo Part No Description Price (each) Stock
41357242655 Holder, deformation element, front Enquire To Order
Photo Part No Description Price (each) Stock
41357242653 Deformation element, front left Enquire To Order
41357242654 Deformation element, front right Enquire To Order
Photo Part No Description Price (each) Stock
41357242657 Deformation element, middle left Enquire To Order
41357242658 Deformation element, middle right Enquire To Order
Photo Part No Description Price (each) Stock
41007336461 Deformation element, rear left Enquire To Order
41007336462 Deformation element, rear right Enquire To Order
Photo Part No Description Price (each) Stock
41007271084 Bracket, side panel, center Enquire To Order
Photo Part No Description Price (each) Stock
41117174365 Bracket, side panel column A Enquire To Order
41009624949 Bracket, side panel column A Enquire To Order
Photo Part No Description Price (each) Stock
41007271083 Bracket, wash water container Enquire To Order
Photo Part No Description Price (each) Stock
41007371501 Bracket, side panel, entrance left Enquire To Order
41007371502 Bracket, side panel, entrance, right Enquire To Order
Photo Part No Description Price (each) Stock
7119904459 Hex Bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
63127068171 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
7147133884 Body nut Enquire To Order
Photo Part No Description Price (each) Stock
63127280779 Compensating element Enquire To Order
Photo Part No Description Price (each) Stock
7149112449 Torx-bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
7129905411 Hex nut Enquire To Order
Photo Part No Description Price (each) Stock
51147442232 Emblem Enquire To Order
51147222598 Emblem Enquire To Order
Photo Part No Description Price (each) Stock
51647304705 Umbrella storage, left Enquire To Order
51647304706 Umbrella storage, right Enquire To Order
Photo Part No Description Price (each) Stock
41007307275 Bracket, left Enquire To Order
41007307276 Bracket, left Enquire To Order
Photo Part No Description Price (each) Stock
11127501588 Rubber grommet Enquire To Order
Photo Part No Description Price (each) Stock
7119907237 Screw, self tapping Enquire To Order
View All

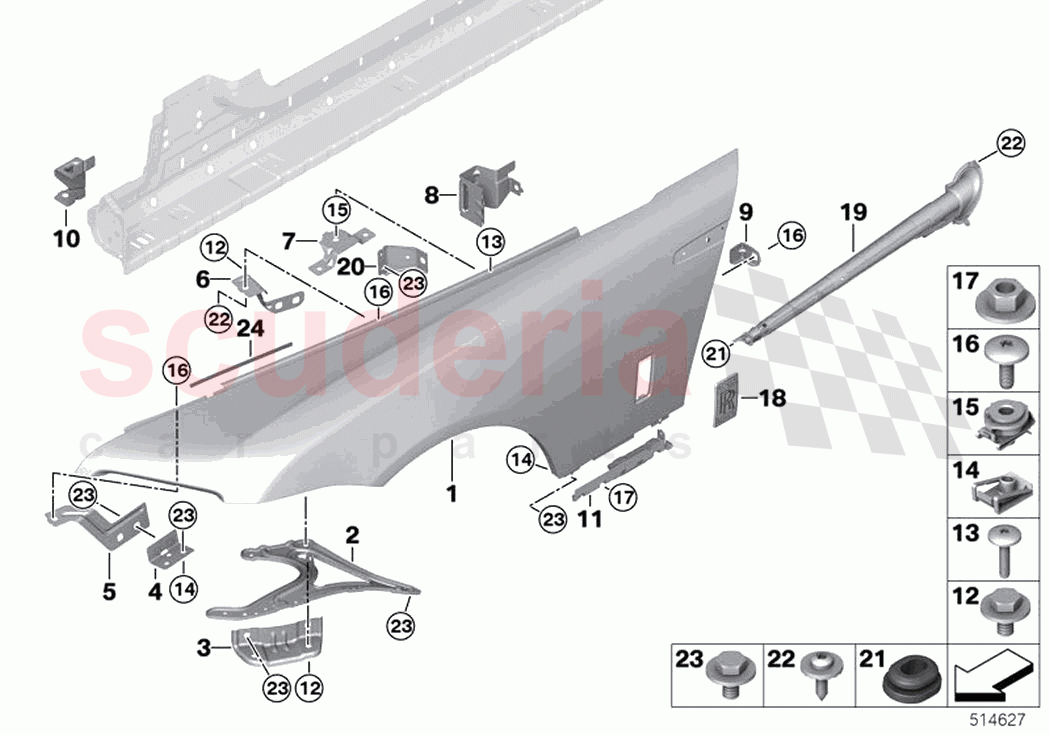

Front side panel Mounting parts of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 51117277848
Scuff protection film 		- 1 Enquire
- 83190301421
Blind rivet N3
from 01.2025 		- 2 Enquire
- 83192158654
Body adhesive K5
50 ML; from 01.2025 		- 1 Enquire
- 83192211217
Cleaner R1
100ML; from 01.2025 		- 1 Enquire
1 41007336469
Side panel, front left 		- 1 Enquire
1 41007336470
Side panel, front right 		- 1 Enquire
2 41007242651
Holder, side panel, front left 		- 1 Enquire
2 41007242652
Holder, side panel, front right 		- 1 Enquire
3 41007336459
Connection,holder,side panel,front left 		- 1 Enquire
3 41007336460
Connection,holder,side panel,front right 		- 1 Enquire
4 41357242655
Holder, deformation element, front 		- 2 Enquire
5 41357242653
Deformation element, front left 		- 1 Enquire
5 41357242654
Deformation element, front right 		- 1 Enquire
6 41357242657
Deformation element, middle left 		- 1 Enquire
6 41357242658
Deformation element, middle right 		- 1 Enquire
7 41007336461
Deformation element, rear left 		- 1 Enquire
7 41007336462
Deformation element, rear right 		- 1 Enquire
8 41007271084
Bracket, side panel, center 		- 2 Enquire
9 41117174365
Bracket, side panel column A
from 01.2025 		- 1 Enquire
9 41009624949
Bracket, side panel column A 		- 1 Enquire
10 41007271083
Bracket, wash water container 		- 1 Enquire
11 41007371501
Bracket, side panel, entrance left 		- 1 Enquire
11 41007371502
Bracket, side panel, entrance, right 		- 1 Enquire
12 7119904459
Hex Bolt with washer
M6X12-U2-8.8 		- - Enquire
13 63127068171
Fillister head screw
ISA M6X28 		- - Enquire
14 7147133884
Body nut
M6 		- - Enquire
15 63127280779
Compensating element 		- - Enquire
16 7149112449
Torx-bolt with washer 		- - Enquire
17 7129905411
Hex nut
BM6-8-ZNNIV SI 		- - Enquire
18 51147442232
Emblem
BLACK BADGE; to 08.2016 		- 2 Enquire
18 51147222598
Emblem 		- 2 Enquire
19 51647304705
Umbrella storage, left 		- 1 Enquire
19 51647304706
Umbrella storage, right 		- 1 Enquire
20 41007307275
Bracket, left 		- 1 Enquire
20 41007307276
Bracket, left 		- 1 Enquire
21 11127501588
Rubber grommet 		- 2 Enquire
22 7119907237
Screw, self tapping
4,8X16 		- 3 Enquire
