Find Your Part

View All

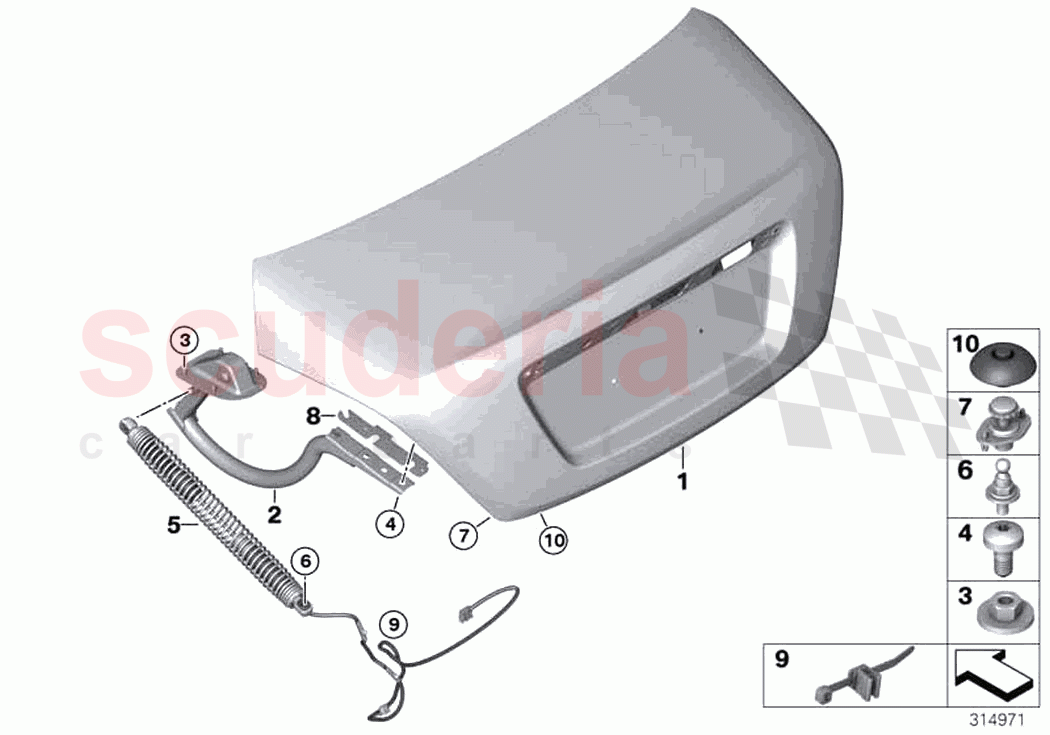

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41007312264	Trunk lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207065538	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147153762	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41637184053	Ball pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51247226669	Stop buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61139200225	Cable strap with bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147221349	Blind plug	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	41007312264	Trunk lid	41007312264 Trunk lid	-	1	Enquire
2	41007312265	Left trunk lid hinge	41007312265 Left trunk lid hinge	-	1	Enquire
2	41007312266	Right trunk lid hinge	41007312266 Right trunk lid hinge	-	1	Enquire
3	52207065538	Hex nut with plate	52207065538 Hex nut with plate M8	-	-	Enquire
4	7147153762	Torx bolt	7147153762 Torx bolt ISA M8X19,5	-	-	Enquire
5	51247301523	Spindle drive, left	51247301523 Spindle drive, left	-	1	Enquire
5	51247301524	Spindle drive, right	51247301524 Spindle drive, right	-	1	Enquire
6	41637184053	Ball pin	41637184053 Ball pin	-	2	Enquire
7	51247226669	Stop buffer	51247226669 Stop buffer	-	2	Enquire
8	41007342313	Spacer 1.0	41007342313 Spacer 1.0	-	-	Enquire
8	41007342315	Shim 0.5	41007342315 Shim 0.5	-	-	Enquire
9	61139200225	Cable strap with bracket	61139200225 Cable strap with bracket L=200MM	-	2	Enquire
10	7147221349	Blind plug	7147221349 Blind plug D=6,5MM	-	2	Enquire
