WHEELHOUSE/ENGINE SUPPORT of Rolls Royce Rolls Royce Phantom Extended Wheelbase

View All

Rolls Royce Phantom Extended Wheelbase - WHEELHOUSE/ENGINE SUPPORT

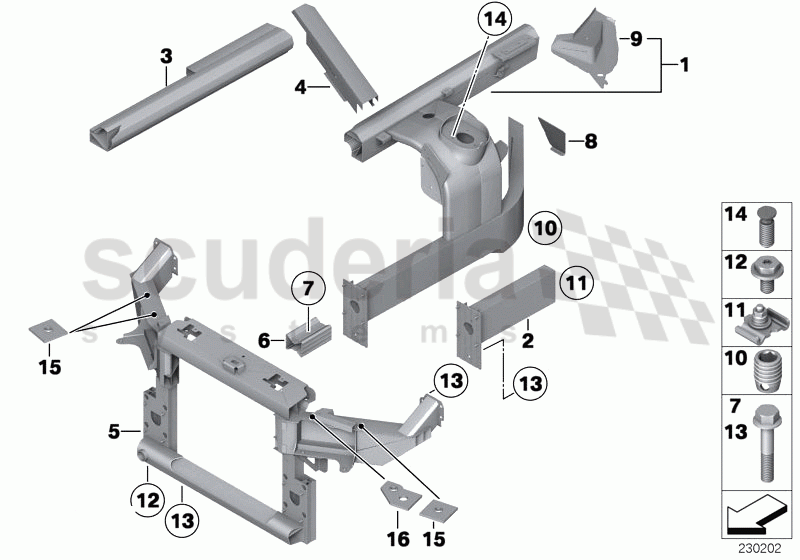

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41117128709	Front left wheelhouse	Enquire	To Order
	41117128710	Front right wheelhouse	Enquire	To Order
	41117275057	Front left wheelhouse	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41117195367	SECTION OF LEFT ENGINE SUPPORT	Enquire	To Order
	41117195368	SECTION OF RIGHT ENGINE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007274979	Wheel housing strut, front left	Enquire	To Order
	41007274980	Wheel housing strut, front right	Enquire	To Order
	41117116157	Wheel housing strut, front left	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41117116211	Support, carrier support, left	Enquire	To Order
	41117116212	Support, carrier support, right	Enquire	To Order
	41117195363	Support, carrier support, left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41007274938	FRONT PANEL	Enquire	To Order
	51177116961	FRONT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117122184	Repair element, engine support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41117006311	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41147116201	LEFT SUPPORTING STRUT REINFORCEMENT	Enquire	To Order
	41147116202	RIGHT SUPPORTING STRUT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41147116169	Cover panel, supporting strut, left	Enquire	To Order
	41147116170	Cover panel, supporting strut, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147141729	Threaded plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41118386006	EARTH PIN	Enquire	To Order
	41246919376	Earth pin	Enquire	To Order
	41246919377	Earth pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149112451	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149112450	Hex Bolt with washer	Enquire	To Order
	41627007646	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41128266111	Coarse-threaded bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357158631	Nut plate, outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357158632	Nut plate, inner	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	41118386006	EARTH PIN	41118386006 EARTH PIN M6	-	-	Enquire
-	41147116201	LEFT SUPPORTING STRUT REINFORCEMENT	41147116201 LEFT SUPPORTING STRUT REINFORCEMENT	-	-	Enquire
-	41147116202	RIGHT SUPPORTING STRUT REINFORCEMENT	41147116202 RIGHT SUPPORTING STRUT REINFORCEMENT	-	-	Enquire
1	41117128709	Front left wheelhouse	41117128709 Front left wheelhouse BASIS	-	-	Enquire
1	41117128710	Front right wheelhouse	41117128710 Front right wheelhouse BASIS	-	-	Enquire
1	41117275057	Front left wheelhouse	41117275057 Front left wheelhouse JAPAN	-	-	Enquire
1	41117275058	Front right wheelhouse	41117275058 Front right wheelhouse JAPAN	-	-	Enquire
2	41117195367	SECTION OF LEFT ENGINE SUPPORT	41117195367 SECTION OF LEFT ENGINE SUPPORT BASIS	-	-	Enquire
2	41117195368	SECTION OF RIGHT ENGINE SUPPORT	41117195368 SECTION OF RIGHT ENGINE SUPPORT BASIS	-	-	Enquire
3	41007274979	Wheel housing strut, front left	41007274979 Wheel housing strut, front left JAPAN	-	-	Enquire
3	41007274980	Wheel housing strut, front right	41007274980 Wheel housing strut, front right JAPAN	-	-	Enquire
3	41117116157	Wheel housing strut, front left	41117116157 Wheel housing strut, front left BASIS	-	-	Enquire
3	41117116158	Wheel housing strut, front right	41117116158 Wheel housing strut, front right BASIS	-	-	Enquire
3	41117195369	Wheel housing strut, front left	41117195369 Wheel housing strut, front left BASIS	-	-	Enquire
3	41117195370	Wheel housing strut, front right	41117195370 Wheel housing strut, front right BASIS	-	-	Enquire
4	41117116211	Support, carrier support, left	41117116211 Support, carrier support, left	-	-	Enquire
4	41117116212	Support, carrier support, right	41117116212 Support, carrier support, right	-	-	Enquire
4	41117195363	Support, carrier support, left	41117195363 Support, carrier support, left	-	-	Enquire
4	41117195364	Support, carrier support, right	41117195364 Support, carrier support, right	-	-	Enquire
5	41007274938	FRONT PANEL	41007274938 FRONT PANEL JAPAN	-	-	Enquire
5	51177116961	FRONT PANEL	51177116961 FRONT PANEL	-	-	Enquire
6	41117122184	Repair element, engine support	41117122184 Repair element, engine support	-	-	Enquire
7	41117006311	Hex Bolt	41117006311 Hex Bolt M8X65	-	-	Enquire
8	41147116201	LEFT SUPPORTING STRUT REINFORCEMENT	41147116201 LEFT SUPPORTING STRUT REINFORCEMENT	-	-	Enquire
8	41147116202	RIGHT SUPPORTING STRUT REINFORCEMENT	41147116202 RIGHT SUPPORTING STRUT REINFORCEMENT	-	-	Enquire
9	41147116169	Cover panel, supporting strut, left	41147116169 Cover panel, supporting strut, left	-	-	Enquire
9	41147116170	Cover panel, supporting strut, right	41147116170 Cover panel, supporting strut, right	-	-	Enquire
10	7147141729	Threaded plug	7147141729 Threaded plug M12X1.5	-	-	Enquire
11	41118386006	EARTH PIN	41118386006 EARTH PIN M6	-	-	Enquire
11	41246919376	Earth pin	41246919376 Earth pin M8	-	-	Enquire
11	41246919377	Earth pin	41246919377 Earth pin M6	-	-	Enquire
12	7149112451	Hex Bolt with washer	7149112451 Hex Bolt with washer M12X1,5X50 ZNS3	-	-	Enquire
13	7149112450	Hex Bolt with washer	7149112450 Hex Bolt with washer M8X24	-	-	Enquire
13	41627007646	Hex Bolt with washer	41627007646 Hex Bolt with washer M8X24	-	-	Enquire
14	41128266111	Coarse-threaded bolt	41128266111 Coarse-threaded bolt	-	-	Enquire
15	41357158631	Nut plate, outer	41357158631 Nut plate, outer	-	-	Enquire
16	41357158632	Nut plate, inner	41357158632 Nut plate, inner	-	-	Enquire
