SINGLE COMPONENTS FOR TRUNK LID of Rolls Royce Rolls Royce Phantom Extended Wheelbase

View All

Rolls Royce Phantom Extended Wheelbase - SINGLE COMPONENTS FOR TRUNK LID

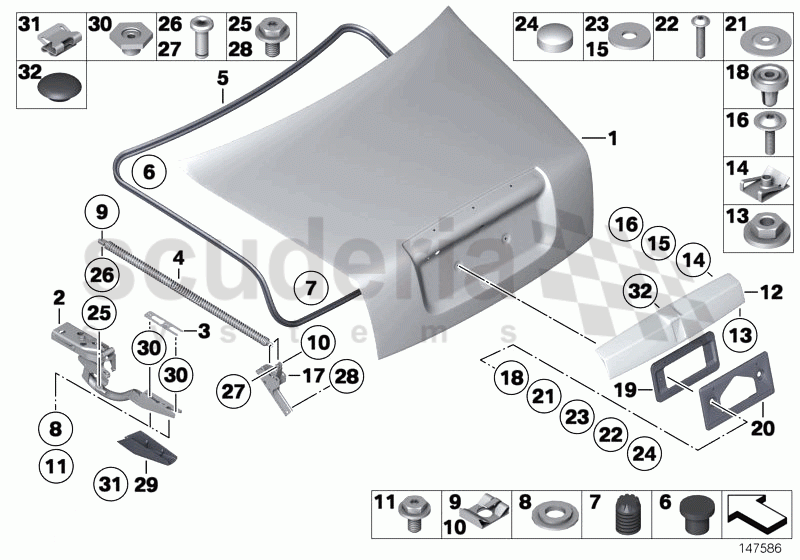

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41627130167	Trunk lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41627194217	LEFT TRUNK LID HINGE	Enquire	To Order
	41627194218	RIGHT TRUNK LID HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51247076579	Spacer plate, boot lid/tailgate hinge	Enquire	To Order
	51247120531	Spacer plate, boot lid/tailgate hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51247040732	Spring, trunk lid	Enquire	To Order
	51247046065	Spring, trunk lid	Enquire	To Order
	51247162323	Spring, trunk lid	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51717040735	Trunk lid sealing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51718407016	Blind plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51248254063	Stop buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51247077102	Locating plate, boot lid/tailgate hinge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904492	Circlip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904566	Circlip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41617065160	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

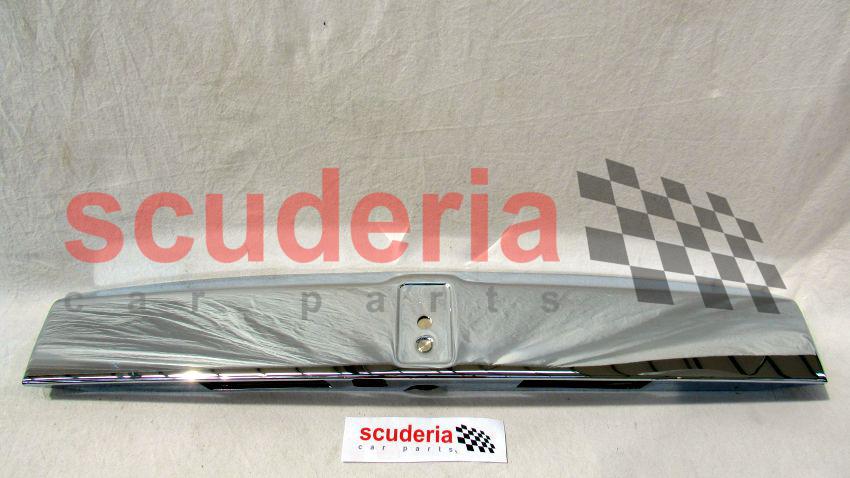

	51137045903	Grip, trunk lid	Enquire	To Order
	51137171285	Grip, trunk lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11129157029	Flange nut with washer	Enquire	To Order
	51177010328	Flange nut with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61131372033	Body nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54318234668	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41627073985	Bracket, tension spring, left	Enquire	To Order
	41627073986	Bracket, tension spring, right	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	61131372033	Body nut	61131372033 Body nut M5	-	-	Enquire
1	41627130167	Trunk lid	41627130167 Trunk lid	-	-	Enquire
2	41627194217	LEFT TRUNK LID HINGE	41627194217 LEFT TRUNK LID HINGE	-	-	Enquire
2	41627194218	RIGHT TRUNK LID HINGE	41627194218 RIGHT TRUNK LID HINGE	-	-	Enquire
3	51247076579	Spacer plate, boot lid/tailgate hinge	51247076579 Spacer plate, boot lid/tailgate hinge D: 2MM	-	-	Enquire
3	51247120531	Spacer plate, boot lid/tailgate hinge	51247120531 Spacer plate, boot lid/tailgate hinge D: 1 MM	-	-	Enquire
4	51247040732	Spring, trunk lid	51247040732 Spring, trunk lid	-	-	Enquire
4	51247046065	Spring, trunk lid	51247046065 Spring, trunk lid	-	-	Enquire
4	51247162323	Spring, trunk lid	51247162323 Spring, trunk lid	-	-	Enquire
4	51247201466	Spring, trunk lid	51247201466 Spring, trunk lid	-	-	Enquire
5	51717040735	Trunk lid sealing	51717040735 Trunk lid sealing L: 3960 MM	-	-	Enquire
6	51718407016	Blind plug	51718407016 Blind plug D=6,5MM	-	-	Enquire
7	51248254063	Stop buffer	51248254063 Stop buffer	-	-	Enquire
8	51247077102	Locating plate, boot lid/tailgate hinge	51247077102 Locating plate, boot lid/tailgate hinge	-	-	Enquire
9	7129904492	Circlip	7129904492 Circlip B8	-	-	Enquire
10	7129904566	Circlip	7129904566 Circlip B6	-	-	Enquire
11	41617065160	Hex Bolt with washer	41617065160 Hex Bolt with washer M8X24	-	-	Enquire
12	51137045903	Grip, trunk lid	51137045903 Grip, trunk lid F1 CHROME	-	-	Enquire
12	51137171285	Grip, trunk lid	51137171285 Grip, trunk lid BLUE CHROME	-	-	Enquire
13	11129157029	Flange nut with washer	11129157029 Flange nut with washer	-	-	Enquire
13	51177010328	Flange nut with washer	51177010328 Flange nut with washer M5	-	-	Enquire
14	61131372033	Body nut	61131372033 Body nut M5	-	-	Enquire
16	54318234668	Torx-bolt with washer	54318234668 Torx-bolt with washer ISA M5X8	-	-	Enquire
17	41627073985	Bracket, tension spring, left	41627073985 Bracket, tension spring, left	-	-	Enquire
17	41627073986	Bracket, tension spring, right	41627073986 Bracket, tension spring, right	-	-	Enquire
