Find Your Part

Side panel, front of Rolls Royce Rolls Royce Phantom Extended Wheelbase

View All

Rolls Royce Phantom Extended Wheelbase - Side panel, front

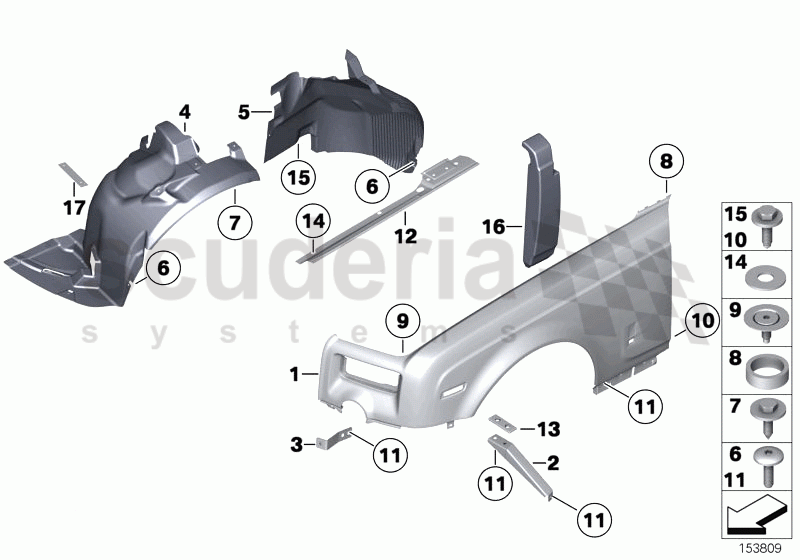

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41217118575	Side panel, front left	Enquire	To Order
	41217118576	Side panel, front right	Enquire	To Order
	41357040149	Side panel, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41307116289	Bracket, side panel, wheel opening left	Enquire	To Order
	41307116290	Bracket, side panel, wheel opening right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41307116287	Bracket, side panel/radiator, left	Enquire	To Order
	41307116288	Bracket, side panel/radiator, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717195157	Cover, wheel housing, front left	Enquire	To Order
	51717211361	Abdeckung, Radkasten, vorn links	Enquire	To Order
	51717211362	Abdeckung, Radkasten, vorn rechts	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51717049477	Cover f rear wheelhouse, front left	Enquire	To Order
	51717049478	Cover f rear wheelhouse, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147156542	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147129161	Hex head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357068443	Spacer bush, round	Enquire	To Order
	41357132033	Spacer bush, round	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147078246	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904459	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007274941	FRONT LEFT FENDER SEALING	Enquire	To Order
	41007274942	FRONT RIGHT FENDER SEALING	Enquire	To Order
	41357129921	FRONT LEFT FENDER SEALING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41357129925	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147117992	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903995	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51487132467	Sound insulation	Enquire	To Order
	51487132468	Sound insulation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41217134545	Spacer plate	Enquire	To Order
	41217135105	Spacer plate	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	41217118575	Side panel, front left	41217118575 Side panel, front left	-	-	Enquire
1	41217118576	Side panel, front right	41217118576 Side panel, front right	-	-	Enquire
1	41357040149	Side panel, front left	41357040149 Side panel, front left	-	-	Enquire
1	41357040150	Side panel, front right	41357040150 Side panel, front right	-	-	Enquire
2	41307116289	Bracket, side panel, wheel opening left	41307116289 Bracket, side panel, wheel opening left	-	-	Enquire
2	41307116290	Bracket, side panel, wheel opening right	41307116290 Bracket, side panel, wheel opening right	-	-	Enquire
3	41307116287	Bracket, side panel/radiator, left	41307116287 Bracket, side panel/radiator, left	-	-	Enquire
3	41307116288	Bracket, side panel/radiator, right	41307116288 Bracket, side panel/radiator, right	-	-	Enquire
4	51717195157	Cover, wheel housing, front left	51717195157 Cover, wheel housing, front left	-	-	Enquire
4	51717211361	Abdeckung, Radkasten, vorn links	51717211361 Abdeckung, Radkasten, vorn links	-	-	Enquire
4	51717211362	Abdeckung, Radkasten, vorn rechts	51717211362 Abdeckung, Radkasten, vorn rechts	-	-	Enquire
4	51747195158	Cover, wheel housing, front right	51747195158 Cover, wheel housing, front right	-	-	Enquire
5	51717049477	Cover f rear wheelhouse, front left	51717049477 Cover f rear wheelhouse, front left	-	-	Enquire
5	51717049478	Cover f rear wheelhouse, front right	51717049478 Cover f rear wheelhouse, front right	-	-	Enquire
6	7147156542	Fillister head screw	7147156542 Fillister head screw ISA M6X14 MK	-	-	Enquire
7	7147129161	Hex head screw	7147129161 Hex head screw ST 4.8X18	-	-	Enquire
8	41357068443	Spacer bush, round	41357068443 Spacer bush, round D=3MM	-	-	Enquire
8	41357132033	Spacer bush, round	41357132033 Spacer bush, round D=7MM	-	-	Enquire
9	7147078246	Torx-bolt with washer	7147078246 Torx-bolt with washer ISA M6X15	-	-	Enquire
10	7119904459	Hex Bolt with washer	7119904459 Hex Bolt with washer M6X12-U2-8.8	-	-	Enquire
11	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	-	Enquire
12	41007274941	FRONT LEFT FENDER SEALING	41007274941 FRONT LEFT FENDER SEALING JAPAN	-	-	Enquire
12	41007274942	FRONT RIGHT FENDER SEALING	41007274942 FRONT RIGHT FENDER SEALING JAPAN	-	-	Enquire
12	41357129921	FRONT LEFT FENDER SEALING	41357129921 FRONT LEFT FENDER SEALING	-	-	Enquire
12	41357129922	FRONT RIGHT FENDER SEALING	41357129922 FRONT RIGHT FENDER SEALING	-	-	Enquire
13	41357129925	Spacer plate	41357129925 Spacer plate	-	-	Enquire
14	7147117992	Spacer	7147117992 Spacer D=20,H=2,ID=6,4	-	-	Enquire
15	7119903995	Hex Bolt	7119903995 Hex Bolt M6X20-U2-8.8	-	-	Enquire
16	51487132467	Sound insulation	51487132467 Sound insulation LH	-	-	Enquire
16	51487132468	Sound insulation	51487132468 Sound insulation RH	-	-	Enquire
17	41217134545	Spacer plate	41217134545 Spacer plate 1MM	-	-	Enquire
17	41217135105	Spacer plate	41217135105 Spacer plate 2MM	-	-	Enquire
