Exhaust turbocharger with lubrication of Rolls Royce Rolls Royce Ghost RR4(2017-2019)

View All

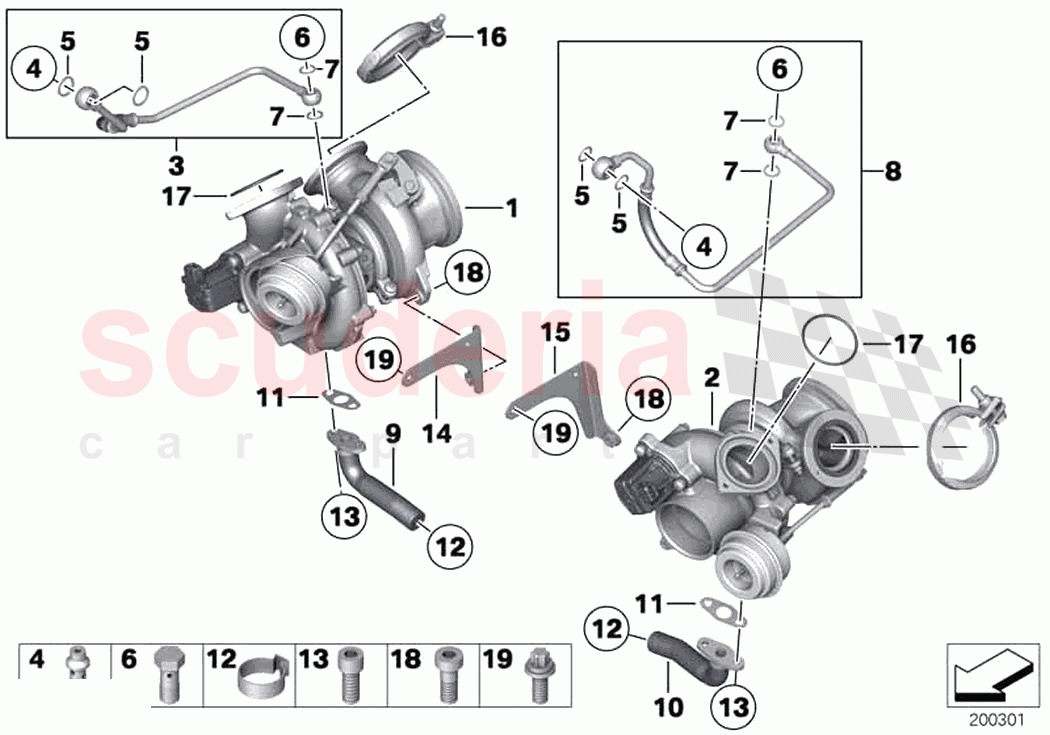

Rolls Royce Ghost RR4(2017-2019) - Exhaust turbocharger with lubrication (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11655A01FC8	Turbo charger	Enquire	To Order
	11657646094	Turbo charger	Enquire	To Order
	11657562050	Turbo charger	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11655A01FC9	Turbo charger	Enquire	To Order
	11657646095	Turbo charger	Enquire	To Order
	11657562051	Turbo charger	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11427562140	Oil pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11427602034	Hollow bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119963201	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11428627197	Hollow bolt	Enquire	To Order
	11429847270	Hollow bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119963072	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11427562141	Oil pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11151726340	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905536	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11627562128	Support plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11657562129	Support plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11657620507	V-band clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11657535440	O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904477	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905905	ASA-Bolt	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	11427562142	Return pipe	11427562142 Return pipe ZYL. 1-6	-	1	Enquire
-	11427577017	Gasket Asbestos Free	11427577017 Gasket Asbestos Free	-	1	Enquire
-	11427562143	Return pipe	11427562143 Return pipe ZYL. 7-12	-	1	Enquire
1	11655A01FC8	Turbo charger	11655A01FC8 Turbo charger ZYL. 1-6	-	1	Enquire
1	11657646094	Turbo charger	11657646094 Turbo charger ZYL. 1-6; from 01.2020	-	1	Enquire
1	11657562050	Turbo charger	11657562050 Turbo charger ZYL. 1-6	-	1	Enquire
2	11655A01FC9	Turbo charger	11655A01FC9 Turbo charger ZYL. 7-12	-	1	Enquire
2	11657646095	Turbo charger	11657646095 Turbo charger ZYL. 7-12; from 01.2020	-	1	Enquire
2	11657562051	Turbo charger	11657562051 Turbo charger ZYL. 7-12	-	1	Enquire
3	11427562140	Oil pipe	11427562140 Oil pipe ZYL. 1-6	-	1	Enquire
4	11427602034	Hollow bolt	11427602034 Hollow bolt M14	-	2	Enquire
5	7119963201	Gasket ring	7119963201 Gasket ring A14X18-CU	-	4	Enquire
6	11428627197	Hollow bolt	11428627197 Hollow bolt M10; from 11.2020	-	2	Enquire
6	11429847270	Hollow bolt	11429847270 Hollow bolt M10	-	2	Enquire
7	7119963072	Gasket ring	7119963072 Gasket ring A10X13,5-CU	-	4	Enquire
8	11427562141	Oil pipe	11427562141 Oil pipe ZYL. 7-12	-	1	Enquire
12	11151726340	Clamp	11151726340 Clamp	-	2	Enquire
13	7129905536	ISA screw	7129905536 ISA screw M6X16-8.8-ZNNIV	-	4	Enquire
14	11627562128	Support plate	11627562128 Support plate ZYL. 1-6	-	1	Enquire
15	11657562129	Support plate	11657562129 Support plate ZYL. 7-12	-	1	Enquire
16	11657620507	V-band clamp	11657620507 V-band clamp	-	2	Enquire
17	11657535440	O-ring	11657535440 O-ring 52X3	-	2	Enquire
18	7129904477	ISA screw	7129904477 ISA screw M8X25-10.9-ZNS3	-	2	Enquire
19	7129905905	ASA-Bolt	7129905905 ASA-Bolt M6X16 ZNNIV SI	-	4	Enquire
