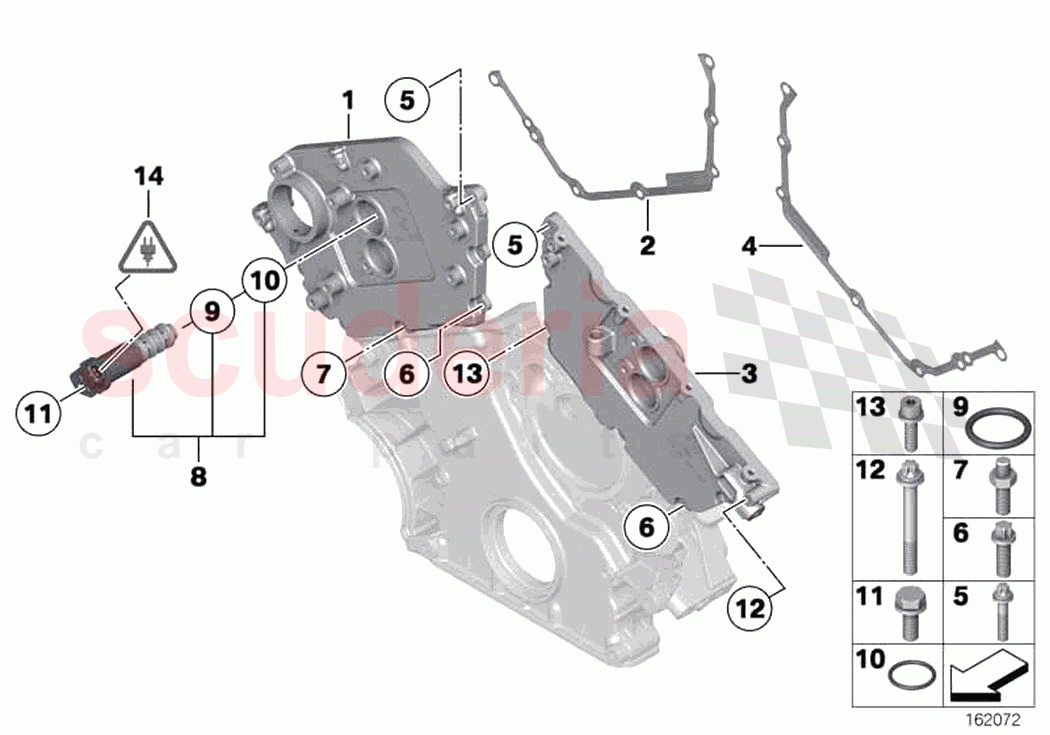

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11148699005	Timing case cover, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11147578949	Gasket Steel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11148699008	Timing case cover, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907367	ASA-Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905568	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11147584157	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11368605123	Solenoid valve (SOLV)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11367548459	Set of gaskets	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11367561852	O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904524	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905598	ASA-Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905516	Torx-bolt with washer	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	83190404517	Liquid sealant, Loctite 5970	83190404517 Liquid sealant, Loctite 5970 50ML	-	1	Enquire
1	11148699005	Timing case cover, top	11148699005 Timing case cover, top ZYL. 1-6	-	1	Enquire
2	11147578949	Gasket Steel	11147578949 Gasket Steel	-	1	Enquire
3	11148699008	Timing case cover, top	11148699008 Timing case cover, top ZYL. 7-12	-	1	Enquire
5	7129907367	ASA-Bolt	7129907367 ASA-Bolt M6X30-U1	-	3	Enquire
6	7129905568	Torx bolt	7129905568 Torx bolt M6X20-ZNNIV SI	-	8	Enquire
7	11147584157	Stud bolt	11147584157 Stud bolt M6/M5	-	1	Enquire
8	11368605123	Solenoid valve (SOLV)	11368605123 Solenoid valve (SOLV)	-	4	Enquire
9	11367548459	Set of gaskets	11367548459 Set of gaskets	-	4	Enquire
10	11367561852	O-ring	11367561852 O-ring 20X1,5	-	4	Enquire
11	7119904524	Hex Bolt with washer	7119904524 Hex Bolt with washer M6X16-U1-8.8	-	4	Enquire
12	7129905598	ASA-Bolt	7129905598 ASA-Bolt M6X50-U1	-	1	Enquire
13	7129905516	Torx-bolt with washer	7129905516 Torx-bolt with washer M6X20-U1-8.8	-	1	Enquire
