Name: Cylinder head Mounting parts
Rating: 4.6 (1 reviews)

View All

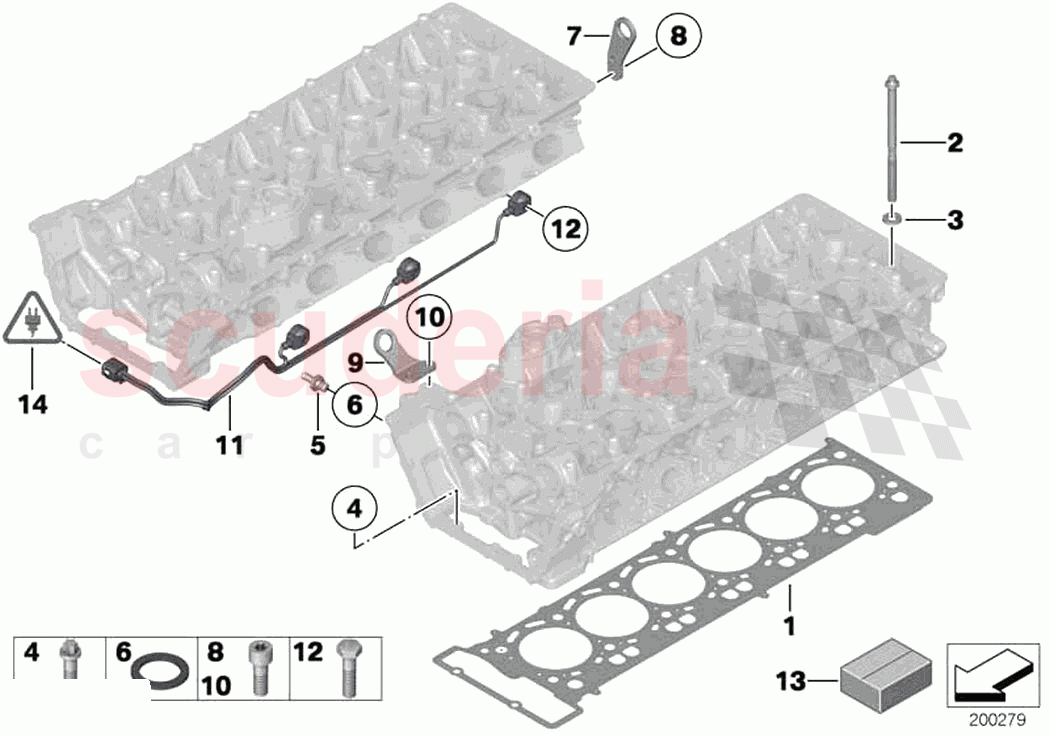

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11128672109	Cylinder head gasket asbestos-free	$217.40	To Order
	11128672121	Cylinder head gasket asbestos-free	$293.49	To Order

Photo	Part No	Description	Price (each)	Stock
	11127582455	Set Bolt Cylinder Head	$77.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11127583138	Washer	$9.52	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907138	External Torx self-locking	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11128626647	Connecting branch, microencapsulated	$36.22	To Order

Photo	Part No	Description	Price (each)	Stock
	7119963041	Gasket ring	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	11127584361	Shackle	$15.74	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905769	ISA screw	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	11127584362	Shackle	$20.60	To Order

Photo	Part No	Description	Price (each)	Stock
	7119902901	Hex Bolt	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11127594765	Gasket set cylinder head asbestos free	$911.43	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	11128672109	Cylinder head gasket asbestos-free	11128672109 Cylinder head gasket asbestos-free 0,75MM	$217.40	2
1	11128672121	Cylinder head gasket asbestos-free	11128672121 Cylinder head gasket asbestos-free 1,05MM (+0,3)	$293.49	2
2	11127582455	Set Bolt Cylinder Head	11127582455 Set Bolt Cylinder Head M11X175	$77.05	2
3	11127583138	Washer	11127583138 Washer	$9.52	28
4	7129907138	External Torx self-locking	7129907138 External Torx self-locking M8X30	$3.40	4
5	11128626647	Connecting branch, microencapsulated	11128626647 Connecting branch, microencapsulated M8X1	$36.22	2
6	7119963041	Gasket ring	7119963041 Gasket ring A8X11,5-AL; from 08.2013	$0.43	2
7	11127584361	Shackle	11127584361 Shackle	$15.74	1
8	7129905769	ISA screw	7129905769 ISA screw M8X22-ZNNIV SI	$2.93	2
9	11127584362	Shackle	11127584362 Shackle	$20.60	1
11	13627591661	Ping Sensor	13627591661 Ping Sensor 1-6	$172.15	1
11	13627591662	Ping Sensor	13627591662 Ping Sensor 7-12	$172.15	1
12	7119902901	Hex Bolt	7119902901 Hex Bolt M8X30-8.8-ZNS3	$1.74	6
13	11127594765	Gasket set cylinder head asbestos free	11127594765 Gasket set cylinder head asbestos free	$911.43	1
