Seat rear cushion cover basic seat of Rolls Royce Rolls Royce Ghost RR4(2017-2019)

View All

Rolls Royce Ghost RR4(2017-2019) - Seat rear cushion cover basic seat (1)

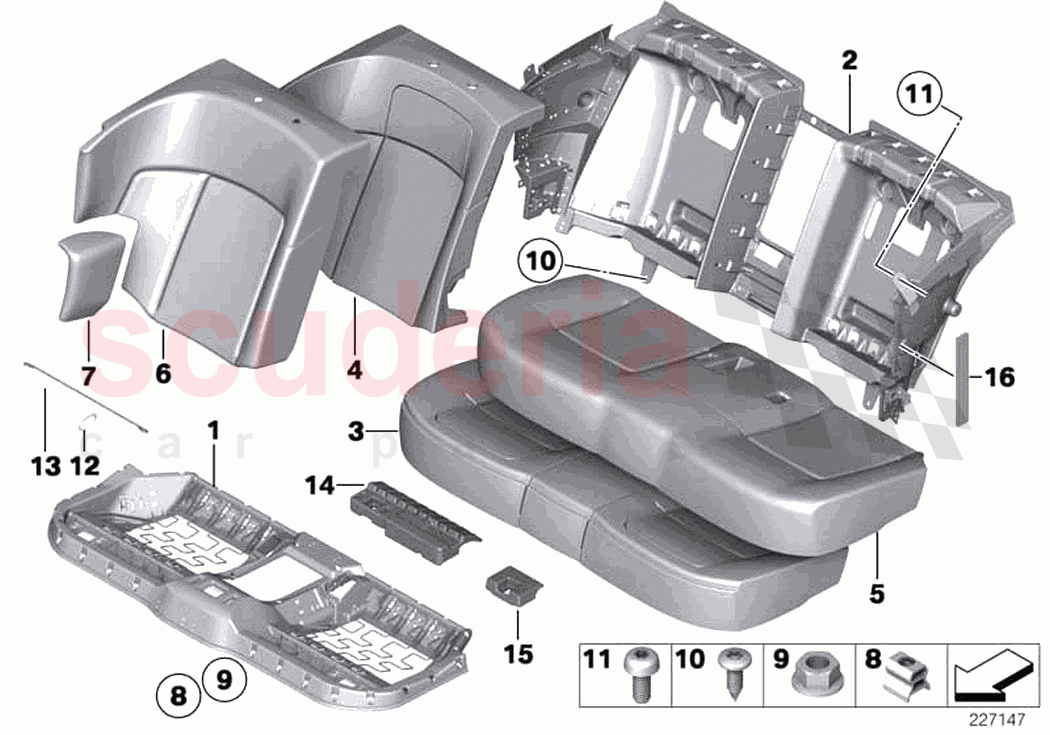

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52209112185	Seat frame	Enquire	To Order
	52207297021	Seat frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52209153357	backrest frame el. fa	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52209182458	Foam section, basic, seat	Enquire	To Order
	52207297025	Foam section, basic, seat	Enquire	To Order
	52207436241	Foam section, basic, seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207260601	Foam pad basic backrest left	Enquire	To Order
	52207260602	Foam pad basic backrest right	Enquire	To Order
	52207436239	Foam pad basic backrest left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	52207246114	Leather seat cover, rear	Enquire	To Order
	52207309442	Leather seat cover, rear	Enquire	To Order
	52207390688	Leather seat cover, rear	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	52207246119	Cover backrest leather rear left	Enquire	To Order
	52207246120	Cover backrest leather rear right	Enquire	To Order
	52207390693	Cover backrest leather rear left	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	52207248647	Armrest leather left	Enquire	To Order
	52207248648	Armrest leather right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207012902	Bracket, rear seat mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904599	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149171963	Oval-head screw with search tip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147075093	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52101945543	Clamp	Enquire	To Order
	52107075819	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52208129296	Wire-strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107273505	Left support	Enquire	To Order
	52107273506	Right support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107273507	Support, central	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51452353024	Set felt strip adhesive	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	52209112185	Seat frame	52209112185 Seat frame from 09.2011	-	1	Enquire
1	52207297021	Seat frame	52207297021 Seat frame to 09.2011	-	1	Enquire
2	52209153357	backrest frame el. fa	52209153357 backrest frame el. fa	-	1	Enquire
3	52209182458	Foam section, basic, seat	52209182458 Foam section, basic, seat from 09.2011	-	1	Enquire
3	52207297025	Foam section, basic, seat	52207297025 Foam section, basic, seat 09.2011 - 08.2014	-	1	Enquire
3	52207436241	Foam section, basic, seat	52207436241 Foam section, basic, seat to 08.2014	-	1	Enquire
4	52207260601	Foam pad basic backrest left	52207260601 Foam pad basic backrest left from 08.2014	-	1	Enquire
4	52207260602	Foam pad basic backrest right	52207260602 Foam pad basic backrest right from 08.2014	-	1	Enquire
4	52207436239	Foam pad basic backrest left	52207436239 Foam pad basic backrest left to 08.2014	-	1	Enquire
4	52207436240	Foam pad basic backrest right	52207436240 Foam pad basic backrest right to 08.2014	-	1	Enquire
5	52207246114	Leather seat cover, rear	52207246114 Leather seat cover, rear COLOUR NEUTRAL; from 09.2011	-	1	Enquire
5	52207309442	Leather seat cover, rear	52207309442 Leather seat cover, rear COLOUR NEUTRAL; 09.2011 - 08.2014	-	1	Enquire
5	52207390688	Leather seat cover, rear	52207390688 Leather seat cover, rear COLOUR NEUTRAL; to 08.2014	-	1	Enquire
5	52207246122	Leather seat cover, rear	52207246122 Leather seat cover, rear COLOUR NEUTRAL; from 09.2011	-	1	Enquire
5	52207310614	Leather seat cover, rear	52207310614 Leather seat cover, rear COLOUR NEUTRAL; 09.2011 - 08.2014	-	1	Enquire
5	52207390696	Leather seat cover, rear	52207390696 Leather seat cover, rear COLOUR NEUTRAL; to 08.2014	-	1	Enquire
5	52207336328	Leather seat cover, rear	52207336328 Leather seat cover, rear COLOUR NEUTRAL; 08.2012 - 08.2014	-	1	Enquire
5	52207390695	Leather seat cover, rear	52207390695 Leather seat cover, rear COLOUR NEUTRAL; to 08.2014	-	1	Enquire
5	52207390701	Leather seat cover, rear	52207390701 Leather seat cover, rear COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207246119	Cover backrest leather rear left	52207246119 Cover backrest leather rear left COLOUR NEUTRAL; from 08.2014	-	1	Enquire
6	52207246120	Cover backrest leather rear right	52207246120 Cover backrest leather rear right COLOUR NEUTRAL; from 08.2014	-	1	Enquire
6	52207390693	Cover backrest leather rear left	52207390693 Cover backrest leather rear left COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207390694	Cover backrest leather rear right	52207390694 Cover backrest leather rear right COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207246123	Cover backrest leather rear left	52207246123 Cover backrest leather rear left COLOUR NEUTRAL; from 08.2014	-	1	Enquire
6	52207246124	Cover backrest leather rear right	52207246124 Cover backrest leather rear right COLOUR NEUTRAL; from 08.2014	-	1	Enquire
6	52207390699	Cover backrest leather rear left	52207390699 Cover backrest leather rear left COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207390700	Cover backrest leather rear right	52207390700 Cover backrest leather rear right COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207390697	Cover backrest leather rear left	52207390697 Cover backrest leather rear left COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207390698	Cover backrest leather rear right	52207390698 Cover backrest leather rear right COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207390703	Cover backrest leather rear left	52207390703 Cover backrest leather rear left COLOUR NEUTRAL; to 08.2014	-	1	Enquire
6	52207390704	Cover backrest leather rear right	52207390704 Cover backrest leather rear right COLOUR NEUTRAL; to 08.2014	-	1	Enquire
7	52207248647	Armrest leather left	52207248647 Armrest leather left COLOUR NEUTRAL	-	1	Enquire
7	52207248648	Armrest leather right	52207248648 Armrest leather right COLOUR NEUTRAL	-	1	Enquire
8	52207012902	Bracket, rear seat mounting	52207012902 Bracket, rear seat mounting from 09.2011	-	3	Enquire
9	7119904599	Hex nut	7119904599 Hex nut M8-8-ZNT; from 09.2011	-	3	Enquire
10	7149171963	Oval-head screw with search tip	7149171963 Oval-head screw with search tip M8X35	-	2	Enquire
11	7147075093	Fillister head screw	7147075093 Fillister head screw M8X12	-	4	Enquire
12	52101945543	Clamp	52101945543 Clamp 1,6X20X10,1	-	-	Enquire
12	52107075819	Clamp	52107075819 Clamp 1,8X23,6X12,3MM	-	-	Enquire
13	52208129296	Wire-strap	52208129296 Wire-strap L=1800MM	-	-	Enquire
14	52107273505	Left support	52107273505 Left support	-	1	Enquire
14	52107273506	Right support	52107273506 Right support	-	1	Enquire
15	52107273507	Support, central	52107273507 Support, central from 09.2011	-	1	Enquire
16	51452353024	Set felt strip adhesive	51452353024 Set felt strip adhesive	-	1	Enquire
