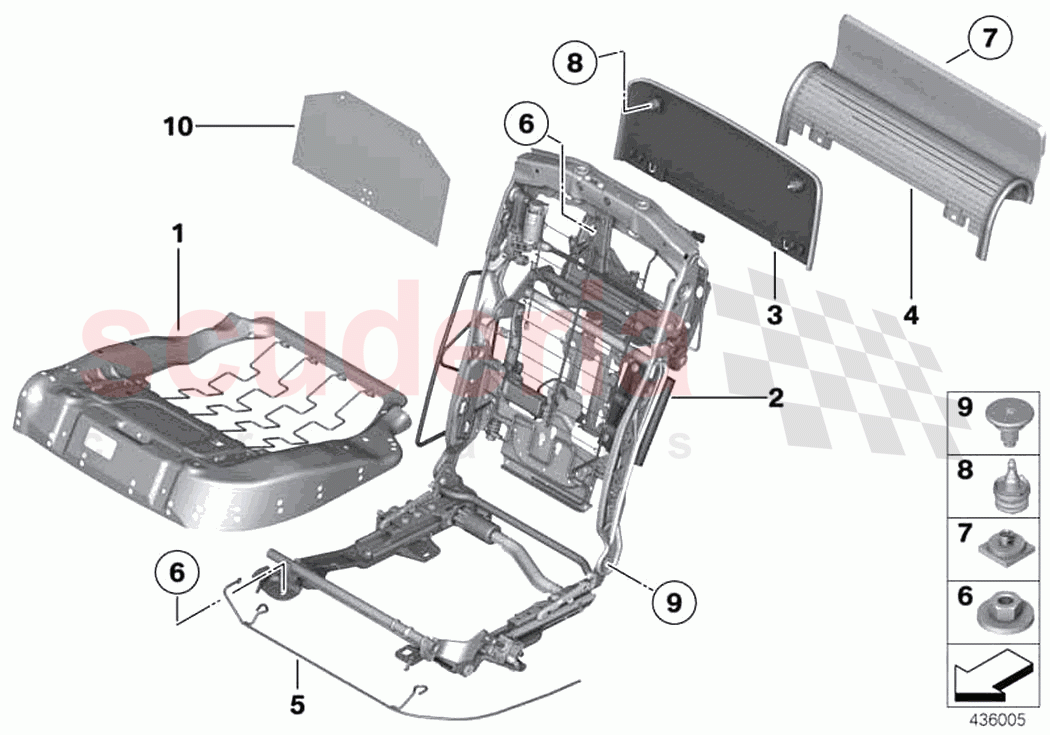

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52209115917	Seat frame, comfort seat, left	Enquire	To Order
	52209115918	Seat frame, comfort seat, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207329521	Seat mechanism, comfort seat, left	Enquire	To Order
	52207329522	Seat mechanism, comfort seat, right	Enquire	To Order
	52207329523	Seat mechanism, comfort seat, left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	52209224609	Slot cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207065538	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207022358	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207220722	Fixing kit, clips	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52209181769	Step bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107154934	Cover	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	52209115917	Seat frame, comfort seat, left	52209115917 Seat frame, comfort seat, left	-	1	Enquire
1	52209115918	Seat frame, comfort seat, right	52209115918 Seat frame, comfort seat, right	-	1	Enquire
2	52207329521	Seat mechanism, comfort seat, left	52207329521 Seat mechanism, comfort seat, left	-	1	Enquire
2	52207329522	Seat mechanism, comfort seat, right	52207329522 Seat mechanism, comfort seat, right	-	1	Enquire
2	52207329523	Seat mechanism, comfort seat, left	52207329523 Seat mechanism, comfort seat, left	-	1	Enquire
2	52207329524	Seat mechanism, comfort seat, right	52207329524 Seat mechanism, comfort seat, right	-	1	Enquire
3	52207255476	Rear panel	52207255476 Rear panel COLOUR NEUTRAL	-	2	Enquire
3	52207346273	Rear panel	52207346273 Rear panel COLOUR NEUTRAL	-	2	Enquire
4	52209224609	Slot cover	52209224609 Slot cover COLOUR NEUTRAL	-	2	Enquire
5	52209182469	Wire, gap covering, left	52209182469 Wire, gap covering, left from 07.2015	-	1	Enquire
5	52209182470	Wire, gap covering, right	52209182470 Wire, gap covering, right from 07.2015	-	1	Enquire
6	52207065538	Hex nut with plate	52207065538 Hex nut with plate M8	-	16	Enquire
7	52207022358	Clip	52207022358 Clip	-	4	Enquire
8	52207220722	Fixing kit, clips	52207220722 Fixing kit, clips	-	2	Enquire
9	52209181769	Step bolt	52209181769 Step bolt M10	-	4	Enquire
10	52107154934	Cover	52107154934 Cover	-	2	Enquire
