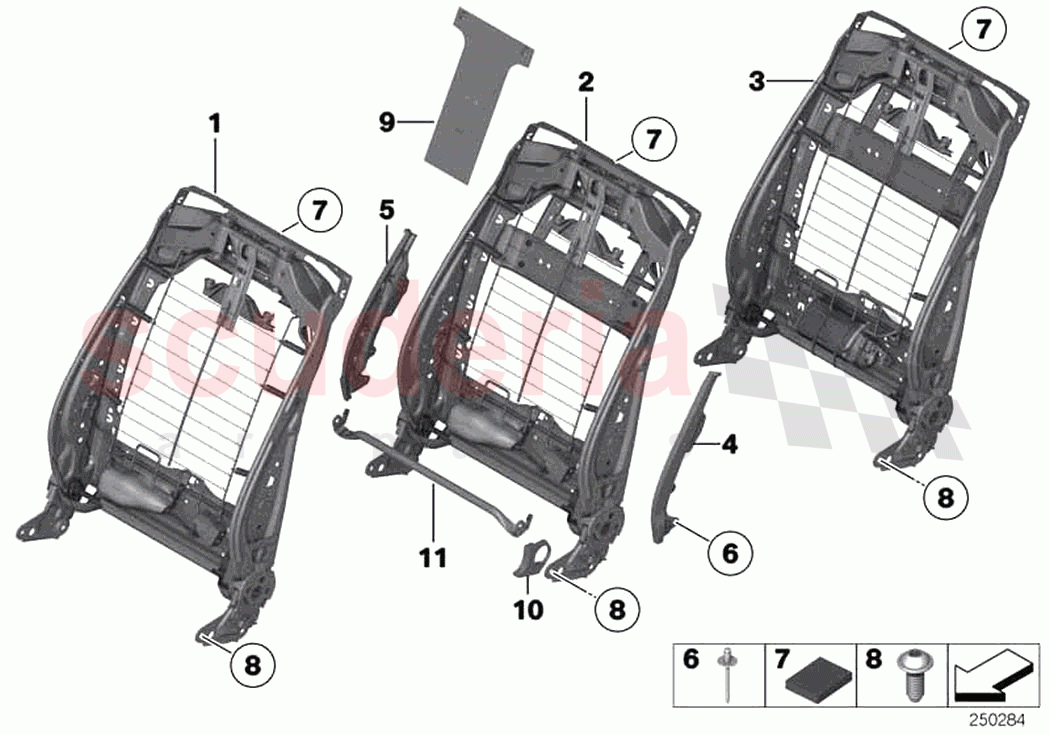

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52109180717	Backrest frame, Basic, electric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107218370	Backrest frame, electrical	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107218371	Backrest frame, electrical	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107224993	Fastening, cover, backrest, left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107224994	Fastening, cover, backrest, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107042164	Blind rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51452353024	Set felt strip adhesive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149159336	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107057431	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207300509	Reinforcing strut	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	52109180717	Backrest frame, Basic, electric	52109180717 Backrest frame, Basic, electric from 08.2014	-	2	Enquire
2	52107218370	Backrest frame, electrical	52107218370 Backrest frame, electrical from 08.2014	-	2	Enquire
3	52107218371	Backrest frame, electrical	52107218371 Backrest frame, electrical from 08.2014	-	2	Enquire
4	52107224993	Fastening, cover, backrest, left	52107224993 Fastening, cover, backrest, left from 08.2014	-	2	Enquire
5	52107224994	Fastening, cover, backrest, right	52107224994 Fastening, cover, backrest, right from 08.2014	-	2	Enquire
6	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10; from 08.2014	-	16	Enquire
7	51452353024	Set felt strip adhesive	51452353024 Set felt strip adhesive from 08.2014	-	4	Enquire
8	7149159336	Fillister head screw	7149159336 Fillister head screw M10X24; from 08.2014	-	8	Enquire
9	52107057431	Cover	52107057431 Cover from 08.2014	-	2	Enquire
10	52107315147	Filling insert left	52107315147 Filling insert left INNEN; from 08.2014	-	1	Enquire
10	52107315148	Filling insert right	52107315148 Filling insert right INNEN; from 08.2014	-	1	Enquire
11	52207300509	Reinforcing strut	52207300509 Reinforcing strut LEHNE; from 08.2014	-	2	Enquire
