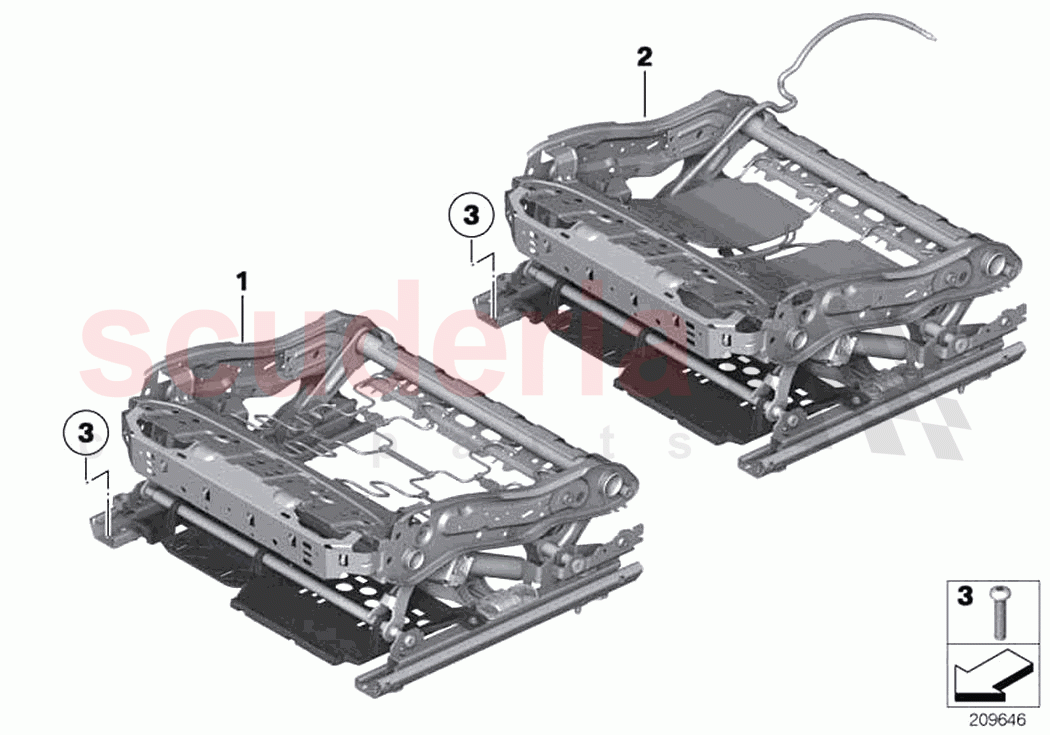

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52107276371	Seat frame, act.seat ventilat.electr lft	Enquire	To Order
	52107276372	Seat frame, act.seat ventilat.electr rgh	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149156953	Fillister head screw	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	52107242077	Left supporting plate	52107242077 Left supporting plate from 04.2010	-	1	Enquire
-	52107242078	Carrier plate, right	52107242078 Carrier plate, right from 04.2010	-	1	Enquire
1	52107276369	Seat frame, electr. left	52107276369 Seat frame, electr. left from 04.2010	-	1	Enquire
1	52107276370	Seat frame, electr. right	52107276370 Seat frame, electr. right from 04.2010	-	1	Enquire
2	52107276371	Seat frame, act.seat ventilat.electr lft	52107276371 Seat frame, act.seat ventilat.electr lft from 04.2010	-	1	Enquire
2	52107276372	Seat frame, act.seat ventilat.electr rgh	52107276372 Seat frame, act.seat ventilat.electr rgh from 04.2010	-	1	Enquire
3	7149156953	Fillister head screw	7149156953 Fillister head screw M10X37; from 08.2014	-	8	Enquire
