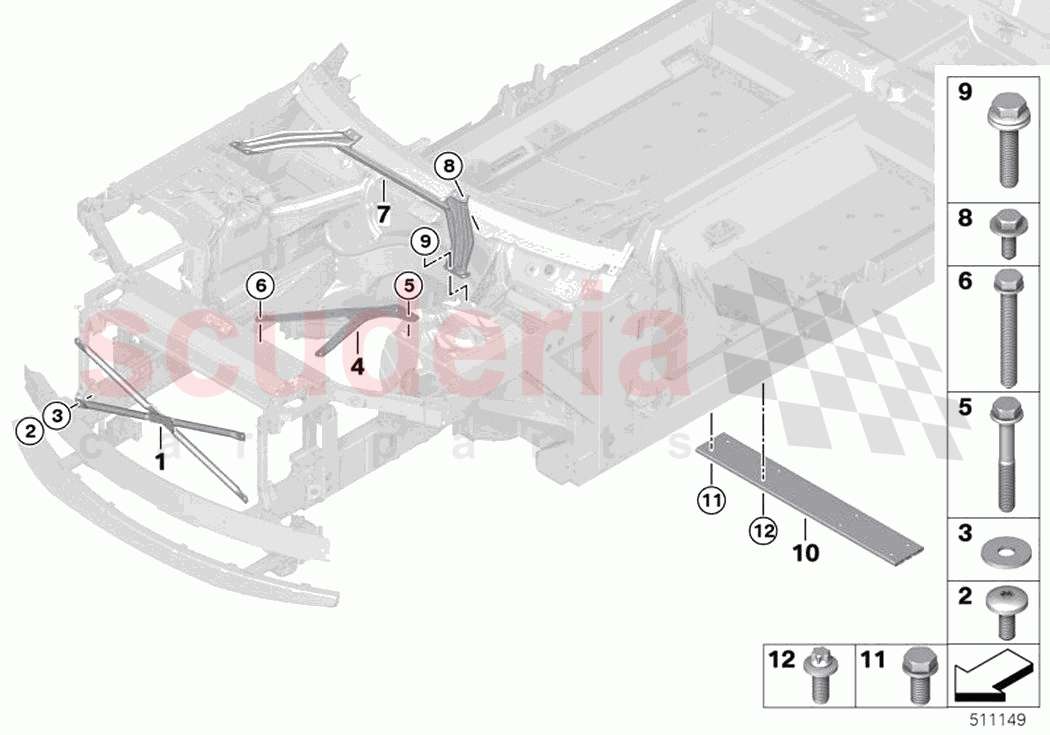

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7147026396	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906215	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51647399599	Bracing strut front panel left	Enquire	To Order
	51647399600	Bracing strut front panel right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51619908687	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908592	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617485103	Strut brace, bulkhead	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147446989	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51716966566	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717404366	Connecting member, rear tunnel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906010	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907879	Torx bolt	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51647495493	V-strut, left	51647495493 V-strut, left	-	1	Enquire
1	51647495494	V-strut, right	51647495494 V-strut, right	-	1	Enquire
2	7147026396	Torx-bolt with washer	7147026396 Torx-bolt with washer ISA M8X20	-	5	Enquire
3	7119906215	Washer	7119906215 Washer 8-200 HV-SW	-	5	Enquire
4	51647399599	Bracing strut front panel left	51647399599 Bracing strut front panel left	-	1	Enquire
4	51647399600	Bracing strut front panel right	51647399600 Bracing strut front panel right	-	1	Enquire
5	51619908687	Hex Bolt	51619908687 Hex Bolt M12X1 10.9-ZNS3	-	4	Enquire
6	7119908592	Hex Bolt with washer	7119908592 Hex Bolt with washer M10X85-U1-10.9	-	4	Enquire
7	51617485103	Strut brace, bulkhead	51617485103 Strut brace, bulkhead	-	1	Enquire
8	7147446989	Hex Bolt with washer	7147446989 Hex Bolt with washer M8X25	-	4	Enquire
9	51716966566	Hexagon screw with flange	51716966566 Hexagon screw with flange M10X45	-	4	Enquire
10	51717404366	Connecting member, rear tunnel	51717404366 Connecting member, rear tunnel	-	1	Enquire
11	7119906010	Hex Bolt	7119906010 Hex Bolt M10X20- ZNS3	-	4	Enquire
12	7119907879	Torx bolt	7119907879 Torx bolt M10X25-10.9-ZN	-	4	Enquire
