Name: Carrier centre console
Rating: 5.0 (1 reviews)

Carrier centre console of Rolls Royce Rolls Royce Ghost RR21(2019-2023)

View All

Rolls Royce Ghost RR21(2019-2023) - Carrier centre console (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51167944430	Carrier, centre console	$3,772.92	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950134	Centre arm rest lock	$367.25	To Order

Photo	Part No	Description	Price (each)	Stock
	7149213384	Clamp	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	51166825782	Microswitch	$125.06	To Order

Photo	Part No	Description	Price (each)	Stock
	7149319414	C-clip sheet metal nut	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	51169874545	Bush support centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166996694	Function carrier centre console rear	$235.48	To Order

Photo	Part No	Description	Price (each)	Stock
	51166996713	Holder, centre console, front	$138.52	To Order

Photo	Part No	Description	Price (each)	Stock
	51166996714	Bracket, centre console rear	$363.85	To Order

Photo	Part No	Description	Price (each)	Stock
	51167951183	Sound insulation centre console left	$107.83	To Order
	51167951184	Sound insulation centre console right	$107.83	To Order

Photo	Part No	Description	Price (each)	Stock
	7149197038	Fillister head screw	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	34117709137	Fillister head screw	$3.02	To Order

Photo	Part No	Description	Price (each)	Stock
	34116868785	Hex Bolt	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311066	Hex nut with plate	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51169490276	Spacer holder	$22.20	To Order

Photo	Part No	Description	Price (each)	Stock
	64538391409	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51452353024	Set felt strip adhesive	$50.30	To Order

View All

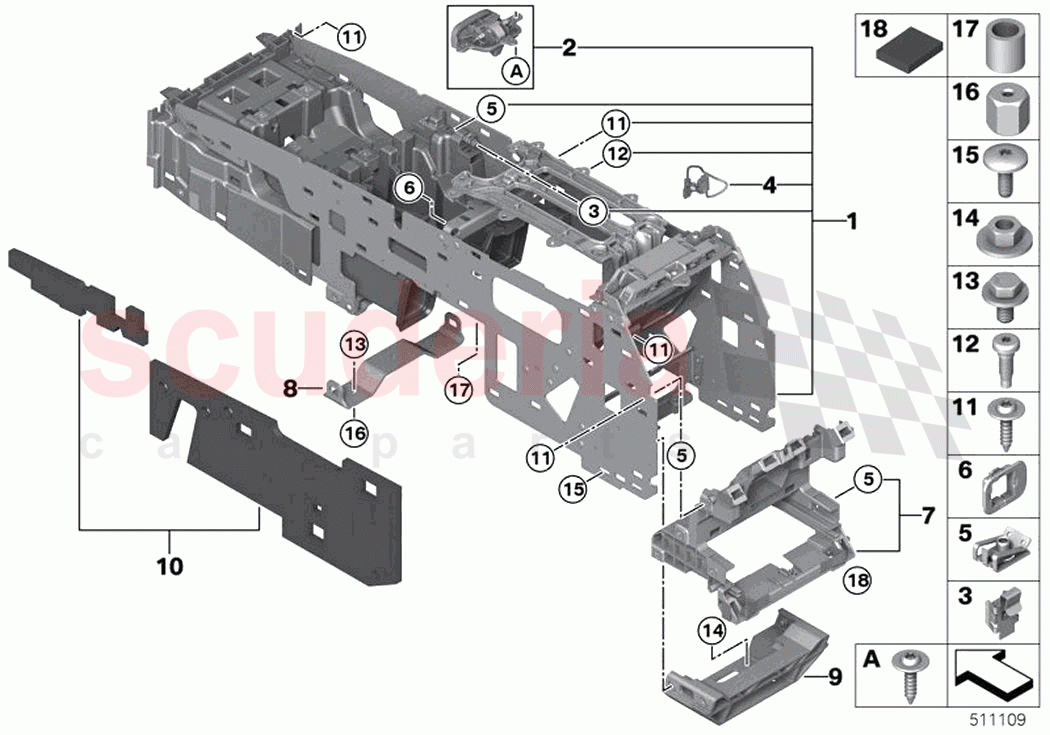

Diagram Tap to enlarge

Carrier Centre Console

Rolls Royce Ghost RR21(2019-2023)

Illustration Number: 1

Rolls Royce Ghost RR21(2019-2023) - Carrier centre console (1)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51167944430	Carrier, centre console	51167944430 Carrier, centre console	$3,772.92	1
2	51167950134	Centre arm rest lock	51167950134 Centre arm rest lock	$367.25	1
3	7149213384	Clamp	7149213384 Clamp	$3.74	4
4	51166825782	Microswitch	51166825782 Microswitch	$125.06	1
5	7149319414	C-clip sheet metal nut	7149319414 C-clip sheet metal nut	$1.88	39
6	51169874545	Bush support centre console	51169874545 Bush support centre console	-	2	Enquire
7	51166996694	Function carrier centre console rear	51166996694 Function carrier centre console rear	$235.48	1
8	51166996713	Holder, centre console, front	51166996713 Holder, centre console, front	$138.52	1
9	51166996714	Bracket, centre console rear	51166996714 Bracket, centre console rear	$363.85	1
10	51167951183	Sound insulation centre console left	51167951183 Sound insulation centre console left	$107.83	1
10	51167951184	Sound insulation centre console right	51167951184 Sound insulation centre console right	$107.83	1
11	7149197038	Fillister head screw	7149197038 Fillister head screw DELTA PT4X16	$0.59	25
12	34117709137	Fillister head screw	34117709137 Fillister head screw M6X18-8.8-MK	$3.02	7
13	34116868785	Hex Bolt	34116868785 Hex Bolt M6X12-10.9-MK-	$1.02	2
14	7147311066	Hex nut with plate	7147311066 Hex nut with plate M6	$2.28	4
15	7146959923	Torx bolt IN STOCK	7146959923 Torx bolt ISA M6X18 SW IN STOCK	$1.63	6
16	51169490276	Spacer holder	51169490276 Spacer holder	$22.20	2
17	64538391409	Bush	64538391409 Bush	-	2	Enquire
18	51452353024	Set felt strip adhesive	51452353024 Set felt strip adhesive	$50.30	1
