Name: Roller sun screen
Rating: 5.0 (1 reviews)

View All

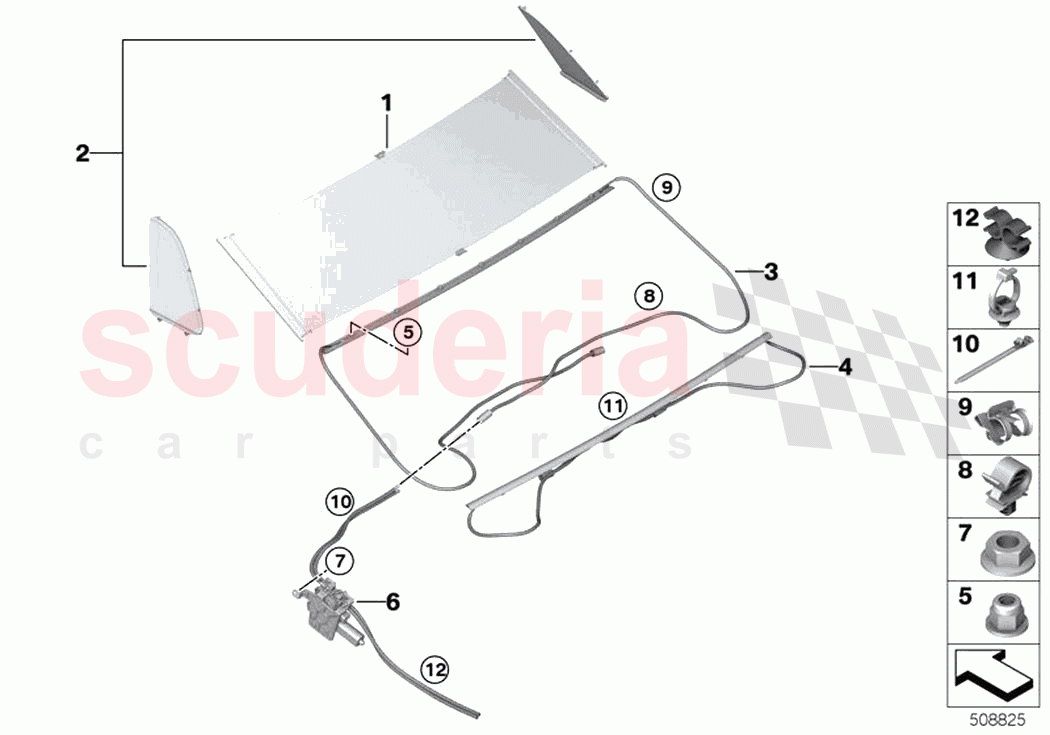

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51469473370	Curtains rear	$3,376.51	To Order

Photo	Part No	Description	Price (each)	Stock
	51469473376	Set curtain C-pillar	$3,500.38	To Order

Photo	Part No	Description	Price (each)	Stock
	51467938681	Guide rail, curtain, top	$2,279.81	To Order

Photo	Part No	Description	Price (each)	Stock
	51467938682	Guide rail, curtain, bottom	$2,279.81	To Order

Photo	Part No	Description	Price (each)	Stock
	7146949299	Self-locking hex nut	$12.83	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905544	Hex nut with plate	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	12521741316	Tubing support	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	7149134515	Cable holder	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	61138375986	Cable tie	$0.38	To Order

Photo	Part No	Description	Price (each)	Stock
	61138375988	Cable strap with bracket	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	17127609160	Pipe clip	$1.96	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51469473370	Curtains rear	51469473370 Curtains rear SCHWARZ	$3,376.51	1
2	51469473376	Set curtain C-pillar	51469473376 Set curtain C-pillar SCHWARZ	$3,500.38	1
3	51467938681	Guide rail, curtain, top	51467938681 Guide rail, curtain, top	$2,279.81	1
4	51467938682	Guide rail, curtain, bottom	51467938682 Guide rail, curtain, bottom	$2,279.81	1
5	7146949299	Self-locking hex nut	7146949299 Self-locking hex nut M4	$12.83	18
6	51465A017C1	Drive curtain left	51465A017C1 Drive curtain left	$1,415.09	1
6	51465A017C2	Drive curtain right	51465A017C2 Drive curtain right	$1,415.09	1
7	7119905544	Hex nut with plate	7119905544 Hex nut with plate M6-8-ZNNIV SI	$0.89	6
8	12521741316	Tubing support	12521741316 Tubing support	$1.88	12
9	7149134515	Cable holder	7149134515 Cable holder	$0.69	4
10	61138375986	Cable tie	61138375986 Cable tie L=150MM/B=3,6MM	$0.38	8
11	61138375988	Cable strap with bracket	61138375988 Cable strap with bracket Ø=7,9 / L=150	$1.03	6
12	17127609160	Pipe clip	17127609160 Pipe clip	$1.96	4
