Name: Centre console rear cabin
Rating: 5.0 (1 reviews)

Centre console rear cabin of Rolls Royce Rolls Royce Ghost RR21(2019-2023)

View All

Rolls Royce Ghost RR21(2019-2023) - Centre console rear cabin (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169384334	Rear console support	$3,986.32	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950134	Centre arm rest lock	$367.25	To Order

Photo	Part No	Description	Price (each)	Stock
	51166825782	Microswitch	$125.06	To Order

Photo	Part No	Description	Price (each)	Stock
	51169384969	Cover armrest rear console rear	$284.13	To Order

Photo	Part No	Description	Price (each)	Stock
	51169384347	Holder rear console rear	$231.12	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907474	Hex Bolt	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904124	Hex Bolt	$1.66	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904870	Hex nut	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	7149319414	C-clip sheet metal nut	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	51169387628	Rear console support top	$4,000.11	To Order

Photo	Part No	Description	Price (each)	Stock
	51166805359	Cover armrest rear console top	$380.69	To Order

Photo	Part No	Description	Price (each)	Stock
	51211970863	Stop buffer	$3.02	To Order

Photo	Part No	Description	Price (each)	Stock
	51166826948	Striker rear console top	$405.14	To Order

Photo	Part No	Description	Price (each)	Stock
	7147156542	Fillister head screw	$8.18	To Order

Photo	Part No	Description	Price (each)	Stock
	51166808987	Holder rear console top	$519.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904024	Hex nut	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	51166826113	Holder, cooler box	$229.84	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905095	Hex nut	$3.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13328506195	Rivet pin	$8.48	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907548	Fillister head screw	$11.52	To Order

View All

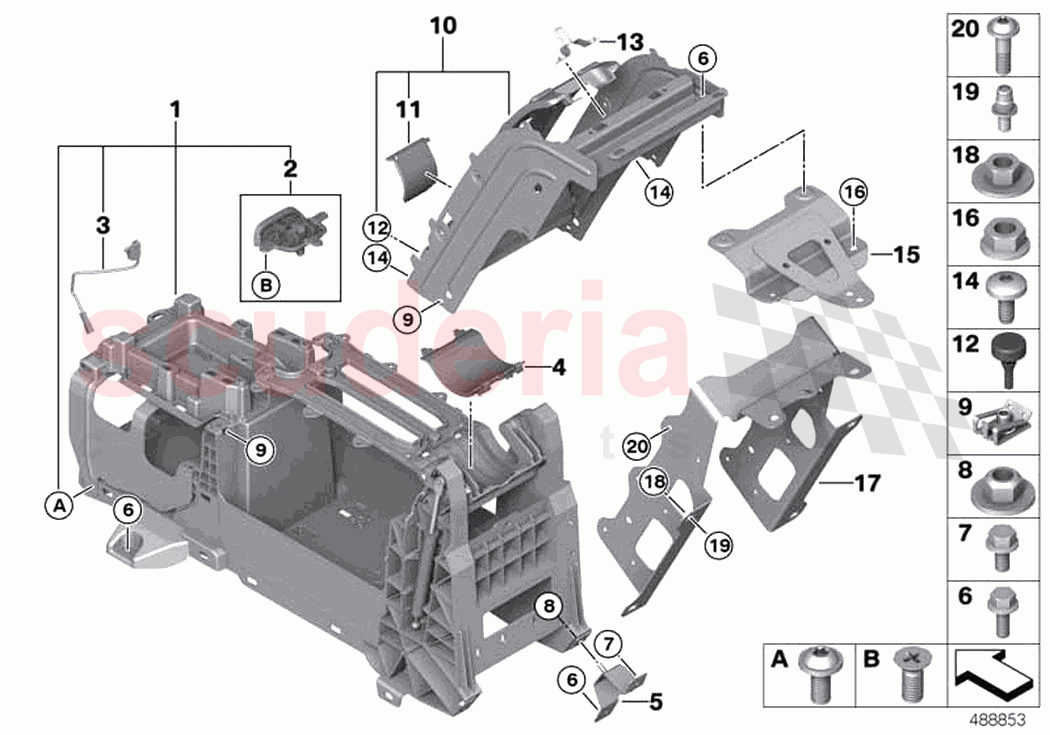

Diagram Tap to enlarge

Centre Console Rear Cabin

Rolls Royce Ghost RR21(2019-2023)

Illustration Number: 1

Rolls Royce Ghost RR21(2019-2023) - Centre console rear cabin (1)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51169384334	Rear console support	51169384334 Rear console support	$3,986.32	1
2	51167950134	Centre arm rest lock	51167950134 Centre arm rest lock	$367.25	1
3	51166825782	Microswitch	51166825782 Microswitch	$125.06	1
4	51169384969	Cover armrest rear console rear	51169384969 Cover armrest rear console rear	$284.13	1
5	51169384347	Holder rear console rear	51169384347 Holder rear console rear	$231.12	2
6	7119907474	Hex Bolt	7119907474 Hex Bolt M6X16	$1.37	6
7	7119904124	Hex Bolt	7119904124 Hex Bolt M8X16-8.8-ZNS3	$1.66	2
8	7129904870	Hex nut	7129904870 Hex nut BM6-8-ZNS3	$0.92	2
9	7149319414	C-clip sheet metal nut	7149319414 C-clip sheet metal nut	$1.88	10
10	51169387628	Rear console support top	51169387628 Rear console support top	$4,000.11	1
11	51166805359	Cover armrest rear console top	51166805359 Cover armrest rear console top	$380.69	1
12	51211970863	Stop buffer	51211970863 Stop buffer BLACK	$3.02	2
13	51166826948	Striker rear console top	51166826948 Striker rear console top	$405.14	1
14	7147156542	Fillister head screw	7147156542 Fillister head screw ISA M6X14 MK	$8.18	6
15	51166808987	Holder rear console top	51166808987 Holder rear console top	$519.30	1
16	7119904024	Hex nut	7119904024 Hex nut M8-ZNS3	$0.85	3
17	51166826113	Holder, cooler box	51166826113 Holder, cooler box	$229.84	1
18	7129905095	Hex nut IN STOCK	7129905095 Hex nut BM8-8-ZNS3 IN STOCK	$3.40	4
19	13328506195	Rivet pin	13328506195 Rivet pin M8X14,1	$8.48	4
20	7129907548	Fillister head screw	7129907548 Fillister head screw M5X18-A2-70	$11.52	12
