Brace for body rear end of Rolls Royce Rolls Royce Dawn RR6(2017-2023)

View All

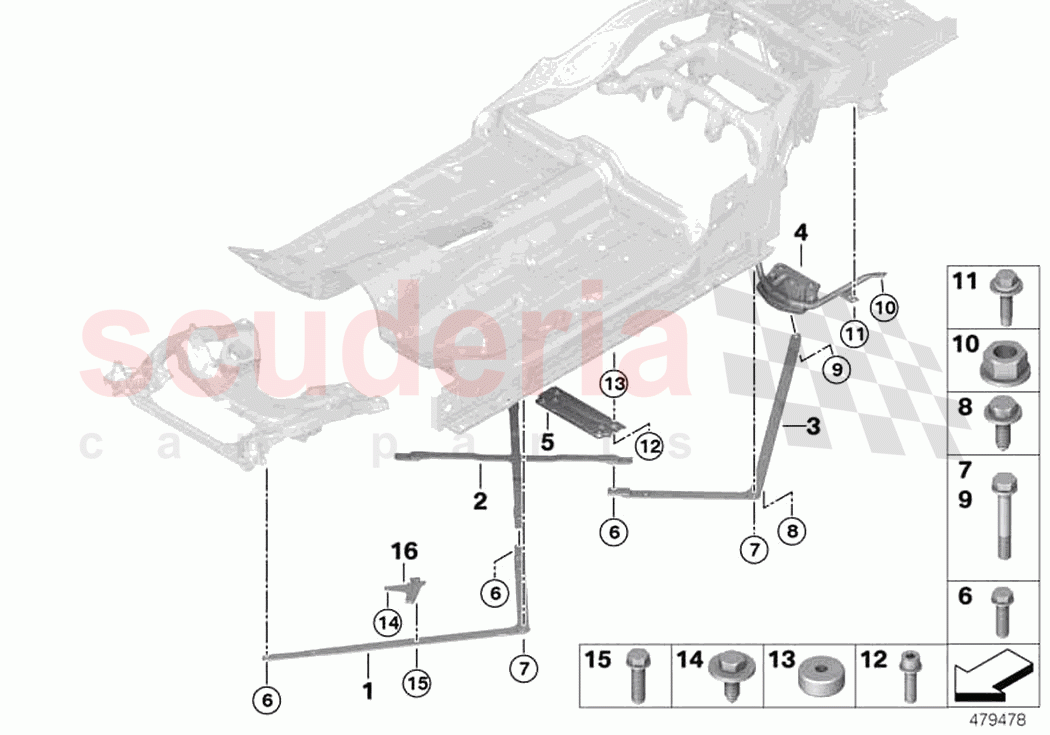

Rolls Royce Dawn RR6(2017-2023) - Brace for body rear end

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51617367593	Diagonal rod, front, left	Enquire	To Order
	51617367594	Diagonal rod, front, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617367596	Diagonal strut cross	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617367597	Diagonal strut rear left	Enquire	To Order
	51617367598	Diagonal strut rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617376305	Transverse strut, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617367587	Connecting member, rear tunnel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760652	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33177840535	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147075050	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905497	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904865	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106783907	Screw, self tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904835	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007203905	Spacer bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147408197	Hexagon screw with retainer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51617483265	Bracket, underbody panelling,middle left	Enquire	To Order
	51617483266	Bracket,underbody panelling,middle right	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51617367593	Diagonal rod, front, left	51617367593 Diagonal rod, front, left	-	1	Enquire
1	51617367594	Diagonal rod, front, right	51617367594 Diagonal rod, front, right	-	1	Enquire
2	51617367596	Diagonal strut cross	51617367596 Diagonal strut cross	-	1	Enquire
3	51617367597	Diagonal strut rear left	51617367597 Diagonal strut rear left	-	1	Enquire
3	51617367598	Diagonal strut rear right	51617367598 Diagonal strut rear right	-	1	Enquire
4	51617376305	Transverse strut, rear	51617376305 Transverse strut, rear	-	1	Enquire
5	51617367587	Connecting member, rear tunnel	51617367587 Connecting member, rear tunnel	-	1	Enquire
6	33306760652	Hex Bolt with washer	33306760652 Hex Bolt with washer M10X35-Z1-10.9	-	16	Enquire
7	33177840535	Hex Bolt with washer	33177840535 Hex Bolt with washer M14X1,5X65-10.9	-	4	Enquire
8	7147075050	Hex Bolt with washer	7147075050 Hex Bolt with washer M8X25	-	5	Enquire
9	7119905497	Hex Bolt	7119905497 Hex Bolt M12X1,5X53-10.9	-	2	Enquire
10	7129904865	Hex nut	7129904865 Hex nut AM10-10-ZNS3	-	2	Enquire
11	31106783907	Screw, self tapping	31106783907 Screw, self tapping M8X33-10.9 ZNS3	-	4	Enquire
12	7129904835	ISA screw	7129904835 ISA screw M8X30-U1-8.8	-	6	Enquire
13	41007203905	Spacer bush	41007203905 Spacer bush	-	6	Enquire
14	7147408197	Hexagon screw with retainer	7147408197 Hexagon screw with retainer M6X16	-	3	Enquire
16	51617483265	Bracket, underbody panelling,middle left	51617483265 Bracket, underbody panelling,middle left to 07.2016	-	1	Enquire
16	51617483266	Bracket,underbody panelling,middle right	51617483266 Bracket,underbody panelling,middle right to 07.2016	-	1	Enquire
