Glove box of Rolls Royce Rolls Royce Dawn RR6(2017-2023)

View All

Rolls Royce Dawn RR6(2017-2023) - Glove box

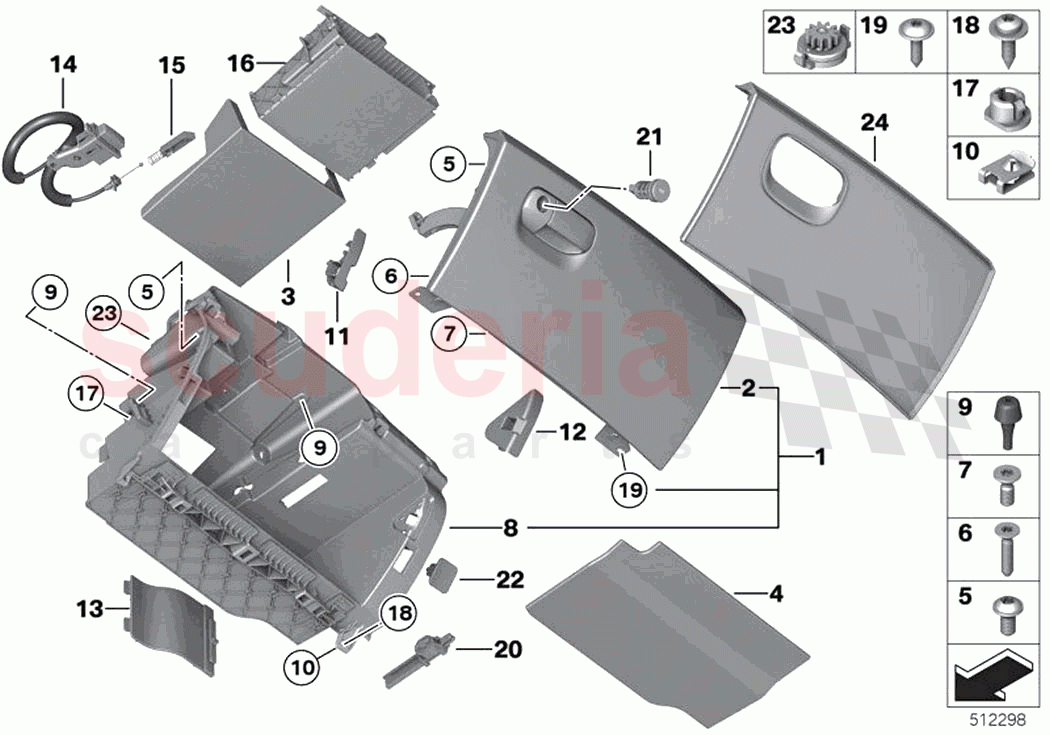

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169286083	Glove box	Enquire	To Order
	51169286086	Glove box	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169286084	Glove box lid	Enquire	To Order
	51169286088	Glove box lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459622402	Rubber insert, glove box	Enquire	To Order
	51459622405	Rubber insert, glove box	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147118899	Screw for thermoplastic plastics	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7131181779	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64226936555	Countersunk screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169180765	Glove box housing	Enquire	To Order
	51459180766	Glove box housing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51168151989	Rubber buffer	Enquire	To Order
	51169356180	Rubber buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51457067987	C-clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169143939	Locking bush, left	Enquire	To Order
	51459173900	Locking bush, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169143938	Locking bush, right	Enquire	To Order
	51459173899	Locking bush, left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169165364	Cover, fuse carrier	Enquire	To Order
	51169198595	Cover, fuse carrier	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147154525	Combi. fillister head self-tapping screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147122392	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169215561	Silicon damper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169202265	Rep.kit f lock cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169143943	Dummy cover for USB	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51169286083	Glove box	51169286083 Glove box COLOUR NEUTRAL	-	1	Enquire
1	51169286086	Glove box	51169286086 Glove box COLOUR NEUTRAL	-	1	Enquire
2	51169286084	Glove box lid	51169286084 Glove box lid COLOUR NEUTRAL	-	1	Enquire
2	51169286088	Glove box lid	51169286088 Glove box lid COLOUR NEUTRAL	-	1	Enquire
4	51459622402	Rubber insert, glove box	51459622402 Rubber insert, glove box COLOUR NEUTRAL	-	1	Enquire
4	51459622405	Rubber insert, glove box	51459622405 Rubber insert, glove box COLOUR NEUTRAL	-	1	Enquire
5	7147118899	Screw for thermoplastic plastics	7147118899 Screw for thermoplastic plastics 4X10 T20	-	3	Enquire
6	7131181779	Torx bolt	7131181779 Torx bolt M4X18	-	6	Enquire
7	64226936555	Countersunk screw	64226936555 Countersunk screw 3,5X9	-	2	Enquire
8	51169180765	Glove box housing	51169180765 Glove box housing	-	1	Enquire
8	51459180766	Glove box housing	51459180766 Glove box housing	-	1	Enquire
9	51168151989	Rubber buffer	51168151989 Rubber buffer	-	1	Enquire
9	51169356180	Rubber buffer	51169356180 Rubber buffer	-	2	Enquire
10	51457067987	C-clip nut	51457067987 C-clip nut	-	2	Enquire
11	51169143939	Locking bush, left	51169143939 Locking bush, left	-	1	Enquire
11	51459173900	Locking bush, right	51459173900 Locking bush, right	-	1	Enquire
12	51169143938	Locking bush, right	51169143938 Locking bush, right	-	1	Enquire
12	51459173899	Locking bush, left	51459173899 Locking bush, left	-	1	Enquire
13	51169165364	Cover, fuse carrier	51169165364 Cover, fuse carrier	-	1	Enquire
13	51169198595	Cover, fuse carrier	51169198595 Cover, fuse carrier	-	1	Enquire
18	7147154525	Combi. fillister head self-tapping screw	7147154525 Combi. fillister head self-tapping screw	-	6	Enquire
19	7147122392	Fillister head screw	7147122392 Fillister head screw	-	-	Enquire
20	51169215561	Silicon damper	51169215561 Silicon damper	-	1	Enquire
21	51169202265	Rep.kit f lock cylinder	51169202265 Rep.kit f lock cylinder	-	1	Enquire
22	51169143943	Dummy cover for USB	51169143943 Dummy cover for USB	-	1	Enquire
