Rolls Royce Dawn RR6(2017-2023) - Door trim panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51417370121 Door trim panel left $5,598.05 To Order
51417370122 Door trim panel right $5,598.05 To Order
51417487219 Door trim panel left $6,659.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51417372513 Door mirror, leather, left $2,771.04 To Order
51417372514 Door mirror, leather, right $2,771.04 To Order
51417401771 Door mirror, wood, left $2,857.24 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51417362759 Covering left $1,604.87 To Order
51417362760 Covering right $1,604.87 To Order
51417362765 Covering left $1,604.87 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51417370123 Map pocket, left $2,923.49 To Order
51417370124 Map pocket, right $2,923.49 To Order
Photo Part No Description Price (each) Stock
51417370125 Armrest, left $1,099.04 To Order
51417370126 Armrest, right $1,099.04 To Order
Photo Part No Description Price (each) Stock
51417365623 Chrome strip, left $903.10 To Order
51417365624 Chrome strip, right $903.10 To Order
Photo Part No Description Price (each) Stock
51417349029 Trim, power window switch $204.17 To Order
Photo Part No Description Price (each) Stock
65139368383 Mid-range speaker, HiFi/Top HiFi $82.58 To Order
Photo Part No Description Price (each) Stock
51417220260 Speaker cover, mid-range speaker $266.16 To Order
51417463669 Speaker cover, mid-range speaker $342.06 To Order
Photo Part No Description Price (each) Stock
51226956875 Door handle, inside left $1,511.91 To Order
51226956876 Door handle inner right $1,511.91 To Order
Photo Part No Description Price (each) Stock
51419158057 Attachment strip $59.60 To Order
Photo Part No Description Price (each) Stock
51417306851 Attachment strip, short, left $57.77 To Order
51417306852 Attachment strip, short, right $57.77 To Order
Photo Part No Description Price (each) Stock
51417391803 Chrome strip, left $1,115.64 To Order
51417391804 Chrome strip, right $1,115.64 To Order
Photo Part No Description Price (each) Stock
51417314317 Crash pad, left $52.00 To Order
51417314318 Crash pad, right $52.00 To Order
Photo Part No Description Price (each) Stock
51417263613 Bar left $14.38 To Order
51417263614 Bar right $14.38 To Order
Photo Part No Description Price (each) Stock
7147265039 Expanding nut $1.40 To Order
Photo Part No Description Price (each) Stock
7147277470 Torx bolt for plastic material $0.85 To Order
Photo Part No Description Price (each) Stock
7146979835 Fillister head screw with collar $0.69 To Order
Photo Part No Description Price (each) Stock
51418267067 Expanding nut $0.86 To Order
Photo Part No Description Price (each) Stock
7149185673 Oval-head screw with washer $0.71 To Order
Photo Part No Description Price (each) Stock
7149149273 Fillister head screw $2.03 To Order
Photo Part No Description Price (each) Stock
51419158059 Retainer, A version $17.20 To Order
Photo Part No Description Price (each) Stock
51419158060 Retainer, B version $8.76 To Order
Photo Part No Description Price (each) Stock
51419158061 Retainer, C version $8.56 To Order
Photo Part No Description Price (each) Stock
51418224781 Clip with sealing ring $1.00 To Order
Photo Part No Description Price (each) Stock
7147394952 Clip $2.73 To Order
Photo Part No Description Price (each) Stock
51217231100 Clip $5.20 To Order
Photo Part No Description Price (each) Stock
7149184240 S-clamp $2.76 To Order
Photo Part No Description Price (each) Stock
7149172157 Clamp $2.66 To Order
Photo Part No Description Price (each) Stock
7147193038 Torx-bolt with washer $4.63 To Order
Photo Part No Description Price (each) Stock
51417380868 Trim, locking button, bottom $34.66 To Order
Photo Part No Description Price (each) Stock
51417380867 Trim, locking button, top $86.64 To Order
Photo Part No Description Price (each) Stock
51417471775 Set cable clip $84.64 To Order
View All

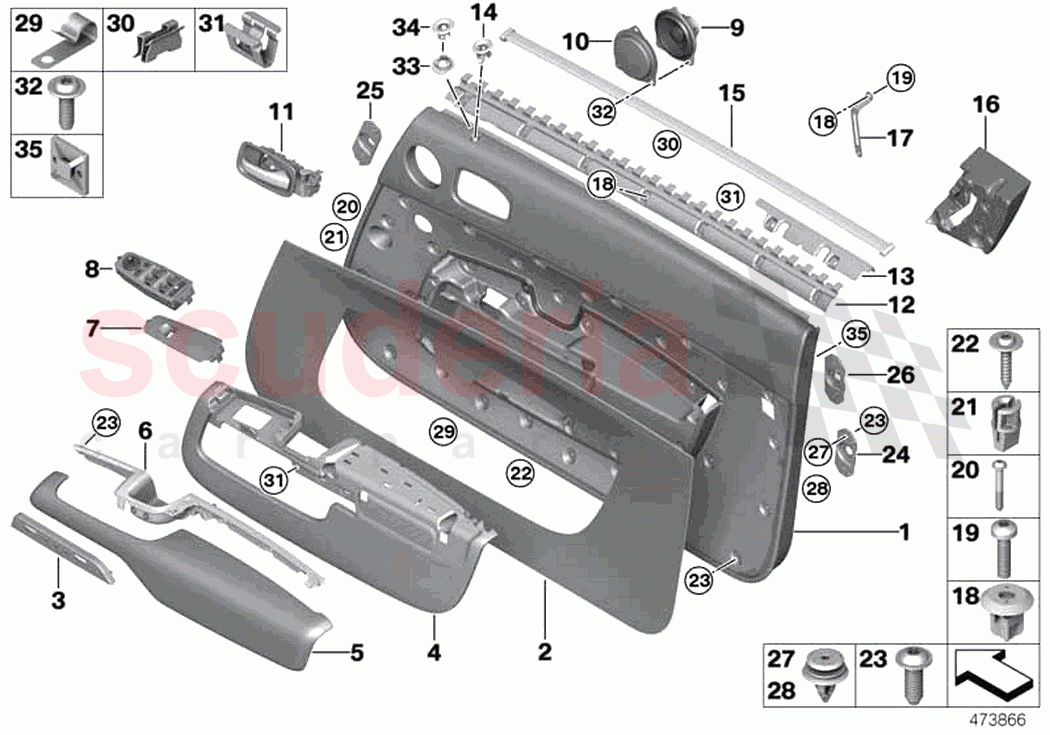

Door trim panel of Rolls Royce Rolls Royce Dawn RR6(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51417370121
Door trim panel left
COLOUR NEUTRAL 		$5,598.05 1
1 51417370122
Door trim panel right
COLOUR NEUTRAL 		$5,598.05 1
1 51417487219
Door trim panel left
COLOUR NEUTRAL 		$6,659.87 1
1 51417487220
Door trim panel right
COLOUR NEUTRAL 		$6,659.87 1
2 51417372513
Door mirror, leather, left
COLOUR NEUTRAL 		$2,771.04 1
2 51417372514
Door mirror, leather, right
COLOUR NEUTRAL 		$2,771.04 1
2 51417401771
Door mirror, wood, left 		$2,857.24 1
2 51477401772
Door mirror, wood, right 		$2,857.24 1
2 51417327529
Door mirror, wood, left
QUOTE VENEER 		$2,857.24 1
2 51417327530
Door mirror, wood, right
QUOTE VENEER 		$2,857.24 1
3 51417362759
Covering left
QUOTE VENEER 		$1,604.87 1
3 51417362760
Covering right
QUOTE VENEER 		$1,604.87 1
3 51417362765
Covering left
QUOTE VENEER 		$1,604.87 1
3 51417362766
Covering right
QUOTE VENEER 		$1,604.87 1
3 51417462979
Trim, seat function, left
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
3 51417462980
Trim, seat function, right
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
3 51417462981
Trim, seat function, left
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
3 51417462982
Trim, seat function, right
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
3 51417362761
Covering left
QUOTE VENEER 		$1,604.87 1
3 51417362762
Covering right
QUOTE VENEER 		$1,604.87 1
3 51417362763
Covering left
QUOTE VENEER 		$1,604.87 1
3 51417362764
Covering right
QUOTE VENEER 		$1,604.87 1
3 51417462977
Trim, seat function, left
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
3 51417462978
Trim, seat function, right
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
3 51417462983
Trim, seat function, left
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
3 51417462984
Trim, seat function, right
TECHNICAL FIBRE; from 08.2017 		$1,816.88 1
4 51417370123
Map pocket, left
COLOUR NEUTRAL 		$2,923.49 1
4 51417370124
Map pocket, right
COLOUR NEUTRAL 		$2,923.49 1
5 51417370125
Armrest, left
COLOUR NEUTRAL 		$1,099.04 1
5 51417370126
Armrest, right
COLOUR NEUTRAL 		$1,099.04 1
6 51417365623
Chrome strip, left 		$903.10 1
6 51417365624
Chrome strip, right 		$903.10 1
7 51417349029
Trim, power window switch 		$204.17 1
9 65139368383
Mid-range speaker, HiFi/Top HiFi 		$82.58 2
10 51417220260
Speaker cover, mid-range speaker 		$266.16 2
10 51417463669
Speaker cover, mid-range speaker
STAINLESS STEEL 		$342.06 2
11 51226956875
Door handle, inside left
BLUE CHROME 		$1,511.91 1
11 51226956876
Door handle inner right
BLUE CHROME 		$1,511.91 1
12 51419158057
Attachment strip 		$59.60 2
13 51417306851
Attachment strip, short, left 		$57.77 1
13 51417306852
Attachment strip, short, right 		$57.77 1
15 51417391803
Chrome strip, left 		$1,115.64 1
15 51417391804
Chrome strip, right 		$1,115.64 1
16 51417314317
Crash pad, left 		$52.00 1
16 51417314318
Crash pad, right 		$52.00 1
17 51417263613
Bar left 		$14.38 1
17 51417263614
Bar right 		$14.38 1
18 7147265039
Expanding nut 		$1.40 2
19 7147277470
Torx bolt for plastic material
5.2X20 ISA 		$0.85 2
20 7146979835
Fillister head screw with collar
ISA 35X5 		$0.69 8
21 51418267067
Expanding nut
8X11,7X2 		$0.86 8
22 7149185673
Oval-head screw with washer
DELTA PT4X20 		$0.71 4
23 7149149273
Fillister head screw
5X14 		$2.03 -
24 51419158059
Retainer, A version 		$17.20 9
25 51419158060
Retainer, B version 		$8.76 1
26 51419158061
Retainer, C version 		$8.56 1
27 51418224781
Clip with sealing ring
GRAU 		$1.00 3
28 7147394952
Clip 		$2.73 8
29 51217231100
Clip 		$5.20 2
30 7149184240
S-clamp 		$2.76 2
31 7149172157
Clamp 		$2.66 12
32 7147193038
Torx-bolt with washer
ISA M4X12 		$4.63 5
33 51417380868
Trim, locking button, bottom 		$34.66 2
34 51417380867
Trim, locking button, top 		$86.64 2
35 51417471775
Set cable clip 		$84.64 10
