Mounting Parts Engine Compartment

Rolls Royce Dawn RR6(2017-2023)

Find Your Part

Rolls Royce Dawn RR6(2017-2023) - Mounting parts engine compartment

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51717223307 Bulkhead, lower section, left $196.26 To Order
51717223308 Bulkhead, lower section, right $196.26 To Order
51717223313 Bulkhead, lower section, left $221.91 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51717223309 Bulkhead, lower section, middle $247.64 To Order
Photo Part No Description Price (each) Stock
7149188001 Oval-head screw, self-locking $2.86 IN STOCK
Photo Part No Description Price (each) Stock
7149126885 Hex Bolt $1.00 To Order
Photo Part No Description Price (each) Stock
7146976114 Expanding nut $0.42 To Order
Photo Part No Description Price (each) Stock
51717223303 Bulkhead, upper section, left $226.41 To Order
51717223304 Bulkhead, upper section, right $226.41 To Order
Photo Part No Description Price (each) Stock
51717221365 Supplementary bulkhead, left $75.45 To Order
51717221366 Supplementary bulkhead, right $75.45 To Order
Photo Part No Description Price (each) Stock
51717223305 Bulkhead, upper section, middle $221.68 To Order
Photo Part No Description Price (each) Stock
51747391551 Cover, A-pillar gusset, left $118.47 To Order
51747391552 Cover, A-pillar gusset, right $118.47 To Order
51747393337 Cover, A-pillar gusset, left $117.30 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
7147154447 C-clip nut, self-locking $0.88 IN STOCK
Photo Part No Description Price (each) Stock
51717184112 Closure cap, bulkhead $185.68 To Order
51717184113 Closure cap, bulkhead $185.68 To Order
Photo Part No Description Price (each) Stock
7119902292 Screw plug $3.99 To Order
Photo Part No Description Price (each) Stock
7149191219 Blind rivet $1.11 IN STOCK
Photo Part No Description Price (each) Stock
7119905241 Hex head screw with washer $0.89 To Order
Photo Part No Description Price (each) Stock
51757395428 Cover, spring strut dome, front $50.24 To Order
Photo Part No Description Price (each) Stock
51757408145 Cover, front axle support, bottom left $122.75 To Order
51757408146 Cover, front axle support, bottom right $122.75 To Order
Photo Part No Description Price (each) Stock
51757395499 Cover, steering assembly, bottom left $77.53 To Order
51757395500 Cover, steering assembly, bottom right $77.53 To Order
Photo Part No Description Price (each) Stock
51757201491 Left steering gear cover $261.78 To Order
51757201492 Right steering gear cover $261.78 To Order
Photo Part No Description Price (each) Stock
51471911992 Expanding rivet $0.89 IN STOCK
Photo Part No Description Price (each) Stock
7149126886 Hex Bolt $1.14 IN STOCK
Photo Part No Description Price (each) Stock
31146786689 Torx screw, self-tapping $2.36 To Order
View All

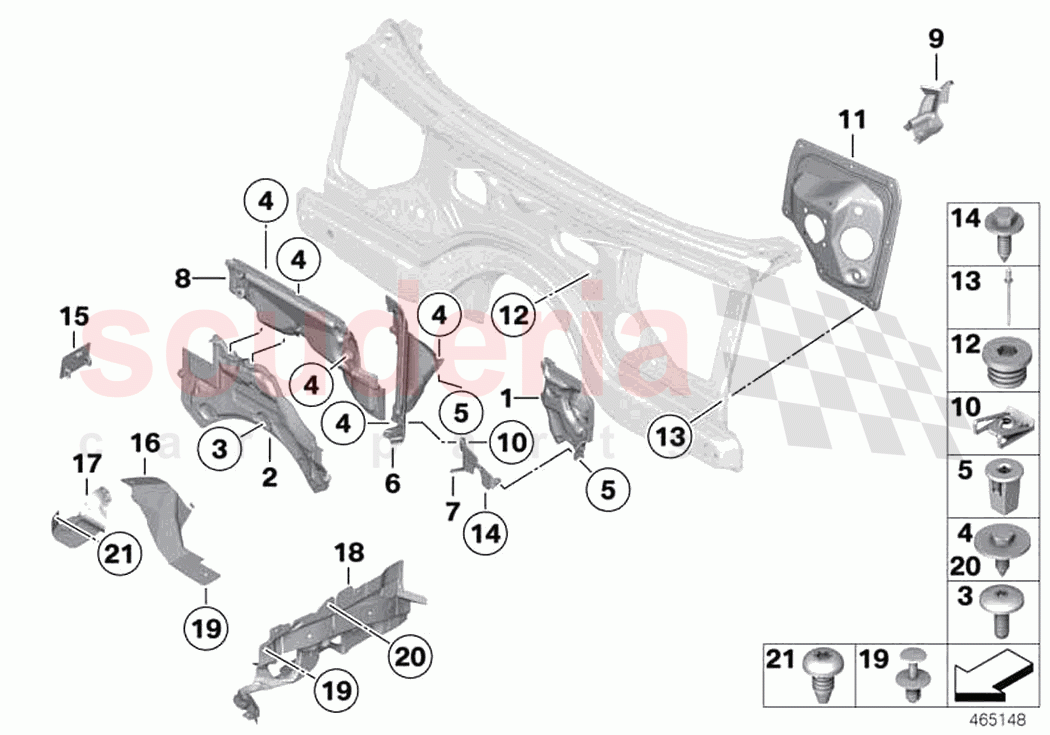

Mounting parts engine compartment of Rolls Royce Rolls Royce Dawn RR6(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51717223307
Bulkhead, lower section, left 		$196.26 1
1 51717223308
Bulkhead, lower section, right 		$196.26 1
1 51717223313
Bulkhead, lower section, left 		$221.91 1
1 51717223314
Bulkhead, lower section, right 		$221.91 1
2 51717223309
Bulkhead, lower section, middle 		$247.64 1
3 7149188001
Oval-head screw, self-locking
M6X18MM ISA
IN STOCK 		$2.86 -
4 7149126885
Hex Bolt
TS5X17 SW8 D=16 		$1.00 -
5 7146976114
Expanding nut
L=15MM, DMAX=12 		$0.42 -
6 51717223303
Bulkhead, upper section, left 		$226.41 1
6 51717223304
Bulkhead, upper section, right 		$226.41 1
7 51717221365
Supplementary bulkhead, left 		$75.45 1
7 51717221366
Supplementary bulkhead, right 		$75.45 1
8 51717223305
Bulkhead, upper section, middle 		$221.68 1
9 51747391551
Cover, A-pillar gusset, left 		$118.47 1
9 51747391552
Cover, A-pillar gusset, right 		$118.47 1
9 51747393337
Cover, A-pillar gusset, left 		$117.30 1
9 51747393338
Cover, A-pillar gusset, right 		$95.33 1
10 7147154447
C-clip nut, self-locking
ST 4.8 -ZNS3
IN STOCK 		$0.88 -
11 51717184112
Closure cap, bulkhead 		$185.68 1
11 51717184113
Closure cap, bulkhead 		$185.68 1
12 7119902292
Screw plug
M16X1,5 		$3.99 1
13 7149191219
Blind rivet
IN STOCK 		$1.11 7
14 7119905241
Hex head screw with washer
ST 4,8X25 ZNS3 		$0.89 -
15 51757395428
Cover, spring strut dome, front 		$50.24 2
16 51757408145
Cover, front axle support, bottom left 		$122.75 1
16 51757408146
Cover, front axle support, bottom right 		$122.75 1
17 51757395499
Cover, steering assembly, bottom left 		$77.53 1
17 51757395500
Cover, steering assembly, bottom right 		$77.53 1
18 51757201491
Left steering gear cover 		$261.78 1
18 51757201492
Right steering gear cover 		$261.78 1
19 51471911992
Expanding rivet
D = 8MM
IN STOCK 		$0.89 6
20 7149126886
Hex Bolt
TS5X17 SW8 D=22
IN STOCK 		$1.14 12
21 31146786689
Torx screw, self-tapping
M6X13-ZNNIVSI 		$2.36 2
