18 - AERO MECHANISMS - 18.2 - REAR ACTIVE AERO MECHANISMS of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 18 - AERO MECHANISMS - 18.2 - REAR ACTIVE AERO MECHANISMS

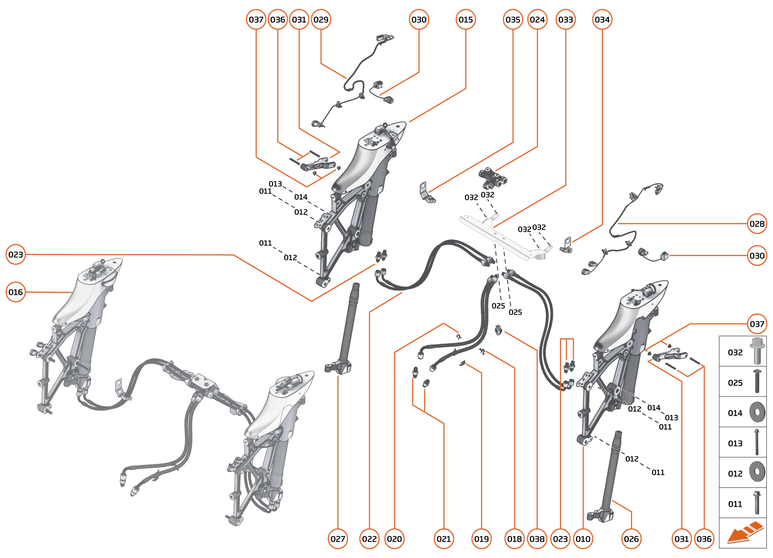

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14A1165CP	ASSY - AIRBRAKE MECHANISM - LH	14A1165CP ASSY - AIRBRAKE MECHANISM - LH Row ID: ID__14A1165CP_ContPgHS;	-	1	Enquire
011	00RA614	BOLT - M8X1.25 - HEX	00RA614 BOLT - M8X1.25 - HEX Row ID: ID__00RA614_ContPgHS;	-	4	Enquire
012	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID__00RC048_ContPgHS;	-	4	Enquire
013	00RA627	BOLT - HEX - FLANGED - M6X80	00RA627 BOLT - HEX - FLANGED - M6X80 Row ID: ID__00RA627_ContPgHS;	-	2	Enquire
014	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	2	Enquire
015	14A1180CP	ASSY - AIRBRAKE MECHANISM - RH	14A1180CP ASSY - AIRBRAKE MECHANISM - RH Row ID: ID__14A1180CP_ContPgHS;	-	1	Enquire
016	14AB118CP	ASSY - AIRBRAKE - FULL ASSY - 14AM002 SILVER	14AB118CP ASSY - AIRBRAKE - FULL ASSY - 14AM002 SILVER Row ID: ID__14AB118CP_ContPgHS;	-	1	Enquire
017	14AA089CP	HOSE - GEARBOX - UNION MANIFOLD	14AA089CP HOSE - GEARBOX - UNION MANIFOLD Row ID: ID__14AA089CP_ContPgHS;	-	1	Enquire
018	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	00RB019 CLIP - 90DEG - FEMALE - 10-12MM Row ID: ID__00RB019_ContPgHS;	-	3	Enquire
019	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM Row ID: ID__00RB044_ContPgHS;	-	1	Enquire
020	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID__00RB045_ContPgHS;	-	2	Enquire
021	14A0110CP	HOSE - CONNECTOR - GEARBOX - 8MM	14A0110CP HOSE - CONNECTOR - GEARBOX - 8MM Row ID: ID__14A0110CP_ContPgHS;	-	2	Enquire
022	14A0606CP	HOSE - ACTUATOR - UNION MANIFOLD	14A0606CP HOSE - ACTUATOR - UNION MANIFOLD Row ID: ID__14A0606CP_ContPgHS;	-	1	Enquire
023	14A3600CP	CONNECTOR - HOSE - AIRBRAKE MECHANISM - 4.5MM	14A3600CP CONNECTOR - HOSE - AIRBRAKE MECHANISM - 4.5MM Row ID: ID__14A3600CP_ContPgHS;	-	4	Enquire
024	11A4676CP	Hose - Airbrake - Union Manifold	11A4676CP Hose - Airbrake - Union Manifold Row ID: ID__11A4676CP_ContPgHS;	-	1	Enquire
025	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 Row ID: ID__00RA410_ContPgHS;	-	2	Enquire
026	14A1175CP	ACTUATOR - AIRBRAKE - LH	14A1175CP ACTUATOR - AIRBRAKE - LH Row ID: ID__14A1175CP_ContPgHS;	-	1	Enquire
027	14A3598CP	ACTUATOR - AIRBRAKE - RH	14A3598CP ACTUATOR - AIRBRAKE - RH Row ID: ID__14A3598CP_ContPgHS;	-	1	Enquire
028	14A1169CP	WIRING HARNESS - AIRBRAKE - LH	14A1169CP WIRING HARNESS - AIRBRAKE - LH Row ID: ID__14A1169CP_ContPgHS;	-	1	Enquire
029	14A1184CP	WIRING HARNESS - AIRBRAKE - RH	14A1184CP WIRING HARNESS - AIRBRAKE - RH Row ID: ID__14A1184CP_ContPgHS;	-	1	Enquire
030	14A0434CP	POSITION SENSOR - AIRBRAKE	14A0434CP POSITION SENSOR - AIRBRAKE Row ID: ID__14A0434CP_ContPgHS;	-	1	Enquire
031	14A0431CP	FRONT LINK - AIRBRAKE	14A0431CP FRONT LINK - AIRBRAKE Row ID: ID__14A0431CP_ContPgHS;	-	1	Enquire
031	14A0432CP	AIRBRAKE MECH FORWARD LINK	14A0432CP AIRBRAKE MECH FORWARD LINK Row ID: ID__14A0432CP_ContPgHS;	-	1	Enquire
032	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	4	Enquire
033	26AB482SP	BRACKET AIRBRAKE MANIFOLD	26AB482SP BRACKET AIRBRAKE MANIFOLD Row ID: ID__26AB482SP_ContPgHS;	-	1	Enquire
034	14AB129CP	BRACKET - AIRBRAKE - LH SUPPORT	14AB129CP BRACKET - AIRBRAKE - LH SUPPORT Row ID: ID__14AB129CP_ContPgHS;	-	1	Enquire
035	14AB130CP	BRACKET - AIRBRAKE - RH SUPPORT	14AB130CP BRACKET - AIRBRAKE - RH SUPPORT Row ID: ID__14AB130CP_ContPgHS;	-	1	Enquire
036	14A0441CP	PIN - FORWARD LINK - AIRBRAKE	14A0441CP PIN - FORWARD LINK - AIRBRAKE Row ID: ID__14A0441CP_ContPgHS;	-	1	Enquire
037	14A4143CP	BEARING - FORWARD LINK - AIRBRAKE	14A4143CP BEARING - FORWARD LINK - AIRBRAKE Row ID: ID__14A4143CP_ContPgHS;	-	2	Enquire
038	00RB075	Pipe Clip 11-18mm	00RB075 Pipe Clip 11-18mm Row ID: ID__00RB075_ContPgHS;	-	1	Enquire
