17 - BRAKES - 17.7 - VACCUM SYSTEM of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 17 - BRAKES - 17.7 - VACCUM SYSTEM

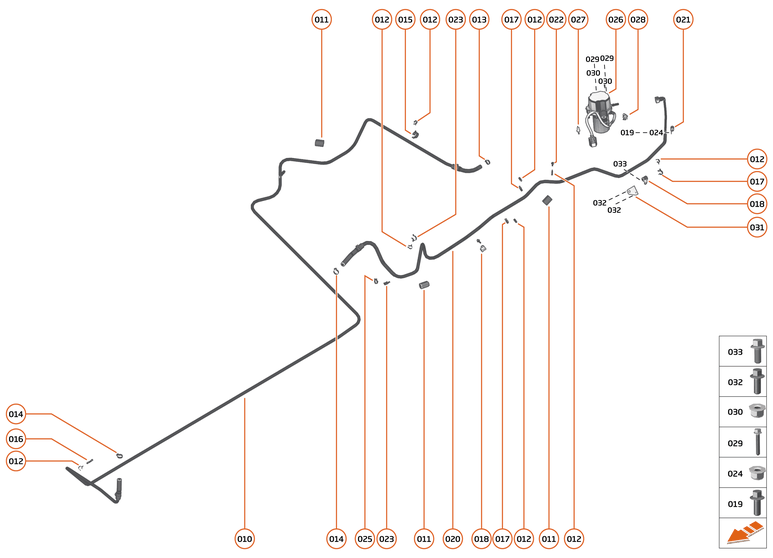

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID__00RA367_ContPgHS;	-	1	Enquire
000	00RL022	EDGE CLIP - 202X4.6MM - INLINE	00RL022 EDGE CLIP - 202X4.6MM - INLINE Row ID: ID__00RL022_ContPgHS;	-	1	Enquire
010	22CA114GP	PIPE BRAKE VAC TMC ENG - MANIFOLD LHD-IRON	22CA114GP PIPE BRAKE VAC TMC ENG - MANIFOLD LHD-IRON Row ID: ID__22CA114GP_ContPgHS;	-	1	Enquire
010	22CA113GP	PIPE BRAKE VAC TMC ENG - MANIFOLD RHD-IRON	22CA113GP PIPE BRAKE VAC TMC ENG - MANIFOLD RHD-IRON Row ID: ID__22CA113GP_ContPgHS;	-	1	Enquire
011	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID__00RA366_ContPgHS;	-	3	Enquire
012	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID__00RB018_ContPgHS;	-	7	Enquire
013	00RB093	OETIKER CLIP - 16.6	00RB093 OETIKER CLIP - 16.6 Row ID: ID__00RB093_ContPgHS;	-	1	Enquire
014	00RB110	OETIKER CLIP - 19.2	00RB110 OETIKER CLIP - 19.2 Row ID: ID__00RB110_ContPgHS;	-	2	Enquire
015	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Row ID: ID__00RB120_ContPgHS;	-	1	Enquire
016	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS;	-	1	Enquire
017	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	3	Enquire
018	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM Row ID: ID__00RB127_ContPgHS;	-	2	Enquire
019	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	2	Enquire
020	26CA073SP	HOSE-VACUUM-PUMP	26CA073SP HOSE-VACUUM-PUMP Row ID: ID__26CA073SP_ContPgHS;	-	1	Enquire
021	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE Row ID: ID__00RB098_ContPgHS;	-	1	Enquire
022	00RB168	SWIVEL CLIP - 4.3-5.2 - FEMALE	00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Row ID: ID__00RB168_ContPgHS;	-	1	Enquire
023	00RB141	SWIVEL CLIP - FEMALE CSC9	00RB141 SWIVEL CLIP - FEMALE CSC9 Row ID: ID__00RB141_ContPgHS;	-	2	Enquire
024	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	1	Enquire
025	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM Row ID: ID__00RB044_ContPgHS;	-	1	Enquire
026	15CA134CP		15CA134CP EVAC PUMP; Row ID: ID__15CA134CP_ContPgHS;	-	1	Enquire
027	00RB059	CLIP CONNECTOR - TRW	00RB059 CLIP CONNECTOR - TRW Row ID: ID__00RB059_ContPgHS;	-	1	Enquire
028	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	1	Enquire
029	00RA631	BLT-HX-FL-PPT-M6X1X45-8.8-72	00RA631 BLT-HX-FL-PPT-M6X1X45-8.8-72 Row ID: ID__00RA631_ContPgHS;	-	2	Enquire
030	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
031	15BA144CP	BRACKET - KINETIC DAMPERER - REBOUND PIPE - REAR RH	15BA144CP BRACKET - KINETIC DAMPERER - REBOUND PIPE - REAR RH Row ID: ID__15BA144CP_ContPgHS;	-	1	Enquire
032	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	2	Enquire
033	00RA568	BOLT - M6X20 - HEX	00RA568 BOLT - M6X20 - HEX Row ID: ID__00RA568_ContPgHS;	-	1	Enquire
