16 - SUSPENSION - 16.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 16 - SUSPENSION - 16.3 - TRANSVERSE LINKS FRONT

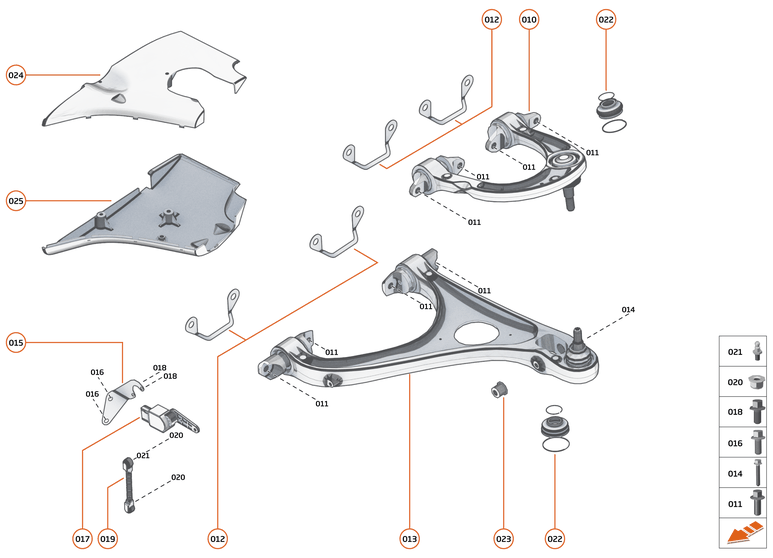

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	26BA140SP	ASSY-WISHBONE-UPR-FR-LH	26BA140SP ASSY-WISHBONE-UPR-FR-LH Row ID: ID__26BA140SP_ContPgHS;	-	1	Enquire
010	26BA141SP	ASSY-WISHBONE-UPR-FR-RH	26BA141SP ASSY-WISHBONE-UPR-FR-RH Row ID: ID__26BA141SP_ContPgHS;	-	1	Enquire
011	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Row ID: ID__00RA457_ContPgHS;	-	4	Enquire
012	14BA135CP	SPACER - WISHBONE	14BA135CP SPACER - WISHBONE Row ID: ID__14BA135CP_ContPgHS;	-	1	Enquire
013	14B0712CP	WISHBONE - LOWER - FRONT - LH	14B0712CP WISHBONE - LOWER - FRONT - LH Row ID: ID__14B0712CP_ContPgHS;	-	1	Enquire
013	14B0718CP	WISHBONE - LOWER - FRONT - RH	14B0718CP WISHBONE - LOWER - FRONT - RH Row ID: ID__14B0718CP_ContPgHS;	-	1	Enquire
014	11B1314CP	BOLT - M10X70 - DAMPER MOUNTING - LOWER	11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER Row ID: ID__11B1314CP_ContPgHS;	-	1	Enquire
015	14BA004CP	BRACKET - DISPLACEMENT SENSOR - FRONT - LH	14BA004CP BRACKET - DISPLACEMENT SENSOR - FRONT - LH Row ID: ID__14BA004CP_ContPgHS;	-	1	Enquire
015	14BA006CP	BRACKET - DISPLACEMENT SENSOR - FRONT - RH	14BA006CP BRACKET - DISPLACEMENT SENSOR - FRONT - RH Row ID: ID__14BA006CP_ContPgHS;	-	1	Enquire
016	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	2	Enquire
017	13B0681CP	SENSOR - DISPLACEMENT	13B0681CP SENSOR - DISPLACEMENT Row ID: ID__13B0681CP_ContPgHS;	-	1	Enquire
018	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	2	Enquire
019	14B0494CP	BALL SCKT SENSOR DISPLACEMENT - GIMBAL	14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL Row ID: ID__14B0494CP_ContPgHS;	-	1	Enquire
020	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	1	Enquire
021	14B0545CP	BALL STUD - DISPLACEMENT SENSOR	14B0545CP BALL STUD - DISPLACEMENT SENSOR Row ID: ID__14B0545CP_ContPgHS;	-	2	Enquire
022	00RA218	RING-PLAIN EXTERNAL-M2400-0400	00RA218 RING-PLAIN EXTERNAL-M2400-0400 Row ID: ID__00RA218_ContPgHS;	-	1	Enquire
023	11B0800CP	Tophat - Spacer - Diameter 20 - 10.2 ID	11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID Row ID: ID__11B0800CP_ContPgHS;	-	1	Enquire
024	26BA164SP	WISHBONE SHROUD UPPER LH	26BA164SP WISHBONE SHROUD UPPER LH Row ID: ID__26BA164SP_ContPgHS;	-	1	Enquire
024	26BA165SP	WISHBONE SHROUD UPPER RH	26BA165SP WISHBONE SHROUD UPPER RH Row ID: ID__26BA165SP_ContPgHS;	-	1	Enquire
025	26BA166SP	WISHBONE SHROUD LOWER LH	26BA166SP WISHBONE SHROUD LOWER LH Row ID: ID__26BA166SP_ContPgHS;	-	1	Enquire
025	26BA167SP	WISHBONE SHROUD LOWER RH	26BA167SP WISHBONE SHROUD LOWER RH Row ID: ID__26BA167SP_ContPgHS;	-	1	Enquire
026	14BA246CP	WISHBONE BUSH	14BA246CP WISHBONE BUSH Row ID: ID__14BA246CP_ContPgHS;	-	1	Enquire
027	14BA255CP	WISHBONE BUSH - 3.5MM	14BA255CP WISHBONE BUSH - 3.5MM Row ID: ID__14BA255CP_ContPgHS;	-	1	Enquire
