18 - AERO MECHANISMS - 18.1 - FRONT ACTIVE AERO MECHANISMS of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 18 - AERO MECHANISMS - 18.1 - FRONT ACTIVE AERO MECHANISMS

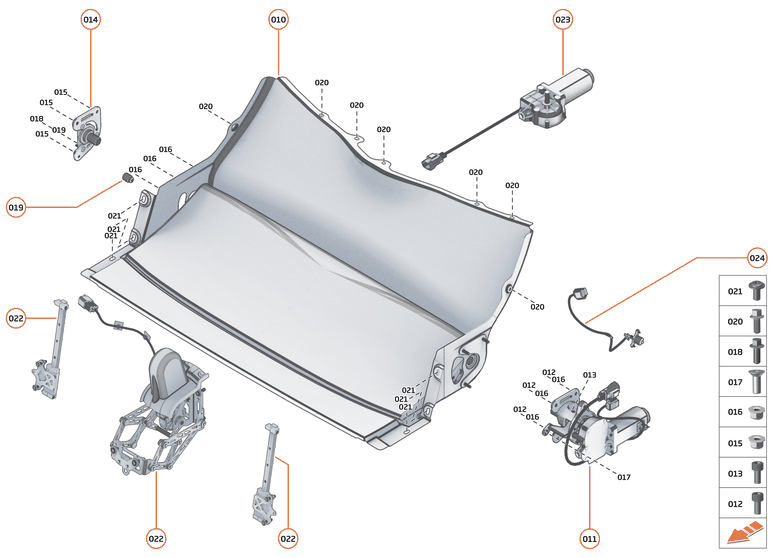

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	26AC136SP	ASSY AAMS LOWER VALVE	26AC136SP ASSY AAMS LOWER VALVE Row ID: ID__26AC136SP_ContPgHS;	-	1	Enquire
010	26AC470SP	ASSY AAMS VALVE BODY	26AC470SP ASSY AAMS VALVE BODY Row ID: ID__26AC470SP_ContPgHS;	-	1	Enquire
010	26AA380SP	AAMS DUCT LOWER PANEL	26AA380SP AAMS DUCT LOWER PANEL Row ID: ID__26AA380SP_ContPgHS;	-	1	Enquire
011	26AC770SP	ASSY AAMS VALVE MOTOR	26AC770SP ASSY AAMS VALVE MOTOR Row ID: ID__26AC770SP_ContPgHS;	-	1	Enquire
012	00RA580	SCREW - M6X1X16	00RA580 SCREW - M6X1X16 Row ID: ID__00RA580_ContPgHS;	-	3	Enquire
013	00RA152	SCREW CAP - M6X25 - HEX SOCKET	00RA152 SCREW CAP - M6X25 - HEX SOCKET Row ID: ID__00RA152_ContPgHS;	-	1	Enquire
014	26AC037SP	ASSY AAMS VALVE MOUNT RH	26AC037SP ASSY AAMS VALVE MOUNT RH Row ID: ID__26AC037SP_ContPgHS;	-	1	Enquire
015	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	3	Enquire
016	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	6	Enquire
017	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket Row ID: ID__00RA311_ContPgHS;	-	1	Enquire
018	00RA581	BOLT - HEX HEAD - FLANGE - M6X30	00RA581 BOLT - HEX HEAD - FLANGE - M6X30 Row ID: ID__00RA581_ContPgHS;	-	1	Enquire
019	26AC991SP	END STOP - AAMS VALVE END PLATE RH	26AC991SP END STOP - AAMS VALVE END PLATE RH Row ID: ID__26AC991SP_ContPgHS;	-	1	Enquire
020	00RA729	BOLT - M5X0.8X16-SS-90 - HEX	00RA729 BOLT - M5X0.8X16-SS-90 - HEX Row ID: ID__00RA729_ContPgHS;	-	7	Enquire
021	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	6	Enquire
022	26AD236SP	AAMS DYNAMIC GURNEY MECHANISM	26AD236SP AAMS DYNAMIC GURNEY MECHANISM Row ID: ID__26AD236SP_ContPgHS;	-	1	Enquire
023	26AC149SP	ACTUATOR FRONT ACTIVE AERO	26AC149SP ACTUATOR FRONT ACTIVE AERO Row ID: ID__26AC149SP_ContPgHS;	-	1	Enquire
024	15AB852CP	POSITION SENSOR FR - ROTARY VERT-X 16E - FRONT	15AB852CP POSITION SENSOR FR - ROTARY VERT-X 16E - FRONT Row ID: ID__15AB852CP_ContPgHS;	-	1	Enquire
