McLaren Ultimate Series McLaren Elva - 6 - PANELS - 6.4 - REAR PANELS

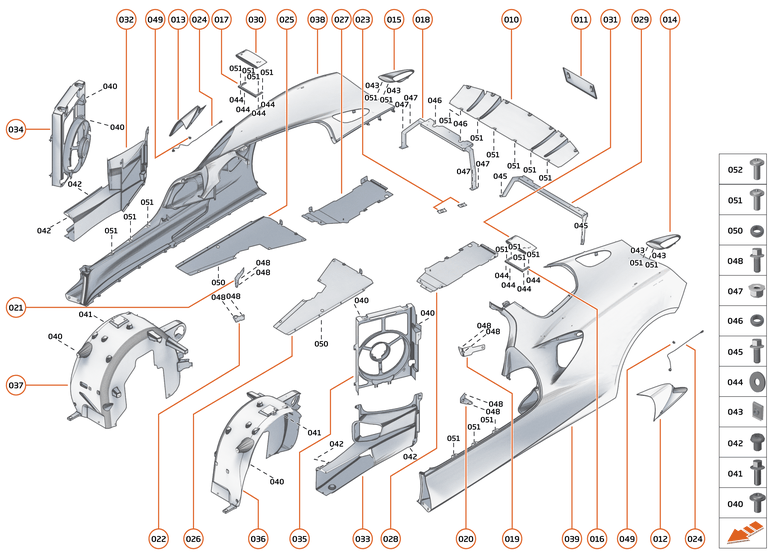

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	1	Enquire
000	00RC134	WSHR-PLN-M8X17X1-SS-90	00RC134 WSHR-PLN-M8X17X1-SS-90 Row ID: ID__00RC134_ContPgHS;	-	1	Enquire
000	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	1	Enquire
000	14A3790CP	SCREW - CAP HEAD - FLANGE - M6X1X18-10.9	14A3790CP SCREW - CAP HEAD - FLANGE - M6X1X18-10.9 Row ID: ID__14A3790CP_ContPgHS;	-	1	Enquire
000	13MA021CP	O RING SEAL	13MA021CP O RING SEAL Row ID: ID__13MA021CP_ContPgHS;	-	1	Enquire
000	13MA026CP	HEX NUT M19 X 0.75	13MA026CP HEX NUT M19 X 0.75 Row ID: ID__13MA026CP_ContPgHS;	-	1	Enquire
000	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	2	Enquire
000	00RA600	SCREW - HEX HEAD - M6X1X20-8.8-78	00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Row ID: ID__00RA600_ContPgHS;	-	2	Enquire
000	00RC016	WASHER - M6X12.5X1.8	00RC016 WASHER - M6X12.5X1.8 Row ID: ID__00RC016_ContPgHS;	-	1	Enquire
010	26AA124SP	ASSY - BUMPER ACCESS PNL RR	26AA124SP ASSY - BUMPER ACCESS PNL RR Row ID: ID__26AA124SP_ContPgHS;	-	1	Enquire
011	15AC398CP	LICENCE PLATE - MOUNTING PLINTH - EU - GLOSS CARBON	15AC398CP LICENCE PLATE - MOUNTING PLINTH - EU - GLOSS CARBON Row ID: ID__15AC398CP_ContPgHS;	-	1	Enquire
011	15AC391CP	LICENCE PLATE RR - MOUNTING PLINTH - REST OF WORLD	15AC391CP LICENCE PLATE RR - MOUNTING PLINTH - REST OF WORLD Row ID: ID__15AC391CP_ContPgHS;	-	1	Enquire
012	26AB239SP	ASSY - HTR DUCT COVER LH	26AB239SP ASSY - HTR DUCT COVER LH Row ID: ID__26AB239SP_ContPgHS;	-	1	Enquire
013	26AC958SP	ASSY - HTR DUCT COVER RH	26AC958SP ASSY - HTR DUCT COVER RH Row ID: ID__26AC958SP_ContPgHS;	-	1	Enquire
014	26AA797SP	ASSY - DIRTY AIR DUCT LH	26AA797SP ASSY - DIRTY AIR DUCT LH Row ID: ID__26AA797SP_ContPgHS;	-	1	Enquire
015	26AA801SP	ASSY - DIRTY AIR DUCT RH	26AA801SP ASSY - DIRTY AIR DUCT RH Row ID: ID__26AA801SP_ContPgHS;	-	1	Enquire
016	26AA935SP	ASSY - ROPS COVER MTG BRKT - LH	26AA935SP ASSY - ROPS COVER MTG BRKT - LH Row ID: ID__26AA935SP_ContPgHS;	-	1	Enquire
017	26AA938SP	ASSY - ROPS COVER MTG BRKT - RH	26AA938SP ASSY - ROPS COVER MTG BRKT - RH Row ID: ID__26AA938SP_ContPgHS;	-	1	Enquire
018	26AC369SP	ASSY - REAR SUPPORT BRACE	26AC369SP ASSY - REAR SUPPORT BRACE Row ID: ID__26AC369SP_ContPgHS;	-	1	Enquire
019	26AB214SP	BRKT HTR FAN COWL UPR LH	26AB214SP BRKT HTR FAN COWL UPR LH Row ID: ID__26AB214SP_ContPgHS;	-	1	Enquire
020	26AB216SP	BRKT HTR FAN COWL LWR LH	26AB216SP BRKT HTR FAN COWL LWR LH Row ID: ID__26AB216SP_ContPgHS;	-	1	Enquire
021	26AB215SP	BRKT HTR FAN COWL UPR RH	26AB215SP BRKT HTR FAN COWL UPR RH Row ID: ID__26AB215SP_ContPgHS;	-	1	Enquire
022	26AB217SP	BRKT HTR FAN COWL LWR RH	26AB217SP BRKT HTR FAN COWL LWR RH Row ID: ID__26AB217SP_ContPgHS;	-	1	Enquire
023	26AC363SP	DATUM PLATE RR	26AC363SP DATUM PLATE RR Row ID: ID__26AC363SP_ContPgHS;	-	1	Enquire
023	26AB233SP	DATUM PLATE REAR	26AB233SP DATUM PLATE REAR Row ID: ID__26AB233SP_ContPgHS;	-	1	Enquire
024	13MA028CP	SWITCH - DOOR LOCK - PIEZOELECTRIC	13MA028CP SWITCH - DOOR LOCK - PIEZOELECTRIC Row ID: ID__13MA028CP_ContPgHS;	-	2	Enquire
025	26AB719SP	ASSY - BODYSIDE EXTENSION - FLOOR PANEL RH	26AB719SP ASSY - BODYSIDE EXTENSION - FLOOR PANEL RH Row ID: ID__26AB719SP_ContPgHS;	-	1	Enquire
026	26AB716SP	ASSY - BODYSIDE EXTENSION - FLOOR PANEL LH	26AB716SP ASSY - BODYSIDE EXTENSION - FLOOR PANEL LH Row ID: ID__26AB716SP_ContPgHS;	-	1	Enquire
027	26AB112SP	ASSY - FLOOR PANEL REAR RH	26AB112SP ASSY - FLOOR PANEL REAR RH Row ID: ID__26AB112SP_ContPgHS;	-	1	Enquire
028	26AB109SP	ASSY - FLOOR PANEL REAR LH	26AB109SP ASSY - FLOOR PANEL REAR LH Row ID: ID__26AB109SP_ContPgHS;	-	1	Enquire
029	26AA954SP	ASSY - CENTRE SUPPORT BRACE	26AA954SP ASSY - CENTRE SUPPORT BRACE Row ID: ID__26AA954SP_ContPgHS;	-	1	Enquire
030	26AD019SP	ASSY - ROPS COVER PANEL - RH	26AD019SP ASSY - ROPS COVER PANEL - RH Row ID: ID__26AD019SP_ContPgHS;	-	1	Enquire
031	26AA648SP	ASSY - ROPS COVER PANEL - LH	26AA648SP ASSY - ROPS COVER PANEL - LH Row ID: ID__26AA648SP_ContPgHS;	-	1	Enquire
032	26AC813SP	ASSY - HIGH TEMPERATURE DUCT RH	26AC813SP ASSY - HIGH TEMPERATURE DUCT RH Row ID: ID__26AC813SP_ContPgHS;	-	1	Enquire
033	26AC812SP	ASSY - HIGH TEMPERATURE DUCT LH	26AC812SP ASSY - HIGH TEMPERATURE DUCT LH Row ID: ID__26AC812SP_ContPgHS;	-	1	Enquire
034	26AC776SP	ASSY - HIGH TEMPERATURE FAN COOLING RH	26AC776SP ASSY - HIGH TEMPERATURE FAN COOLING RH Row ID: ID__26AC776SP_ContPgHS;	-	1	Enquire
035	26AC775SP	ASSY - HIGH TEMPERATURE FAN COOLING LH	26AC775SP ASSY - HIGH TEMPERATURE FAN COOLING LH Row ID: ID__26AC775SP_ContPgHS;	-	1	Enquire
036	26AD186SP	ASSY - REAR SUPER WAL LH	26AD186SP ASSY - REAR SUPER WAL LH Row ID: ID__26AD186SP_ContPgHS;	-	1	Enquire
037	26AD187SP	ASSY - REAR SUPER WAL RH	26AD187SP ASSY - REAR SUPER WAL RH Row ID: ID__26AD187SP_ContPgHS;	-	1	Enquire
038	26AD195SP	ASSY - BODYSIDE - RH	26AD195SP ASSY - BODYSIDE - RH Row ID: ID__26AD195SP_ContPgHS;	-	1	Enquire
039	26AD196SP	ASSY - BODYSIDE - LH	26AD196SP ASSY - BODYSIDE - LH Row ID: ID__26AD196SP_ContPgHS;	-	1	Enquire
040	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	6	Enquire
041	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Row ID: ID__00RA486_ContPgHS;	-	2	Enquire
042	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Row ID: ID__00RA353_ContPgHS;	-	4	Enquire
043	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS;	-	4	Enquire
044	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	8	Enquire
045	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Row ID: ID__00RA344_ContPgHS;	-	2	Enquire
046	13A3489CP	GROMMET - BULKHEAD TO DECK BRACKET	13A3489CP GROMMET - BULKHEAD TO DECK BRACKET Row ID: ID__13A3489CP_ContPgHS;	-	2	Enquire
047	00RA309	NUT - M6-SS - HEX	00RA309 NUT - M6-SS - HEX Row ID: ID__00RA309_ContPgHS;	-	4	Enquire
048	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	8	Enquire
049	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	2	Enquire
050	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID__00RG011_ContPgHS;	-	2	Enquire
051	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	99	Enquire
052	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	6	Enquire
