2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

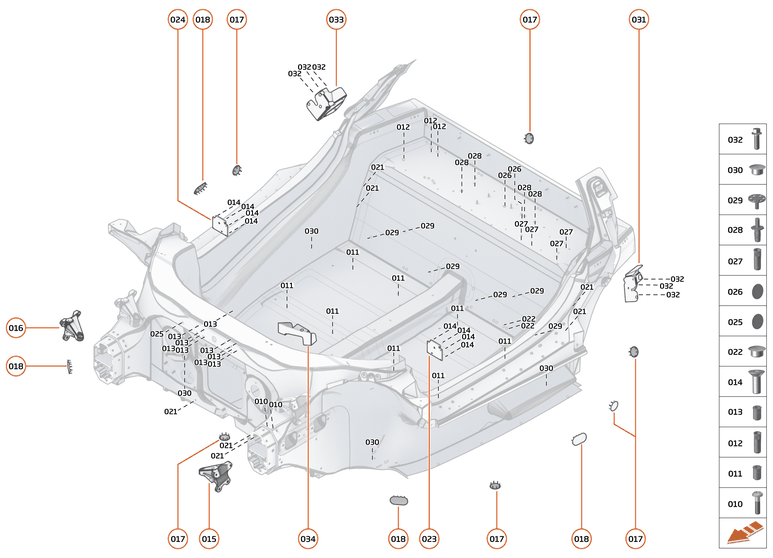

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Row ID: ID__00RA522_ContPgHS;	-	2	Enquire
011	00RM029	RIVNUT-O-GRIP-M6X1.5-3-SS-00	00RM029 RIVNUT-O-GRIP-M6X1.5-3-SS-00 Row ID: ID__00RM029_ContPgHS;	-	8	Enquire
012	00RM028	RIVNUT-B-GRIP-M6X1.5-3-SS-00	00RM028 RIVNUT-B-GRIP-M6X1.5-3-SS-00 Row ID: ID__00RM028_ContPgHS;	-	3	Enquire
013	00RA702	RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	00RA702 RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT Row ID: ID__00RA702_ContPgHS;	-	8	Enquire
014	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket Row ID: ID__00RA311_ContPgHS;	-	8	Enquire
015	11A7142CP	BRACKET - DAMPER MOUNTING - LH	11A7142CP BRACKET - DAMPER MOUNTING - LH Row ID: ID__11A7142CP_ContPgHS;	-	1	Enquire
016	11A7143CP	BRACKET - DAMPER MOUNTING - RH	11A7143CP BRACKET - DAMPER MOUNTING - RH Row ID: ID__11A7143CP_ContPgHS;	-	1	Enquire
017	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	11A5734CP BLANKING PLUG - CIRCULAR - 42MM Row ID: ID__11A5734CP_ContPgHS;	-	6	Enquire
018	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM Row ID: ID__11A5735CP_ContPgHS;	-	4	Enquire
019	11A7572CP	NUT PLATE - A-POST - M8	11A7572CP NUT PLATE - A-POST - M8 Row ID: ID__11A7572CP_ContPgHS;	-	6	Enquire
020	11A7573CP	NUT PLATE - B-POST - M8	11A7573CP NUT PLATE - B-POST - M8 Row ID: ID__11A7573CP_ContPgHS;	-	6	Enquire
021	00RG023	GROMMET - CHILD ANCHORAGE BRACKET HOLES	00RG023 GROMMET - CHILD ANCHORAGE BRACKET HOLES Row ID: ID__00RG023_ContPgHS;	-	9	Enquire
022	00RG064	COVER PLUG - M9 BLACK	00RG064 COVER PLUG - M9 BLACK Row ID: ID__00RG064_ContPgHS;	-	2	Enquire
023	15AC180CP	LH PLATE P15 TUB CONV MACHINED	15AC180CP LH PLATE P15 TUB CONV MACHINED Row ID: ID__15AC180CP_ContPgHS;	-	1	Enquire
024	15AC182CP	RH PLATE P15 TUB CONV MACHINED	15AC182CP RH PLATE P15 TUB CONV MACHINED Row ID: ID__15AC182CP_ContPgHS;	-	1	Enquire
025	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE Row ID: ID__11A7484CP_ContPgHS;	-	4	Enquire
026	15AD019CP	TUB - BLACK DECAL - 120MM X 62MM	15AD019CP TUB - BLACK DECAL - 120MM X 62MM Row ID: ID__15AD019CP_ContPgHS;	-	2	Enquire
027	00RM031	RIVKLE-O-GRIP-THIN-CSK- - M5X1.5-3-SS-00	00RM031 RIVKLE-O-GRIP-THIN-CSK- - M5X1.5-3-SS-00 Row ID: ID__00RM031_ContPgHS;	-	4	Enquire
028	00RM032	RIVET-STUD-BLIND-M6X2-3.5-MS- - 72	00RM032 RIVET-STUD-BLIND-M6X2-3.5-MS- - 72 Row ID: ID__00RM032_ContPgHS;	-	4	Enquire
029	00RK005	STUD CIRCLE BASE M6X16-SS-00	00RK005 STUD CIRCLE BASE M6X16-SS-00 Row ID: ID__00RK005_ContPgHS;	-	6	Enquire
030	11A5736CP	PLUG - TUB DATUM	11A5736CP PLUG - TUB DATUM Row ID: ID__11A5736CP_ContPgHS;	-	4	Enquire
031	26AD050SP	DOOR LATCH MTG BRKT - LH	26AD050SP DOOR LATCH MTG BRKT - LH Row ID: ID__26AD050SP_ContPgHS;	-	1	Enquire
032	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Row ID: ID__00RA485_ContPgHS;	-	6	Enquire
033	26AD051SP	DOOR LATCH MTG BRKT - RH	26AD051SP DOOR LATCH MTG BRKT - RH Row ID: ID__26AD051SP_ContPgHS;	-	1	Enquire
034	26AC071SP	ASSY STEERING COLUMN BRKT LHD	26AC071SP ASSY STEERING COLUMN BRKT LHD Row ID: ID__26AC071SP_ContPgHS;	-	1	Enquire
034	26AC072SP	ASSY STEERING COLUMN BRKT RHD	26AC072SP ASSY STEERING COLUMN BRKT RHD Row ID: ID__26AC072SP_ContPgHS;	-	1	Enquire
