1 - Front Structures - 1.1 - Front Crash Structure

McLaren Ultimate Series McLaren Elva

Find Your Part

McLaren Ultimate Series McLaren Elva - 1 - FRONT STRUCTURES - 1.1 - FRONT CRASH STRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

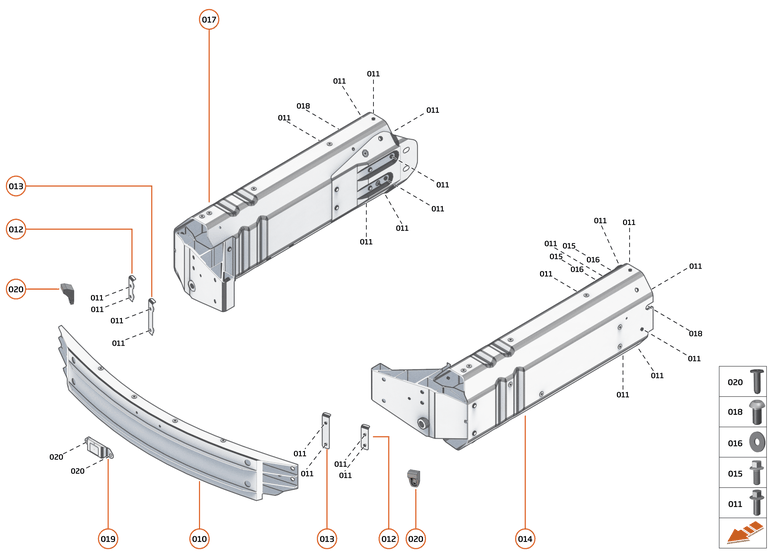

1 - FRONT STRUCTURES - 1.1 - FRONT CRASH STRUCTURE of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AA239CP
BUMPER BEAM - FRONT
Row ID: ID__14AA239CP_ContPgHS; 		- 1 Enquire
011 00RA557
BOLT - HEX HEAD - M8X1.25X25
Row ID: ID__00RA557_ContPgHS; 		- 9 Enquire
012 14A4434CP
NUT PLATE - BUMPER MOUNTING - FRONT - OUTBOARD
Row ID: ID__14A4434CP_ContPgHS; 		- 2 Enquire
013 14A4254CP
NUT PLATE - BUMPER MOUNTING - FRONT - INBOARD
Row ID: ID__14A4254CP_ContPgHS; 		- 2 Enquire
014 15AD355CP
ASSY-FRONT CRASH STRUCTURE-LH
Row ID: ID__15AD355CP_ContPgHS; 		- 1 Enquire
015 00RX043
BOLT - HEX HEAD - FLANGE - M8X20
Row ID: ID__00RX043_ContPgHS; 		- 2 Enquire
016 00RC015
WASHER - M8X24X2
Row ID: ID__00RC015_ContPgHS; 		- 2 Enquire
017 15AD356CP
ASSY-FRONT CRASH STRUCTURE-RH
Row ID: ID__15AD356CP_ContPgHS; 		- 1 Enquire
018 00RA282
SCREW - 12X25 - BUTTON
Row ID: ID__00RA282_ContPgHS; 		- 2 Enquire
019 26AC212SP
FEDERAL-FRONT CRASH BRKT
Row ID: ID__26AC212SP_ContPgHS; 		- 1 Enquire
020 00RM013
RIVET - 1/4 4.7-11MM - BLIND - HUCKLOK
Row ID: ID__00RM013_ContPgHS; 		- 2 Enquire
021 26AC224SP
BLOCK -PENDULUM CATCHER
Row ID: ID__26AC224SP_ContPgHS; 		- 2 Enquire
