McLaren Ultimate Series McLaren Elva - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

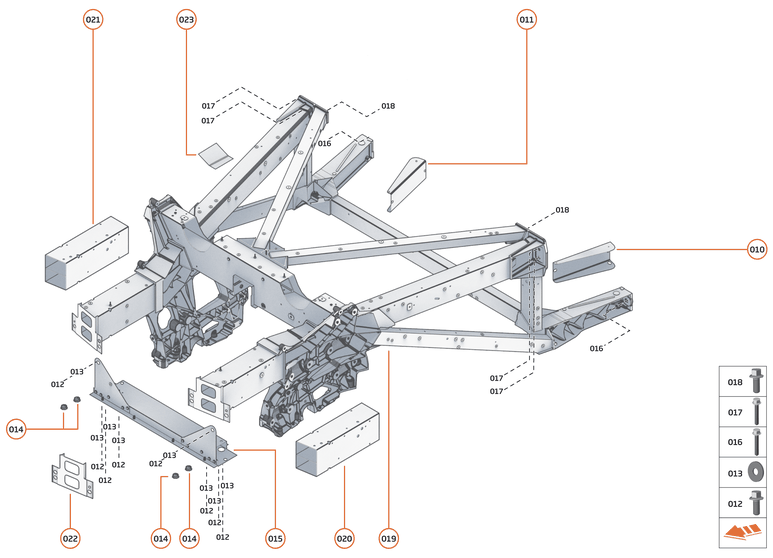

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A3816CP
COVER FRAME BULKHE24 MNTG LWR-
Row ID: ID__11A3816CP_ContPgHS; 		$95.65 1
011 11A3817CP
COVER FRAME BULKHE24 MNTG LWR-
Row ID: ID__11A3817CP_ContPgHS; 		$95.65 1
012 00RA457
SCREW - M10X30-10.9 - HEX
Row ID: ID__00RA457_ContPgHS; 		- 8 Enquire
013 00RC065
WASHER - M10X21X2.0
Row ID: ID__00RC065_ContPgHS; 		- 8 Enquire
014 11A4284CP
PLUG - DOME - 25 DIAMETER
Row ID: ID__11A4284CP_ContPgHS; 		- 4 Enquire
015 15AC169CP
CROSS BEAM - TRANSMISSION FLOOR
Row ID: ID__15AC169CP_ContPgHS; 		- 1 Enquire
016 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10
Row ID: ID__00RA164_ContPgHS; 		- 2 Enquire
017 00RA400
SCREW - HEX HEAD - M10X60 - 10.9
Row ID: ID__00RA400_ContPgHS; 		- 4 Enquire
018 00RA559
BOLT - HEX HEAD - M10X1.5X40
Row ID: ID__00RA559_ContPgHS; 		- 2 Enquire
019 15AC601CP
FRAME ASSY - REAR
Row ID: ID__15AC601CP_ContPgHS; 		- 1 Enquire
020 15AB654CP
REAR CRASH CAN-LH
Row ID: ID__15AB654CP_ContPgHS; 		- 1 Enquire
021 15AB656CP
REAR CRASH CAN-RH
Row ID: ID__15AB656CP_ContPgHS; 		- 1 Enquire
022 11A8232RP
BRKT-BUMPER-RR-MNTG RH
Row ID: ID__11A8232RP_ContPgHS; 		- 1 Enquire
023 11A4758CP
BLACK DECAL BODYSIDE REAR LOWE
Row ID: ID__11A4758CP_ContPgHS; 		$15.09 1
