7 - CLOSURES - 7.4 - DOOR HINGE of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 7 - CLOSURES - 7.4 - DOOR HINGE

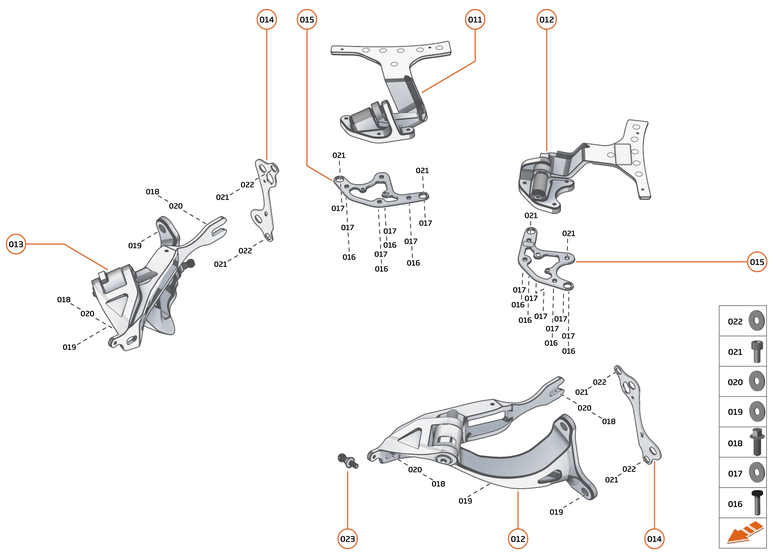

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Row ID: ID__00RA486_ContPgHS;	-	2	Enquire
000	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	2	Enquire
000	00RA695	ISO 7380-2 BTN HD FL-M5X16-SS	00RA695 ISO 7380-2 BTN HD FL-M5X16-SS Row ID: ID__00RA695_ContPgHS;	-	2	Enquire
010	23AA199CP	ASSY - HINGE DOOR - UPR - LH	23AA199CP ASSY - HINGE DOOR - UPR - LH Row ID: ID__23AA199CP_ContPgHS;	-	1	Enquire
011	23AA203CP	ASSY - HINGE DOOR - UPR - RH	23AA203CP ASSY - HINGE DOOR - UPR - RH Row ID: ID__23AA203CP_ContPgHS;	-	1	Enquire
012	23AA332CP	ASSY - HINGE DOOR - LWR - LH	23AA332CP ASSY - HINGE DOOR - LWR - LH Row ID: ID__23AA332CP_ContPgHS;	-	1	Enquire
013	23AA337CP	ASSY - HINGE DOOR - LWR - RH	23AA337CP ASSY - HINGE DOOR - LWR - RH Row ID: ID__23AA337CP_ContPgHS;	-	1	Enquire
014	23AB494CP	DOOR HINGE DATUM PLATE	23AB494CP DOOR HINGE DATUM PLATE Row ID: ID__23AB494CP_ContPgHS;	-	2	Enquire
015	23AD760CP	SHIM PACK HINGE UPR STATIC	23AD760CP SHIM PACK HINGE UPR STATIC Row ID: ID__23AD760CP_ContPgHS;	-	2	Enquire
015	23AC392CP	GASKET HINGE UPR STATIC	23AC392CP GASKET HINGE UPR STATIC Row ID: ID__23AC392CP_ContPgHS;	-	2	Enquire
016	00RA600	SCREW - HEX HEAD - M6X1X20-8.8-78	00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Row ID: ID__00RA600_ContPgHS;	-	8	Enquire
017	00RC028	WASHER - M6 FORM C	00RC028 WASHER - M6 FORM C Row ID: ID__00RC028_ContPgHS;	-	16	Enquire
017	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	16	Enquire
018	00RA616	BOLT - M10X1.5 - HEX	00RA616 BOLT - M10X1.5 - HEX Row ID: ID__00RA616_ContPgHS;	-	4	Enquire
019	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID__00RC048_ContPgHS;	-	4	Enquire
020	00RC034	WASHER - PLAIN - M12X28X2.7	00RC034 WASHER - PLAIN - M12X28X2.7 Row ID: ID__00RC034_ContPgHS;	-	4	Enquire
021	00RA124	SCREW - M5X10 - ISO4762	00RA124 SCREW - M5X10 - ISO4762 Row ID: ID__00RA124_ContPgHS;	-	8	Enquire
022	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	2	Enquire
023	11A4503CP	BALL STUD - DOOR STRUT	11A4503CP BALL STUD - DOOR STRUT Row ID: ID__11A4503CP_ContPgHS;	-	1	Enquire
