6 - PANELS - 6.2 - REAR PANELS of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 6 - PANELS - 6.2 - REAR PANELS

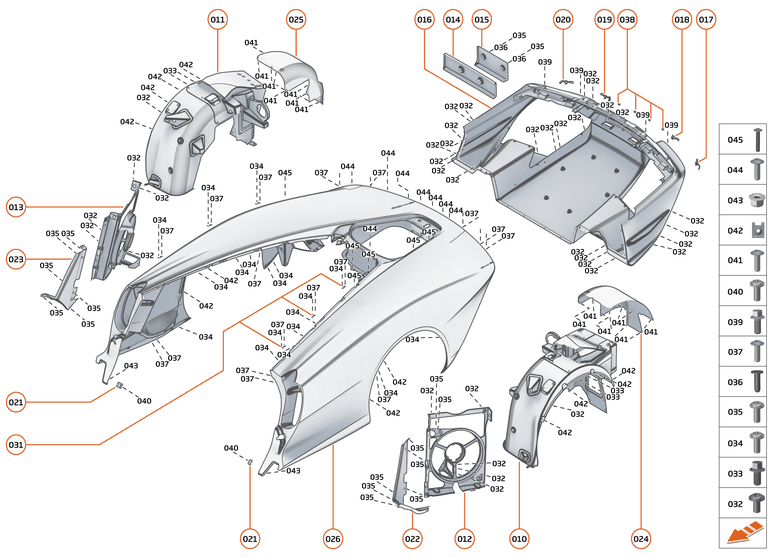

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	23AE875CP	PPF - DIFFUSER -LH SIDE	23AE875CP PPF - DIFFUSER -LH SIDE Row ID: ID__23AE875CP_ContPgHS;	-	1	Enquire
000	23AE876CP	PPF - DIFFUSER -RH SIDE	23AE876CP PPF - DIFFUSER -RH SIDE Row ID: ID__23AE876CP_ContPgHS;	-	1	Enquire
000	23AE877CP	PPF - DIFFUSER - INNER LH SIDE	23AE877CP PPF - DIFFUSER - INNER LH SIDE Row ID: ID__23AE877CP_ContPgHS;	-	1	Enquire
000	23AE878CP	PPF - DIFFUSER - INNER RH SIDE	23AE878CP PPF - DIFFUSER - INNER RH SIDE Row ID: ID__23AE878CP_ContPgHS;	-	1	Enquire
000	23AE879CP	PPF - DIFFUSER - MIDDLE	23AE879CP PPF - DIFFUSER - MIDDLE Row ID: ID__23AE879CP_ContPgHS;	-	1	Enquire
000	23AE883CP	PPF - REAR QUARTER LH	23AE883CP PPF - REAR QUARTER LH Row ID: ID__23AE883CP_ContPgHS;	-	1	Enquire
000	23AE884CP	PPF - REAR QUARTER RH	23AE884CP PPF - REAR QUARTER RH Row ID: ID__23AE884CP_ContPgHS;	-	1	Enquire
-	00RA512	RIVNUT-O-GRIP-M6X14.5-STL-80	00RA512 RIVNUT-O-GRIP-M6X14.5-STL-80 Row ID: ID__00RA512_ContPgHS;	-	2	Enquire
-	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	4	Enquire
010	23AD756CP	ASSY - RR SUPER WAL LH	23AD756CP ASSY - RR SUPER WAL LH Row ID: ID__23AD756CP_ContPgHS;	-	1	Enquire
011	23AD778CP	ASSY - RR SUPER WAL RH	23AD778CP ASSY - RR SUPER WAL RH Row ID: ID__23AD778CP_ContPgHS;	-	1	Enquire
012	23AD781CP	HTR FAN COWLING LH MAC	23AD781CP HTR FAN COWLING LH MAC Row ID: ID__23AD781CP_ContPgHS;	-	1	Enquire
013	23AD990CP	HTR FAN COWLING RH MAC	23AD990CP HTR FAN COWLING RH MAC Row ID: ID__23AD990CP_ContPgHS;	-	1	Enquire
014	23AA961CP	LICENCE PLATE PLINTH RR EU MAC	23AA961CP LICENCE PLATE PLINTH RR EU MAC Row ID: ID__23AA961CP_ContPgHS;	-	1	Enquire
015	23AA964CP	LICENCE PLATE PLINTH RR FEDERA	23AA964CP LICENCE PLATE PLINTH RR FEDERA Row ID: ID__23AA964CP_ContPgHS;	-	1	Enquire
016	23AA283CP	ASSY RR DIFFUSER LH	23AA283CP ASSY RR DIFFUSER LH Row ID: ID__23AA283CP_ContPgHS;	-	1	Enquire
017	23AC364CP	MLDG - RR DIFFUSER PDC - OTR L	23AC364CP MLDG - RR DIFFUSER PDC - OTR L Row ID: ID__23AC364CP_ContPgHS;	-	1	Enquire
018	23AC365CP	MLDG - RR DIFFUSER PDC - INR L	23AC365CP MLDG - RR DIFFUSER PDC - INR L Row ID: ID__23AC365CP_ContPgHS;	-	1	Enquire
019	23AC366CP	MLDG - RR DIFFUSER PDC - INR R	23AC366CP MLDG - RR DIFFUSER PDC - INR R Row ID: ID__23AC366CP_ContPgHS;	-	1	Enquire
020	23AC367CP	MLDG - RR DIFFUSER PDC - OTR R	23AC367CP MLDG - RR DIFFUSER PDC - OTR R Row ID: ID__23AC367CP_ContPgHS;	-	1	Enquire
021	23AD783CP	DOP BRCKT ADJUST	23AD783CP DOP BRCKT ADJUST Row ID: ID__23AD783CP_ContPgHS;	-	1	Enquire
022	23AB155CP	ASSY - HEATER - DUCT MAC - LH	23AB155CP ASSY - HEATER - DUCT MAC - LH Row ID: ID__23AB155CP_ContPgHS;	-	1	Enquire
023	23AB158CP	ASSY - HEATER - DUCT MAC - RH	23AB158CP ASSY - HEATER - DUCT MAC - RH Row ID: ID__23AB158CP_ContPgHS;	-	1	Enquire
024	23AB044CP	RR SUPER WAL COVER LH MAC	23AB044CP RR SUPER WAL COVER LH MAC Row ID: ID__23AB044CP_ContPgHS;	-	1	Enquire
025	23AD747CP	RR SUPER WAL COVER RH MAC	23AD747CP RR SUPER WAL COVER RH MAC Row ID: ID__23AD747CP_ContPgHS;	-	1	Enquire
026	23AC015CP	ASSY - RR CLAM OPT	23AC015CP ASSY - RR CLAM OPT Row ID: ID__23AC015CP_ContPgHS;	-	1	Enquire
031	23AB774CP	BODY SHIM - 0.2MM	23AB774CP BODY SHIM - 0.2MM Row ID: ID__23AB774CP_ContPgHS;	-	8	Enquire
031	23AB819CP	BODY SHIM - 0.5MM	23AB819CP BODY SHIM - 0.5MM Row ID: ID__23AB819CP_ContPgHS;	-	8	Enquire
031	23AC953CP	BODY SHIM - 1.0MM	23AC953CP BODY SHIM - 1.0MM Row ID: ID__23AC953CP_ContPgHS;	-	6	Enquire
032	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	41	Enquire
033	00RA588	BOLT - M8X1.25X14	00RA588 BOLT - M8X1.25X14 Row ID: ID__00RA588_ContPgHS;	-	4	Enquire
034	00RA695	ISO 7380-2 BTN HD FL-M5X16-SS	00RA695 ISO 7380-2 BTN HD FL-M5X16-SS Row ID: ID__00RA695_ContPgHS;	-	18	Enquire
035	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	16	Enquire
036	00RA497	RIVNUT-O-PLAIN-M5X10.5-STL-80	00RA497 RIVNUT-O-PLAIN-M5X10.5-STL-80 Row ID: ID__00RA497_ContPgHS;	-	2	Enquire
037	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS;	-	22	Enquire
038	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS Row ID: ID__11A7405CP_ContPgHS;	-	4	Enquire
039	00RA515	BOLT - HEX - FLANGE - M6X16	00RA515 BOLT - HEX - FLANGE - M6X16 Row ID: ID__00RA515_ContPgHS;	-	4	Enquire
040	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	2	Enquire
041	00RA720	SCREW-BTN HD-HEX-FL-M4X10-A2-7	00RA720 SCREW-BTN HD-HEX-FL-M4X10-A2-7 Row ID: ID__00RA720_ContPgHS;	-	20	Enquire
042	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS;	-	12	Enquire
043	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
044	00RA608	SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00	00RA608 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00 Row ID: ID__00RA608_ContPgHS;	-	8	Enquire
045	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 Row ID: ID__00RA410_ContPgHS;	-	6	Enquire
