4 - Floors - 4.1 - Front Non-Structural Floors

McLaren Ultimate Series McLaren Speedtail

Find Your Part

McLaren Ultimate Series McLaren Speedtail - 4 - FLOORS - 4.1 - FRONT NON-STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

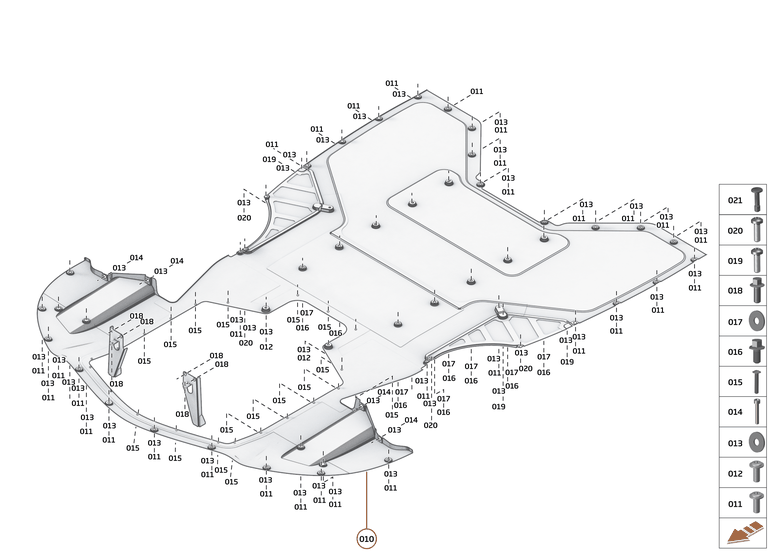

4 - FLOORS - 4.1 - FRONT NON-STRUCTURAL FLOORS of McLaren McLaren Ultimate Series McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23AD696CP
FRONT VISUAL FLOOR
Row ID: ID__23AD696CP_ContPgHS; 		- 1 Enquire
011 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID__00RA432_ContPgHS; 		- 40 Enquire
012 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK
Row ID: ID__00RA468_ContPgHS; 		- 2 Enquire
013 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL
Row ID: ID__00RC077_ContPgHS; 		- 54 Enquire
014 00RA257
BOLT-HEX SOCKET HD24AP-M6X55-8
Row ID: ID__00RA257_ContPgHS; 		- 4 Enquire
015 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX
Row ID: ID__00RA492_ContPgHS; 		- 20 Enquire
016 00RA588
BOLT - M8X1.25X14
Row ID: ID__00RA588_ContPgHS; 		- 10 Enquire
017 00RC048
WASHER - FORM C - 21X1.6 - M8
Row ID: ID__00RC048_ContPgHS; 		- 10 Enquire
018 00RA083
SCREW - M6X20 - FLANGE HEX
Row ID: ID__00RA083_ContPgHS; 		- 6 Enquire
019 00RA522
BOLT - BUTTON HEAD - TORX - M5X16
Row ID: ID__00RA522_ContPgHS; 		- 4 Enquire
020 00RA574
SCREW - M5X25 - TORX
Row ID: ID__00RA574_ContPgHS; 		- 4 Enquire
021 14AB763RP
MALE QTR TURN PIN D8-316-219-191
Row ID: ID__14AB763RP_ContPgHS; 		- 1 Enquire
