6 - Panels - 6.1 - Front Panels

McLaren Ultimate Series McLaren Speedtail

Find Your Part

McLaren Ultimate Series McLaren Speedtail - 6 - PANELS - 6.1 - FRONT PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

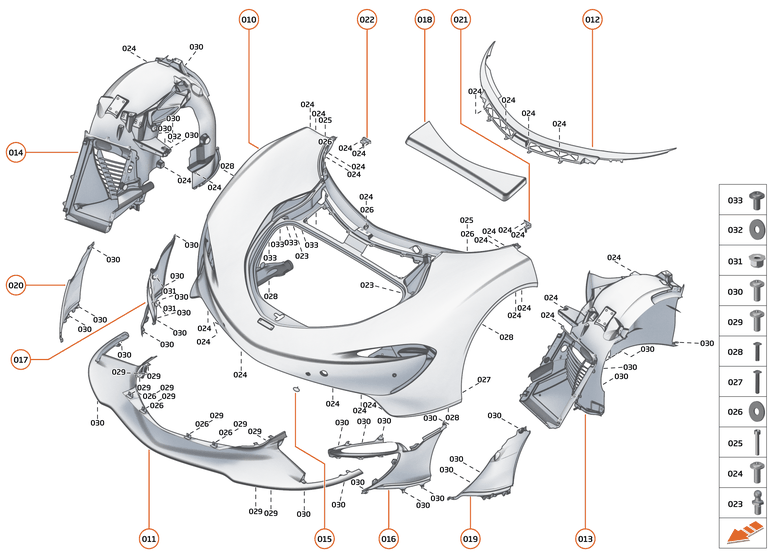

6 - PANELS - 6.1 - FRONT PANELS of McLaren McLaren Ultimate Series McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA621
SCREW - M6X24 - BUTTON
Row ID: ID__00RA621_ContPgHS; 		- 2 Enquire
000 23AB819CP
BODY SHIM - 0.5MM
Row ID: ID__23AB819CP_ContPgHS; 		- 24 Enquire
000 13AA452CP
SHIM - 0.5MM - REAR BUMPER - MY2015
Row ID: ID__13AA452CP_ContPgHS; 		- 1 Enquire
000 00RA398
SCREW - SOCKET HEAD - FLANGED - M5X10
Row ID: ID__00RA398_ContPgHS; 		- 4 Enquire
010 23AA218CP
ASSY FRONT CLAM
Row ID: ID__23AA218CP_ContPgHS; 		- 1 Enquire
010 23AD211CP
ASSY FRONT CLAM OPT
Row ID: ID__23AD211CP_ContPgHS; 		- 1 Enquire
011 23AA224CP
ASSY FRONT FLOOR
Row ID: ID__23AA224CP_ContPgHS; 		- 1 Enquire
012 23AA228CP
ASSY WIPER COVER PANEL
Row ID: ID__23AA228CP_ContPgHS; 		- 1 Enquire
013 23AE272CP
ASSY FR WAL LH
Row ID: ID__23AE272CP_ContPgHS; 		- 1 Enquire
014 23AE273CP
ASSY FR WAL RH
Row ID: ID__23AE273CP_ContPgHS; 		- 1 Enquire
015 23AB086CP
ASSY COVER TOW EYE
Row ID: ID__23AB086CP_ContPgHS; 		- 1 Enquire
015 23AD208CP
ASSY COVER TOW EYE OPT
Row ID: ID__23AD208CP_ContPgHS; 		- 1 Enquire
016 23AB378CP
HL BEZEL LH MAC
Row ID: ID__23AB378CP_ContPgHS; 		- 1 Enquire
017 23AB380CP
ASSY - HL BEZEL - MAC - RH
Row ID: ID__23AB380CP_ContPgHS; 		- 1 Enquire
018 23AB778CP
RESERVOIR COVER PNL MAC
Row ID: ID__23AB778CP_ContPgHS; 		- 1 Enquire
019 23AB963CP
HL DUCT PNL LH MAC
Row ID: ID__23AB963CP_ContPgHS; 		- 1 Enquire
020 23AB967CP
HL DUCT PNL RH MAC
Row ID: ID__23AB967CP_ContPgHS; 		- 1 Enquire
021 23AC004CP
MTG BRKT FR CLAM WSS LH
Row ID: ID__23AC004CP_ContPgHS; 		- 1 Enquire
022 23AC006CP
MTG BRKT FR CLAM WSS RH
Row ID: ID__23AC006CP_ContPgHS; 		- 1 Enquire
023 11A3663CP
BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT
Row ID: ID__11A3663CP_ContPgHS; 		- 2 Enquire
024 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK
Row ID: ID__00RA468_ContPgHS; 		- 29 Enquire
025 00RA257
BOLT-HEX SOCKET HD24AP-M6X55-8
Row ID: ID__00RA257_ContPgHS; 		- 2 Enquire
026 00RC008
WASHER - M6X12.5X0.9
Row ID: ID__00RC008_ContPgHS; 		- 5 Enquire
027 00RA410
BOLT - BUTTON - FLANGE - M6X40
Row ID: ID__00RA410_ContPgHS; 		- 2 Enquire
028 00RA608
SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00
Row ID: ID__00RA608_ContPgHS; 		- 4 Enquire
029 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD
Row ID: ID__00RA409_ContPgHS; 		- 4 Enquire
030 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID__00RA432_ContPgHS; 		- 32 Enquire
031 00RA011
NUT-HEX HEAD-FLANGE-M6-8
Row ID: ID__00RA011_ContPgHS; 		- 10 Enquire
032 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL
Row ID: ID__00RC077_ContPgHS; 		- 1 Enquire
033 00RA408
BUTTON HD FLANGE - M4X8
Row ID: ID__00RA408_ContPgHS; 		- 10 Enquire
