7 - CLOSURES - 7.1 - BONNET STRUCTURE of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 7 - CLOSURES - 7.1 - BONNET STRUCTURE

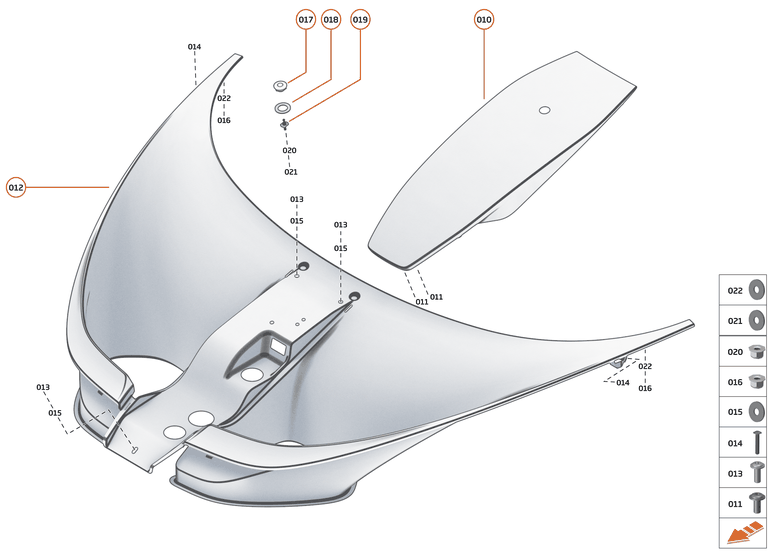

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AA551RP	ASSY ACCESS PNL-WASHER FLUID -	15AA551RP ASSY ACCESS PNL-WASHER FLUID - Row ID: ID__15AA551RP_ContPgHS;	-	1	Enquire
010	15AA091RP	ASSY ACCESS PNL-WASHER FLUID - - WASHER FLUID - CFG	15AA091RP ASSY ACCESS PNL-WASHER FLUID - - WASHER FLUID - CFG Row ID: ID__15AA091RP_ContPgHS;	-	1	Enquire
010	15AC914CP	ACCESS PANEL - WASHER FLUID - GLOSS CARBON	15AC914CP ACCESS PANEL - WASHER FLUID - GLOSS CARBON Row ID: ID__15AC914CP_ContPgHS;	-	1	Enquire
011	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	2	Enquire
012	15AA553RP	ASSY FR CLAM INR - CFS	15AA553RP ASSY FR CLAM INR - CFS Row ID: ID__15AA553RP_ContPgHS;	-	1	Enquire
012	15AA367RP	ASSY FR CLAM INR - CFG	15AA367RP ASSY FR CLAM INR - CFG Row ID: ID__15AA367RP_ContPgHS;	-	1	Enquire
012	15AD172CP	INNER CLAM - FRONT - DARK GLOSS CARBON	15AD172CP INNER CLAM - FRONT - DARK GLOSS CARBON Row ID: ID__15AD172CP_ContPgHS;	-	1	Enquire
013	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	3	Enquire
014	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 Row ID: ID__00RA410_ContPgHS;	-	2	Enquire
015	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	3	Enquire
016	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	2	Enquire
017	15AA420RP	QR PIT KING HEAD	15AA420RP QR PIT KING HEAD Row ID: ID__15AA420RP_ContPgHS;	-	1	Enquire
018	12A4099RP	WASHER - NYLON 20X37X3	12A4099RP WASHER - NYLON 20X37X3 Row ID: ID__12A4099RP_ContPgHS;	-	1	Enquire
019	15AA421RP	QR PIT KING TOP HAT - M6 X 1 X	15AA421RP QR PIT KING TOP HAT - M6 X 1 X Row ID: ID__15AA421RP_ContPgHS;	-	1	Enquire
020	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	1	Enquire
021	00RC016	WASHER - M6X12.5X1.8	00RC016 WASHER - M6X12.5X1.8 Row ID: ID__00RC016_ContPgHS;	-	1	Enquire
022	00RC056	Washer - M5x12.5x1 Form C	00RC056 Washer - M5x12.5x1 Form C Row ID: ID__00RC056_ContPgHS;	-	-	Enquire
