6 - PANELS - 6.3 - FRONT PANELS - CENTRE of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 6 - PANELS - 6.3 - FRONT PANELS - CENTRE

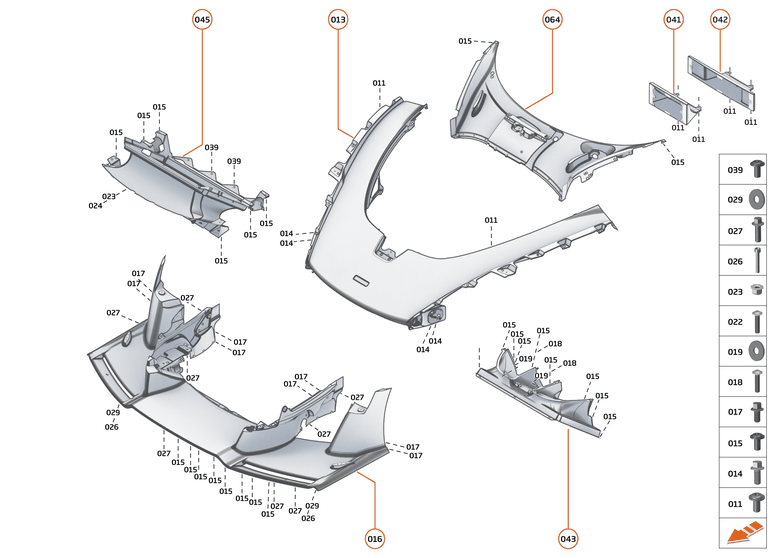

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	-	Enquire
013	15AD260CP	CLAM - OUTER - FRONT	15AD260CP CLAM - OUTER - FRONT Row ID: ID__15AD260CP_ContPgHS;	-	1	Enquire
013	15AC528CP	CLAM - OUTER - FRONT	15AC528CP CLAM - OUTER - FRONT Row ID: ID__15AC528CP_ContPgHS;	-	1	Enquire
014	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID__00RA557_ContPgHS;	-	-	Enquire
015	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	-	Enquire
016	15AA515RP	ASSY FR SPLITTER - CFS	15AA515RP ASSY FR SPLITTER - CFS Row ID: ID__15AA515RP_ContPgHS;	-	1	Enquire
017	00RA372	BOLT - HEX HEAD - LOCK - M5X25 - 8.8	00RA372 BOLT - HEX HEAD - LOCK - M5X25 - 8.8 Row ID: ID__00RA372_ContPgHS;	-	-	Enquire
018	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 Row ID: ID__00RA410_ContPgHS;	-	-	Enquire
019	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	-	Enquire
024	15AA355RP	SCR-CAP HD-HX-M5X0.8X15-SS-00	15AA355RP SCR-CAP HD-HX-M5X0.8X15-SS-00 Row ID: ID__15AA355RP_ContPgHS;	-	-	Enquire
025	00RB017	CLIP - RAYMOND - 18.526.631	00RB017 CLIP - RAYMOND - 18.526.631 Row ID: ID__00RB017_ContPgHS;	-	-	Enquire
026	ZZTA037QP		ZZTA037QP M5X30 SHCS; Row ID: ID__ZZTA037QP_ContPgHS;	-	-	Enquire
027	00RA725	BLT-HX HD-FL-M5X0.8X25-8.8-84	00RA725 BLT-HX HD-FL-M5X0.8X25-8.8-84 Row ID: ID__00RA725_ContPgHS;	-	8	Enquire
029	00RC056	Washer - M5x12.5x1 Form C	00RC056 Washer - M5x12.5x1 Form C Row ID: ID__00RC056_ContPgHS;	-	-	Enquire
039	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	-	Enquire
041	15AC765CP	LICENCE PLATE FR - MOUNTING PLINTH - REST OF WORLD	15AC765CP LICENCE PLATE FR - MOUNTING PLINTH - REST OF WORLD Row ID: ID__15AC765CP_ContPgHS;	-	1	Enquire
042	15AC763CP	LICENCE PLATE - MOUNTING PLINTH - EU	15AC763CP LICENCE PLATE - MOUNTING PLINTH - EU Row ID: ID__15AC763CP_ContPgHS;	-	1	Enquire
043	15AC705CP	DUCT - LOW TEMPERATURE RADIATOR - OUTLET	15AC705CP DUCT - LOW TEMPERATURE RADIATOR - OUTLET Row ID: ID__15AC705CP_ContPgHS;	-	1	Enquire
043	15A0017CP	DUCT - LTR OUTLET	15A0017CP DUCT - LTR OUTLET Row ID: ID__15A0017CP_ContPgHS;	-	1	Enquire
045	15AA152RP	ASSY LTR INTAKE DUCT	15AA152RP ASSY LTR INTAKE DUCT Row ID: ID__15AA152RP_ContPgHS;	-	1	Enquire
045	15AC709CP	DUCT - LOW TEMPERATURE RADIATOR - INTAKE	15AC709CP DUCT - LOW TEMPERATURE RADIATOR - INTAKE Row ID: ID__15AC709CP_ContPgHS;	-	1	Enquire
045	15A0054CP	DUCT - LTR INTAKE	15A0054CP DUCT - LTR INTAKE Row ID: ID__15A0054CP_ContPgHS;	-	1	Enquire
064	15AA549RP	ASSY WIPER COVER PANEL-LHD - C	15AA549RP ASSY WIPER COVER PANEL-LHD - C Row ID: ID__15AA549RP_ContPgHS;	-	1	Enquire
064	15AA075RP	ASSY WIPER COVER PANEL - LHD - CFG	15AA075RP ASSY WIPER COVER PANEL - LHD - CFG Row ID: ID__15AA075RP_ContPgHS;	-	1	Enquire
064	15AD169CP	WIPER COVER - RHD	15AD169CP WIPER COVER - RHD Row ID: ID__15AD169CP_ContPgHS;	-	1	Enquire
064	15AD166CP	WIPER COVER - LHD	15AD166CP WIPER COVER - LHD Row ID: ID__15AD166CP_ContPgHS;	-	1	Enquire
