2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

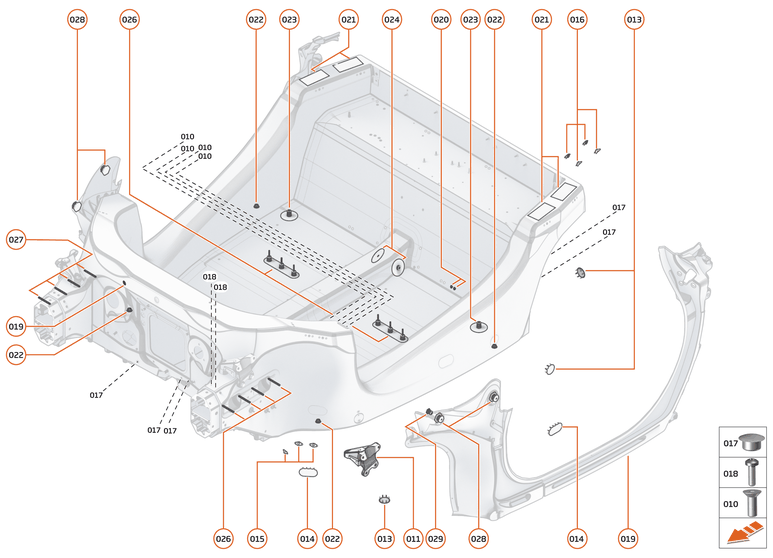

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket Row ID: ID__00RA311_ContPgHS;	-	8	Enquire
011	11A7143CP	BRACKET - DAMPER MOUNTING - RH	11A7143CP BRACKET - DAMPER MOUNTING - RH Row ID: ID__11A7143CP_ContPgHS;	-	1	Enquire
011	11A7142CP	BRACKET - DAMPER MOUNTING - LH	11A7142CP BRACKET - DAMPER MOUNTING - LH Row ID: ID__11A7142CP_ContPgHS;	-	1	Enquire
013	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	11A5734CP BLANKING PLUG - CIRCULAR - 42MM Row ID: ID__11A5734CP_ContPgHS;	-	6	Enquire
014	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM Row ID: ID__11A5735CP_ContPgHS;	-	4	Enquire
015	11A7572CP	NUT PLATE - A-POST - M8	11A7572CP NUT PLATE - A-POST - M8 Row ID: ID__11A7572CP_ContPgHS;	-	2	Enquire
016	11A7573CP	NUT PLATE - B-POST - M8	11A7573CP NUT PLATE - B-POST - M8 Row ID: ID__11A7573CP_ContPgHS;	-	6	Enquire
017	00RG023	GROMMET - CHILD ANCHORAGE BRACKET HOLES	00RG023 GROMMET - CHILD ANCHORAGE BRACKET HOLES Row ID: ID__00RG023_ContPgHS;	-	11	Enquire
018	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Row ID: ID__00RA522_ContPgHS;	-	2	Enquire
019	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE Row ID: ID__11A7484CP_ContPgHS;	-	1	Enquire
020	00RG064	COVER PLUG - M9 BLACK	00RG064 COVER PLUG - M9 BLACK Row ID: ID__00RG064_ContPgHS;	-	2	Enquire
021	15AD019CP	TUB - BLACK DECAL - 120MM X 62MM	15AD019CP TUB - BLACK DECAL - 120MM X 62MM Row ID: ID__15AD019CP_ContPgHS;	-	4	Enquire
022	11A5736CP	PLUG - TUB DATUM	11A5736CP PLUG - TUB DATUM Row ID: ID__11A5736CP_ContPgHS;	-	4	Enquire
023	12A3945RP	SEATBELT MOUNT TOPHAT FLOOR	12A3945RP SEATBELT MOUNT TOPHAT FLOOR Row ID: ID__12A3945RP_ContPgHS;	-	2	Enquire
024	12A3958RP	SEATBELT MOUNT TOPHAT TUNNEL	12A3958RP SEATBELT MOUNT TOPHAT TUNNEL Row ID: ID__12A3958RP_ContPgHS;	-	2	Enquire
025	15AA399RP	BUSH MTG SEATBELT ANTI-SUB	15AA399RP BUSH MTG SEATBELT ANTI-SUB Row ID: ID__15AA399RP_ContPgHS;	-	2	Enquire
026	ZZTA079QP	M8X45 UNBRAKO SHCS	ZZTA079QP M8X45 UNBRAKO SHCS Row ID: ID__ZZTA079QP_ContPgHS;	-	6	Enquire
027	A1BA121QP	STUD FTWB INBD M10	A1BA121QP STUD FTWB INBD M10 Row ID: ID__A1BA121QP_ContPgHS;	-	8	Enquire
028	14A1365CP		14A1365CP DOP INSERT; Row ID: ID__14A1365CP_ContPgHS;	-	-	Enquire
029	14A2258CP	GAS STRUT INSERT	14A2258CP GAS STRUT INSERT Row ID: ID__14A2258CP_ContPgHS;	-	-	Enquire
