6 - PANELS - 6.7 - REAR PANELS - CENTRE of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 6 - PANELS - 6.7 - REAR PANELS - CENTRE

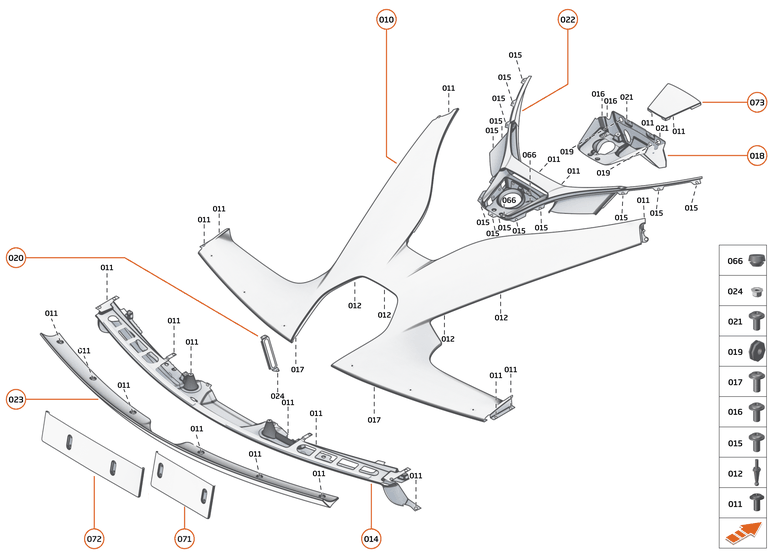

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AA081RP	ASSY RR DECK PNL	15AA081RP ASSY RR DECK PNL Row ID: ID__15AA081RP_ContPgHS;	-	1	Enquire
010	15AB080CP	ASSY - REAR DECK	15AB080CP ASSY - REAR DECK Row ID: ID__15AB080CP_ContPgHS;	-	1	Enquire
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	-	Enquire
012	00RA543	BALL STUD - REAR DECK	00RA543 BALL STUD - REAR DECK Row ID: ID__00RA543_ContPgHS;	-	-	Enquire
014	15AC965CP	BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON	15AC965CP BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON Row ID: ID__15AC965CP_ContPgHS;	-	1	Enquire
015	00RA408	BUTTON HD FLANGE - M4X8	00RA408 BUTTON HD FLANGE - M4X8 Row ID: ID__00RA408_ContPgHS;	-	13	Enquire
016	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	-	Enquire
017	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	-	Enquire
018	15AC772CP	SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP	15AC772CP SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP Row ID: ID__15AC772CP_ContPgHS;	-	1	Enquire
019	00RG035	REEVITE - 15.9X3.2X8X82X5.4	00RG035 REEVITE - 15.9X3.2X8X82X5.4 Row ID: ID__00RG035_ContPgHS;	-	2	Enquire
020	15AB778CP	BRACKET - HIGH MOUNT STOP LIGHT	15AB778CP BRACKET - HIGH MOUNT STOP LIGHT Row ID: ID__15AB778CP_ContPgHS;	-	1	Enquire
021	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	-	Enquire
022	15AC870CP	ASSY CHMSL HOUSING PANEL	15AC870CP ASSY CHMSL HOUSING PANEL Row ID: ID__15AC870CP_ContPgHS;	-	1	Enquire
022	15AC961CP	ASSY CHMSL HOUSING PANEL	15AC961CP ASSY CHMSL HOUSING PANEL Row ID: ID__15AC961CP_ContPgHS;	-	1	Enquire
023	15AA541RP	GURNEY-RR DECK - CFS	15AA541RP GURNEY-RR DECK - CFS Row ID: ID__15AA541RP_ContPgHS;	-	1	Enquire
023	15AA391RP	GURNEY-RR DECK - CFG	15AA391RP GURNEY-RR DECK - CFG Row ID: ID__15AA391RP_ContPgHS;	-	1	Enquire
024	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	1	Enquire
066	00RG049	GROM-BUMP ON-15X9.6-EPDM-BLK	00RG049 GROM-BUMP ON-15X9.6-EPDM-BLK Row ID: ID__00RG049_ContPgHS;	-	-	Enquire
071	15AC391CP	LICENCE PLATE RR - MOUNTING PLINTH - REST OF WORLD	15AC391CP LICENCE PLATE RR - MOUNTING PLINTH - REST OF WORLD Row ID: ID__15AC391CP_ContPgHS;	-	1	Enquire
072	15AC398CP	LICENCE PLATE - MOUNTING PLINTH - EU - GLOSS CARBON	15AC398CP LICENCE PLATE - MOUNTING PLINTH - EU - GLOSS CARBON Row ID: ID__15AC398CP_ContPgHS;	-	1	Enquire
073	15AC877CP	ASSY OIL FILLER FLAP - PAINTED	15AC877CP ASSY OIL FILLER FLAP - PAINTED Row ID: ID__15AC877CP_ContPgHS;	-	1	Enquire
073	15AC960CP	ASSY OIL FILLER FLAP	15AC960CP ASSY OIL FILLER FLAP Row ID: ID__15AC960CP_ContPgHS;	-	1	Enquire
074	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	2	Enquire
075	15AB095CP	PANEL - HIGH MOUNTED STOP LAMP	15AB095CP PANEL - HIGH MOUNTED STOP LAMP Row ID: ID__15AB095CP_ContPgHS;	-	1	Enquire
076	00RC113	SPACER - NYLON - 6.6X17.45X1.05	00RC113 SPACER - NYLON - 6.6X17.45X1.05 Row ID: ID__00RC113_ContPgHS;	-	6	Enquire
077	15AD187CP	REAR QUARTER PANEL - LH	15AD187CP REAR QUARTER PANEL - LH Row ID: ID__15AD187CP_ContPgHS;	-	1	Enquire
078	15AD188CP	REAR QUARTER PANEL - RH	15AD188CP REAR QUARTER PANEL - RH Row ID: ID__15AD188CP_ContPgHS;	-	1	Enquire
079	15AB512CP	EXTENTION - REAR BUMPER - LH - GLOSS CARBON	15AB512CP EXTENTION - REAR BUMPER - LH - GLOSS CARBON Row ID: ID__15AB512CP_ContPgHS;	-	1	Enquire
080	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	2	Enquire
081	15AB516CP	EXTENTION - REAR BUMPER - RH - GLOSS CARBON	15AB516CP EXTENTION - REAR BUMPER - RH - GLOSS CARBON Row ID: ID__15AB516CP_ContPgHS;	-	1	Enquire
082	15AB874CP	EXTENTION - REAR BUMPER - FEDERAL - LH - GLOSS CARBON	15AB874CP EXTENTION - REAR BUMPER - FEDERAL - LH - GLOSS CARBON Row ID: ID__15AB874CP_ContPgHS;	-	1	Enquire
083	15AB875CP	EXTENTION - REAR BUMPER - FEDERAL - RH - GLOSS CARBON	15AB875CP EXTENTION - REAR BUMPER - FEDERAL - RH - GLOSS CARBON Row ID: ID__15AB875CP_ContPgHS;	-	1	Enquire
084	00RA360	STUD BALL - M6X19	00RA360 STUD BALL - M6X19 Row ID: ID__00RA360_ContPgHS;	-	1	Enquire
085	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE Row ID: ID__00RB098_ContPgHS;	-	2	Enquire
086	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM Row ID: ID__00RB127_ContPgHS;	-	2	Enquire
087	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	1	Enquire
088	00RC016	WASHER - M6X12.5X1.8	00RC016 WASHER - M6X12.5X1.8 Row ID: ID__00RC016_ContPgHS;	-	1	Enquire
089	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	1	Enquire
090	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS;	-	1	Enquire
091	00RA565	BOLT - HEX HEAD - FLANGE - M6X12	00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Row ID: ID__00RA565_ContPgHS;	-	-	Enquire
