22 - Engine - 22.9 - Power Unit Assembly & Cylinder Block Hardware

McLaren Ultimate Series McLaren Senna

Find Your Part

McLaren Ultimate Series McLaren Senna - 22 - ENGINE - 22.9 - POWER UNIT ASSEMBLY & CYLINDER BLOCK HARDWARE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

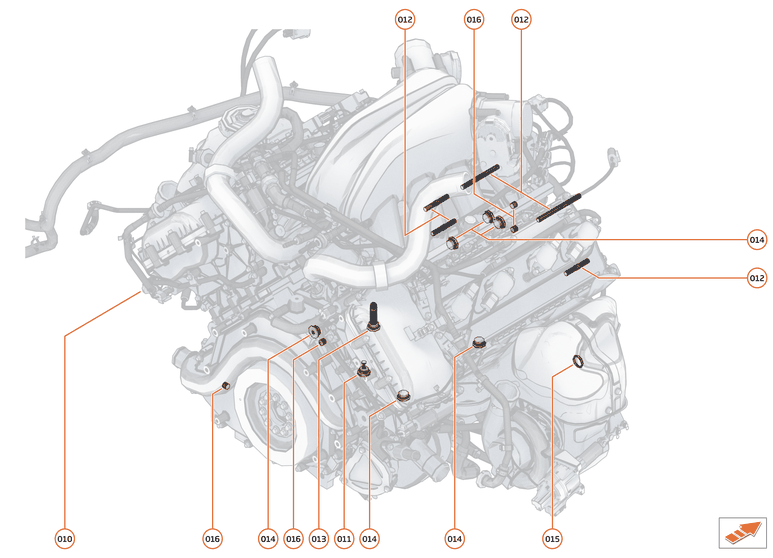

22 - ENGINE - 22.9 - POWER UNIT ASSEMBLY & CYLINDER BLOCK HARDWARE of McLaren McLaren Ultimate Series McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15FA327CP
ENGINE - V8 4.0L PP1 AC
Row ID: ID__15FA327CP_ContPgHS; 		- 1 Enquire
010 15FA328CP
ENGINE - 4.0 LITRE V8 TWIN TURBO - NO AC
Row ID: ID_EDBC0237_15FA328CP_ContPgHS; 		- 1 Enquire
011 11F1942CP
WASHER - LADDERFRAME - M18 - COPPER
Row ID: ID_EDBC0168_11F1942CP_ContPgHS; 		- 1 Enquire
012 14F0453CP
STUD - TRANSMISSION - 108MM
Row ID: ID_XXXXXXZV_14F0453CP_ContPgHS; 		- 5 Enquire
013 11F0800CP
Over Pressure - Oil Relief Valve - Engine - Assy
Row ID: ID_EDBC0279_11F0800CP_ContPgHS; 		- 1 Enquire
014 11F2209CP
CRANK TIMING PLUG - ENGINE - INC. O-RING
Row ID: ID_EDBC0166_11F2209CP_ContPgHS; 		- 7 Enquire
015 11F1018CP
Seal - Clutch Cooler Pipe Connection
Row ID: ID_EDBC0280_11F1018CP_ContPgHS; 		- 1 Enquire
016 11F2577CP
GRUB SCREW - OIL CHANNEL - ENGINE
Row ID: ID_EDBC0167_11F2577CP_ContPgHS; 		- 4 Enquire
017 11F1192CP
ENGINE LADDERFRAME COLD START OIL SEAL SOP
Row ID: ID__11F1192CP_ContPgHS; 		- 1 Enquire
017 11F1191CP
ENGINE LADDERFRAME WATER PASSAGE SEAL SOP
Row ID: ID__11F1191CP_ContPgHS; 		- 1 Enquire
