22 - ENGINE - 22.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 22 - ENGINE - 22.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

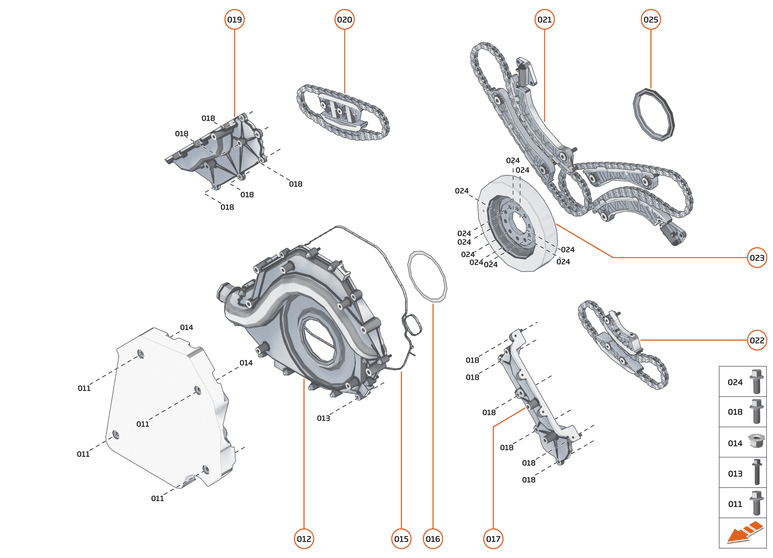

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID_XXXXXXZV_00RA120_ContPgHS;	-	4	Enquire
012	14F0851CP	FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL	14F0851CP FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL Row ID: ID_EDBC0266_14F0851CP_ContPgHS;	-	1	Enquire
013	11F1776CP	BOLT - M6X30 - HEX	11F1776CP BOLT - M6X30 - HEX Row ID: ID_XXXXXXZV_11F1776CP_ContPgHS;	-	1	Enquire
014	11F1904CP		11F1904CP NUT - M6; Row ID: ID_XXXXXXZV_11F1904CP_ContPgHS;	-	2	Enquire
015	11F1393CP	Seal - Engine - Front Cover Perimeter	11F1393CP Seal - Engine - Front Cover Perimeter Row ID: ID_EDBC0267_11F1393CP_ContPgHS;	-	1	Enquire
016	11F2579CP	FRONT CRANK SEAL IN STOCK	11F2579CP FRONT CRANK SEAL Row ID: ID_EDBC0104_11F2579CP_ContPgHS; IN STOCK	$101.53	1
017	11F0977CP	Cover - Cylinder Head Front - LH - Engine	11F0977CP Cover - Cylinder Head Front - LH - Engine Row ID: ID_EDBC0268_11F0977CP_ContPgHS;	-	1	Enquire
018	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID_XXXXXXZV_11F1793CP_ContPgHS;	-	12	Enquire
019	11F0978CP	Cover - Cylinder Head Front - RH - Engine	11F0978CP Cover - Cylinder Head Front - RH - Engine Row ID: ID_EDBC0269_11F0978CP_ContPgHS;	-	1	Enquire
020	11F0722CP	Chain Drive Kit - Engine - Oil Pump	11F0722CP Chain Drive Kit - Engine - Oil Pump Row ID: ID_EDBC0270_11F0722CP_ContPgHS;	-	1	Enquire
021	11F0723CP	Camshaft Drive Kit - Engine	11F0723CP Camshaft Drive Kit - Engine Row ID: ID_EDBC0271_11F0723CP_ContPgHS;	-	1	Enquire
022	11F0721CP	Chain Drive Kit - Engine - Water Pump	11F0721CP Chain Drive Kit - Engine - Water Pump Row ID: ID_EDBC0272_11F0721CP_ContPgHS;	-	1	Enquire
023	11F0708CP	ENGINE CRANKSHAFT 24MPER	11F0708CP ENGINE CRANKSHAFT 24MPER Row ID: ID_EDBC0273_11F0708CP_ContPgHS;	$589.00	1
024	11F0816CP	Bolt Set - M8x20 - Engine - Crankshaft Damper	11F0816CP Bolt Set - M8x20 - Engine - Crankshaft Damper Row ID: ID_EDBC0274_11F0816CP_ContPgHS;	-	1	Enquire
025	11F2344CP	SEAL - ENGINE CRANK - REAR	11F2344CP SEAL - ENGINE CRANK - REAR Row ID: ID_EDBC0109_11F2344CP_ContPgHS;	-	1	Enquire
