22 - ENGINE - 22.10 - ENGINE OIL PUMP & CIRCUIT of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 22 - ENGINE - 22.10 - ENGINE OIL PUMP & CIRCUIT

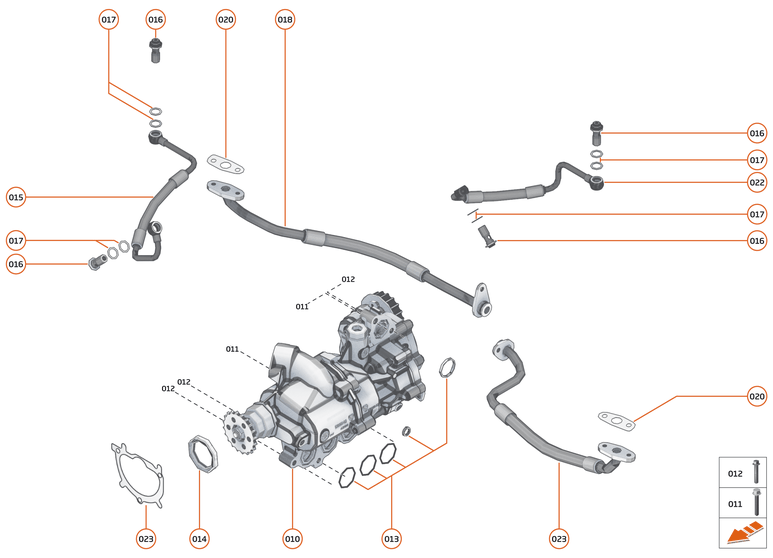

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14FA028RP	OIL PUMP - ENGINE	14FA028RP OIL PUMP - ENGINE Row ID: ID_EDBC0137_14FA028RP_ContPgHS;	-	1	Enquire
011	11F1926CP	BOLT - M8X40 - DIA HEAD	11F1926CP BOLT - M8X40 - DIA HEAD Row ID: ID_XXXXXXZV_11F1926CP_ContPgHS;	-	2	Enquire
012	11F1781CP	BOLT - M6X35 - ENGINE	11F1781CP BOLT - M6X35 - ENGINE Row ID: ID_XXXXXXZV_11F1781CP_ContPgHS;	-	3	Enquire
013	11F1030CP	Seal Kit - Oil Pump to Block - Engine	11F1030CP Seal Kit - Oil Pump to Block - Engine Row ID: ID_EDBC0281_11F1030CP_ContPgHS;	-	1	Enquire
014	11F0690CP	Seal - Engine Oil Pump	11F0690CP Seal - Engine Oil Pump Row ID: ID_EDBC0282_11F0690CP_ContPgHS;	-	1	Enquire
015	14F0542CP	HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH	14F0542CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH Row ID: ID_EDBC0136_14F0542CP_ContPgHS;	-	1	Enquire
016	13F0762CP	BOLT - HOLLOW - M12	13F0762CP BOLT - HOLLOW - M12 Row ID: ID_XXXXXXZV_13F0762CP_ContPgHS;	-	4	Enquire
017	12F0673CP	WASHER - SEAL - M12	12F0673CP WASHER - SEAL - M12 Row ID: ID_EDBC0283_12F0673CP_ContPgHS;	-	8	Enquire
018	14F0828CP	HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH	14F0828CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH Row ID: ID_EDBC0139_14F0828CP_ContPgHS;	-	1	Enquire
020	13F0825CP	GASKET - PIPE - TURBO OIL DRAIN	13F0825CP GASKET - PIPE - TURBO OIL DRAIN Row ID: ID_EDBC0132_13F0825CP_ContPgHS;	-	2	Enquire
022	14F0540CP	HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH	14F0540CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH Row ID: ID_EDBC0133_14F0540CP_ContPgHS;	-	1	Enquire
023	14F0827CP	HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH	14F0827CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH Row ID: ID_EDBC0138_14F0827CP_ContPgHS;	-	1	Enquire
024	13F0828CP	ASSY PIPE STUB TURBOCHARGER WATER FEED - RH	13F0828CP ASSY PIPE STUB TURBOCHARGER WATER FEED - RH Row ID: ID__13F0828CP_ContPgHS;	-	1	Enquire
025	13F0829CP	ASSY PIPE STUB TURBO WTR FEED LH	13F0829CP ASSY PIPE STUB TURBO WTR FEED LH Row ID: ID__13F0829CP_ContPgHS;	-	1	Enquire
