22 - ENGINE - 22.6 - FUEL RAIL & INJECTORS of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 22 - ENGINE - 22.6 - FUEL RAIL & INJECTORS

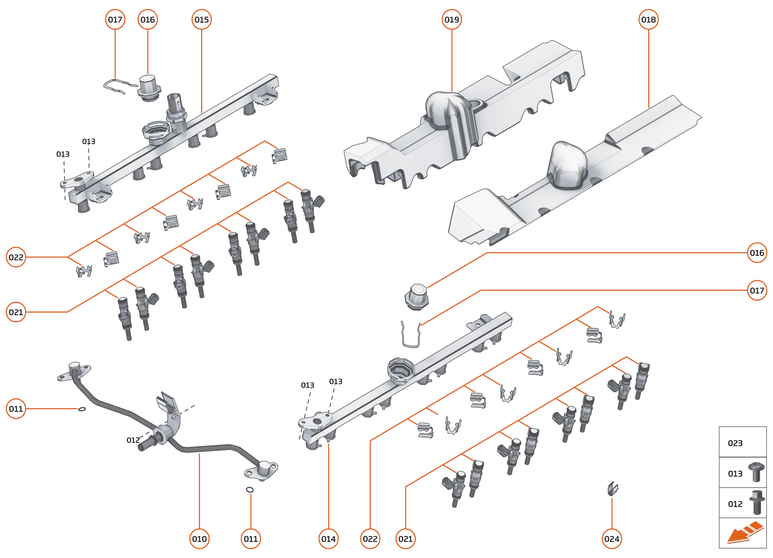

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14F0002CP	LINK PIPE - FUEL RAIL - INC. O-RINGS	14F0002CP LINK PIPE - FUEL RAIL - INC. O-RINGS Row ID: ID_EDBC0195_14F0002CP_ContPgHS;	-	1	Enquire
011	14F0625CP	SEAL - O-RING - 7.8X1.9	14F0625CP SEAL - O-RING - 7.8X1.9 Row ID: ID_EDBC0196_14F0625CP_ContPgHS;	-	2	Enquire
012	11F1787CP	BOLT - M6X12 - HEX	11F1787CP BOLT - M6X12 - HEX Row ID: ID_XXXXXXZV_11F1787CP_ContPgHS;	-	1	Enquire
013	14F0737CP	SCREW - TORX - M6X10	14F0737CP SCREW - TORX - M6X10 Row ID: ID_EDBC0197_14F0737CP_ContPgHS;	-	4	Enquire
014	14FA006CP	FUEL RAIL - LH	14FA006CP FUEL RAIL - LH Row ID: ID_EDBC0200_14FA006CP_ContPgHS;	-	1	Enquire
015	14FA007CP	FUEL RAIL - RH	14FA007CP FUEL RAIL - RH Row ID: ID_EDBC0201_14FA007CP_ContPgHS;	-	1	Enquire
016	15FA161CP	PIPE - WATER RETURN - LH - 01948991-3	15FA161CP PIPE - WATER RETURN - LH - 01948991-3 Row ID: ID_EDBC0203_15FA161CP_ContPgHS;	-	2	Enquire
017	14FA038CP	CLIP - FUEL RAIL DAMPER	14FA038CP CLIP - FUEL RAIL DAMPER Row ID: ID_EDBC0202_14FA038CP_ContPgHS;	-	2	Enquire
018	14F0842CP	NVH - FUEL RAIL - LH	14F0842CP NVH - FUEL RAIL - LH Row ID: ID_EEBJ0101_14F0842CP_ContPgHS;	-	1	Enquire
019	14F0843CP	NVH - FUEL RAIL - RH	14F0843CP NVH - FUEL RAIL - RH Row ID: ID_EEBJ0102_14F0843CP_ContPgHS;	-	1	Enquire
021	14F0137CP	INJECTOR - ENGINE FUEL RAIL	14F0137CP INJECTOR - ENGINE FUEL RAIL Row ID: ID_EDBC0198_14F0137CP_ContPgHS;	-	16	Enquire
022	14F0400CP	CLIP - INJECTOR	14F0400CP CLIP - INJECTOR Row ID: ID_EDBC0199_14F0400CP_ContPgHS;	-	16	Enquire
023	14FA003CP	ASSY FUEL RAIL	14FA003CP ASSY FUEL RAIL Row ID: ID__14FA003CP_ContPgHS;	-	1	Enquire
024	11F2029CP	CLIP - RAYMOND - 2WAY - 13493	11F2029CP CLIP - RAYMOND - 2WAY - 13493 Row ID: ID__11F2029CP_ContPgHS;	-	1	Enquire
