McLaren Ultimate Series McLaren Senna - 39 - ELECTRICAL HARDWARE - 39.2 - BRACKETS, GROMMETS & FIXINGS

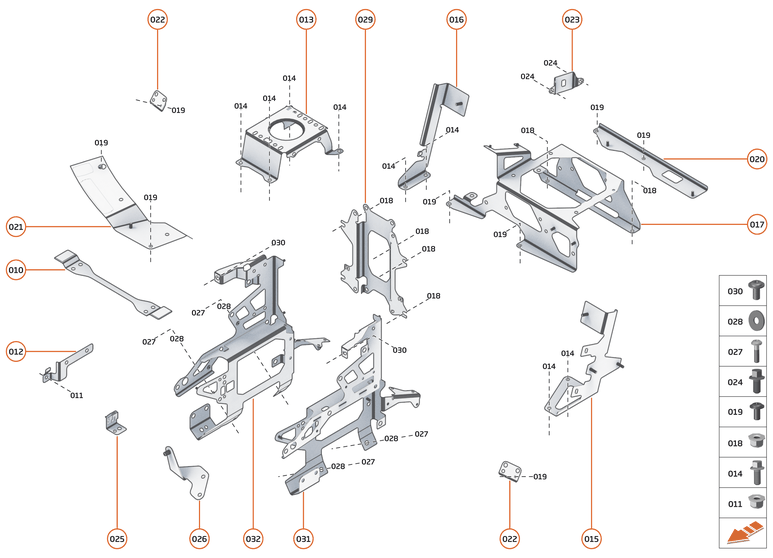

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14M1087CP	BRACKET - CROSS CAR HARNESS	14M1087CP BRACKET - CROSS CAR HARNESS Row ID: ID_EGCH0201_14M1087CP_ContPgHS;	-	1	Enquire
011	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID_XXXXXXZV_00RA555_ContPgHS;	-	1	Enquire
012	14M1080CP	BRACKET - WIRING HARNESS - FRONT	14M1080CP BRACKET - WIRING HARNESS - FRONT Row ID: ID_EGCH0202_14M1080CP_ContPgHS;	-	1	Enquire
013	15MA164CP	BRACKET - HARNESS CARRIER - REAR	15MA164CP BRACKET - HARNESS CARRIER - REAR Row ID: ID_EGCH0203_15MA164CP_ContPgHS;	-	1	Enquire
014	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_XXXXXXZV_00RA064_ContPgHS;	-	8	Enquire
015	15MA169CP	BRACKET - HARNESS CARRIER - REAR	15MA169CP BRACKET - HARNESS CARRIER - REAR Row ID: ID_EGCH0204_15MA169CP_ContPgHS;	-	1	Enquire
016	15MA171CP	BRACKET - INTERIOR FUSEBOX - RH	15MA171CP BRACKET - INTERIOR FUSEBOX - RH Row ID: ID_EGCH0205_15MA171CP_ContPgHS;	-	1	Enquire
017	15MA173CP	BRACKET - INFOTAINMENT CONTROL UNIT - HIGH LINE	15MA173CP BRACKET - INFOTAINMENT CONTROL UNIT - HIGH LINE Row ID: ID_EGCH0206_15MA173CP_ContPgHS;	-	1	Enquire
018	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID_XXXXXXZV_00RA582_ContPgHS;	-	6	Enquire
019	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID_XXXXXXZV_00RA432_ContPgHS;	-	8	Enquire
020	15MA175CP	ADAPTOR PLATE	15MA175CP ADAPTOR PLATE Row ID: ID_EGCH0207_15MA175CP_ContPgHS;	-	1	Enquire
021	15MA208CP	BRACKET - ANTENNA - RHD	15MA208CP BRACKET - ANTENNA - RHD Row ID: ID_EGCH0209_15MA208CP_ContPgHS;	-	1	Enquire
021	15MA206CP	BRACKET - ANTENNA - LHD	15MA206CP BRACKET - ANTENNA - LHD Row ID: ID_EGCH0208_15MA206CP_ContPgHS;	-	1	Enquire
022	15MA538CP	BRACKET - DOOR INLINE	15MA538CP BRACKET - DOOR INLINE Row ID: ID_EGCH0210_15MA538CP_ContPgHS;	-	2	Enquire
023	15MA328CP	BRACKET - ENGINE INLINE	15MA328CP BRACKET - ENGINE INLINE Row ID: ID_EGCH0211_15MA328CP_ContPgHS;	-	1	Enquire
024	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID_XXXXXXZV_00RX003_ContPgHS;	-	2	Enquire
025	15MA444CP	BRACKET - WIPER CONNECTOR	15MA444CP BRACKET - WIPER CONNECTOR Row ID: ID_EGCH0212_15MA444CP_ContPgHS;	-	25	Enquire
026	15MA443CP	BRACKET - MAINBODY HARNESS	15MA443CP BRACKET - MAINBODY HARNESS Row ID: ID_EGCH0213_15MA443CP_ContPgHS;	-	1	Enquire
027	00RA521	SCREW - BUTTON HEAD - HEX - M5X16-10.9-86	00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Row ID: ID_XXXXXXZV_00RA521_ContPgHS;	-	4	Enquire
028	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID_XXXXXXZW_00RC017_ContPgHS;	-	4	Enquire
029	14MA129CP	BRACKET - DISPLAY CONTROL UNIT - CENTRE	14MA129CP BRACKET - DISPLAY CONTROL UNIT - CENTRE Row ID: ID_EGCH0214_14MA129CP_ContPgHS;	-	1	Enquire
030	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID_XXXXXXZV_00RA468_ContPgHS;	-	2	Enquire
031	15MA467CP	BRACKET - DISPLAY ECU - LH	15MA467CP BRACKET - DISPLAY ECU - LH Row ID: ID_EGCH0215_15MA467CP_ContPgHS;	-	1	Enquire
032	15MA468CP	BRACKET - DISPLAY ECU - RH	15MA468CP BRACKET - DISPLAY ECU - RH Row ID: ID_EGCH0216_15MA468CP_ContPgHS;	-	1	Enquire
