38 - ELECTRICAL SYSTEMS - 38.1 - INTERIOR SWITCHES of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 38 - ELECTRICAL SYSTEMS - 38.1 - INTERIOR SWITCHES

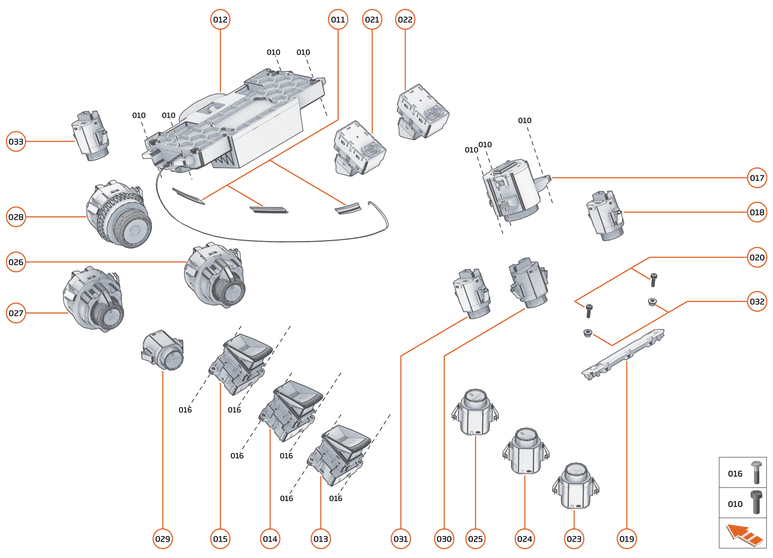

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA140	SCREW - 3X8 - TORX	00RA140 SCREW - 3X8 - TORX Row ID: ID_XXXXXXZV_00RA140_ContPgHS;	-	7	Enquire
011	14M1230CP	TAPE - DUPLOCOLL - 17X30	14M1230CP TAPE - DUPLOCOLL - 17X30 Row ID: ID_EGCF0101_14M1230CP_ContPgHS;	-	3	Enquire
012	15MA131CP	CONTROL UNIT - ROOF	15MA131CP CONTROL UNIT - ROOF Row ID: ID_EGCF0102_15MA131CP_ContPgHS;	-	1	Enquire
013	14MA377CP	SWITCH - REVERSE	14MA377CP SWITCH - REVERSE Row ID: ID_EGCF0103_14MA377CP_ContPgHS;	-	1	Enquire
014	14MA378CP	SWITCH - DRIVE	14MA378CP SWITCH - DRIVE Row ID: ID_EGCF0104_14MA378CP_ContPgHS;	-	1	Enquire
015	14MA379CP	SWITCH - NEUTRAL	14MA379CP SWITCH - NEUTRAL Row ID: ID_EGCF0105_14MA379CP_ContPgHS;	-	1	Enquire
016	00RA615	SCREW - TORX - 3.5X12	00RA615 SCREW - TORX - 3.5X12 Row ID: ID_XXXXXXZV_00RA615_ContPgHS;	-	6	Enquire
017	14MA399CP	BUTTON - ENGINE START/STOP	14MA399CP BUTTON - ENGINE START/STOP Row ID: ID_EGCF0106_14MA399CP_ContPgHS;	-	1	Enquire
018	14MA392CP	SWITCH - LOCK - UNLOCK	14MA392CP SWITCH - LOCK - UNLOCK Row ID: ID_EGCF0107_14MA392CP_ContPgHS;	-	1	Enquire
019	15MA129CP	MODULE - PASSENGER AIRBAG OFF	15MA129CP MODULE - PASSENGER AIRBAG OFF Row ID: ID_EGCF0108_15MA129CP_ContPgHS;	-	1	Enquire
020	00RA296	SCREW-EJOT ALTRAC-WN5152-M3x10	00RA296 SCREW-EJOT ALTRAC-WN5152-M3x10 Row ID: ID_XXXXXXZV_00RA296_ContPgHS;	-	2	Enquire
021	15MA274CP	SWITCH - WINDOW LEFT	15MA274CP SWITCH - WINDOW LEFT Row ID: ID_EGCF0109_15MA274CP_ContPgHS;	-	1	Enquire
022	15MA275CP	SWITCH - WINDOW RIGHT	15MA275CP SWITCH - WINDOW RIGHT Row ID: ID_EGCF0110_15MA275CP_ContPgHS;	-	1	Enquire
023	14MA380CP	SWITCH - HAZARD LIGHTS - LHD	14MA380CP SWITCH - HAZARD LIGHTS - LHD Row ID: ID_EGCF0111_14MA380CP_ContPgHS;	-	1	Enquire
024	14MA381CP	SWITCH - STOP-START - DEACTIVATION - LHD	14MA381CP SWITCH - STOP-START - DEACTIVATION - LHD Row ID: ID_EGCF0112_14MA381CP_ContPgHS;	-	1	Enquire
025	14MA382CP	SWITCH - LAUNCH CONTROL - LHD	14MA382CP SWITCH - LAUNCH CONTROL - LHD Row ID: ID_EGCF0113_14MA382CP_ContPgHS;	-	1	Enquire
026	14MA389CP	SWITCH - POWERTRAIN DYNAMICS	14MA389CP SWITCH - POWERTRAIN DYNAMICS Row ID: ID_EGCF0114_14MA389CP_ContPgHS;	-	1	Enquire
027	14MA390CP	SWITCH - HANDLING DYNAMICS	14MA390CP SWITCH - HANDLING DYNAMICS Row ID: ID_EGCF0115_14MA390CP_ContPgHS;	-	1	Enquire
028	15MA117CP	BUTTON - VOLUME - HOME	15MA117CP BUTTON - VOLUME - HOME Row ID: ID_EGCF0116_15MA117CP_ContPgHS;	-	1	Enquire
029	14MA400CP	SWITCH - ACTIVE	14MA400CP SWITCH - ACTIVE Row ID: ID_EGCF0117_14MA400CP_ContPgHS;	-	1	Enquire
030	15MA126CP	SWITCH - RACE	15MA126CP SWITCH - RACE Row ID: ID_EGCF0118_15MA126CP_ContPgHS;	-	1	Enquire
031	15MA259CP	SWITCH - HVAC	15MA259CP SWITCH - HVAC Row ID: ID_EGCF0119_15MA259CP_ContPgHS;	-	1	Enquire
032	00RA636	NUT - M3X0.5 - FLANGE HEX	00RA636 NUT - M3X0.5 - FLANGE HEX Row ID: ID_XXXXXXZV_00RA636_ContPgHS;	-	2	Enquire
033	15MA278CP	SWITCH - ANTI TOW	15MA278CP SWITCH - ANTI TOW Row ID: ID_EGCF0120_15MA278CP_ContPgHS;	-	1	Enquire
