McLaren Ultimate Series McLaren Senna - 37 - WIRING HARNESS - 37.1 - POWER AND GROUND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

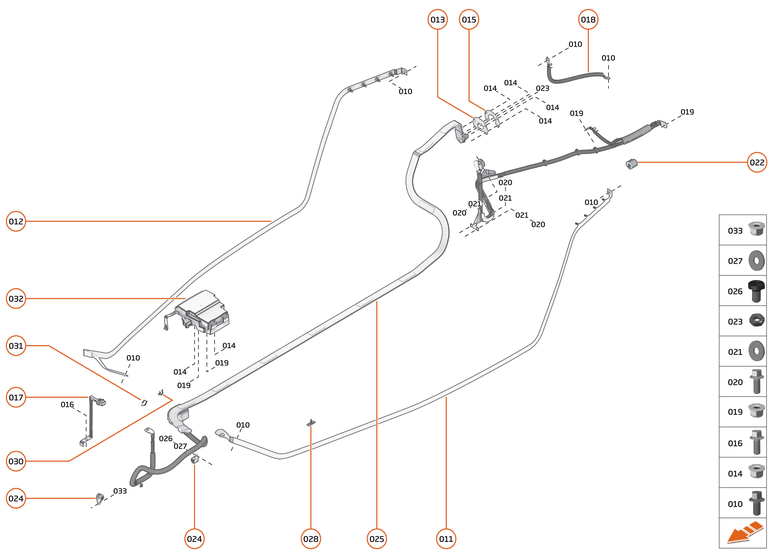

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Row ID: ID_XXXXXXZV_00RA344_ContPgHS;	-	6	Enquire
011	11M2412CP	WIRING HARNESS GND24OOP-LH	11M2412CP WIRING HARNESS GND24OOP-LH Row ID: ID_EGCE0101_11M2412CP_ContPgHS;	$908.85	1
012	11M2413CP	WIRING HARNESS GND24OOP-RH	11M2413CP WIRING HARNESS GND24OOP-RH Row ID: ID_EGCE0102_11M2413CP_ContPgHS;	$908.85	1
013	11M0743CP	BUSBAR RETENTION PLATE	11M0743CP BUSBAR RETENTION PLATE Row ID: ID_EGCE0103_11M0743CP_ContPgHS;	-	1	Enquire
014	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID_XXXXXXZV_00RA555_ContPgHS;	-	6	Enquire
015	11M0779CP	BUSBAR RETENTION PLATE AFT - REAR	11M0779CP BUSBAR RETENTION PLATE AFT - REAR Row ID: ID_EGCE0104_11M0779CP_ContPgHS;	-	1	Enquire
016	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID_XXXXXXZV_00RA002_ContPgHS;	-	1	Enquire
017	11M0227CP	BATTERY CABLE - NEGATIVE	11M0227CP BATTERY CABLE - NEGATIVE Row ID: ID_EGCE0105_11M0227CP_ContPgHS;	-	1	Enquire
018	13MA183CP	ENGINE GROUND STRAP	13MA183CP ENGINE GROUND STRAP Row ID: ID_EGCE0106_13MA183CP_ContPgHS;	-	1	Enquire
019	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID_XXXXXXZV_00RA075_ContPgHS;	-	4	Enquire
020	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_XXXXXXZV_00RA313_ContPgHS;	-	3	Enquire
021	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID_XXXXXXZW_00RC013_ContPgHS;	-	3	Enquire
022	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID_XXXXXXZY_00RA367_ContPgHS;	-	1	Enquire
023	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439 Row ID: ID_XXXXXXZV_00RA262_ContPgHS;	-	1	Enquire
024	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20 Row ID: ID_XXXXXXZZ_00RB060_ContPgHS;	-	2	Enquire
025	11M1124CP	BUSBAR - RHD 24	11M1124CP BUSBAR - RHD 24 Row ID: ID_EGCE0110_11M1124CP_ContPgHS;	$1,609.31	1
025	11M0926CP	BUSBAR - LHD	11M0926CP BUSBAR - LHD Row ID: ID_EGCE0107_11M0926CP_ContPgHS;	-	1	Enquire
026	00RA602	BOLT - M6X1X10 - TORX	00RA602 BOLT - M6X1X10 - TORX Row ID: ID_XXXXXXZV_00RA602_ContPgHS;	-	1	Enquire
027	00RC008	WASHER - M6X12.5X0.9	00RC008 WASHER - M6X12.5X0.9 Row ID: ID_XXXXXXZW_00RC008_ContPgHS;	-	1	Enquire
028	00RA393	STUD - T38 - M6X16	00RA393 STUD - T38 - M6X16 Row ID: ID_XXXXXXZV_00RA393_ContPgHS;	-	1	Enquire
030	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID_XXXXXXZZ_00RB032_ContPgHS;	-	2	Enquire
031	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID_XXXXXXZZ_00RB008_ContPgHS;	-	2	Enquire
032	14MA024CP	FUSEBOX - BATTERY - FRONT	14MA024CP FUSEBOX - BATTERY - FRONT Row ID: ID_EGCE0111_14MA024CP_ContPgHS;	-	1	Enquire
033	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID_XXXXXXZV_00RA011_ContPgHS;	-	1	Enquire
